Product Description
- The compressor is suitable for generating and supplying compressed air in mobile and stationary compressed air systems, particularly in automotive engineering, industrial and material handling technology, and in technical installations.
- Modern 48V systems are becoming increasingly widespread, even outside the automotive sector. The advantages – such as more economical cable sizing, lower line resistance, etc. – are obvious.

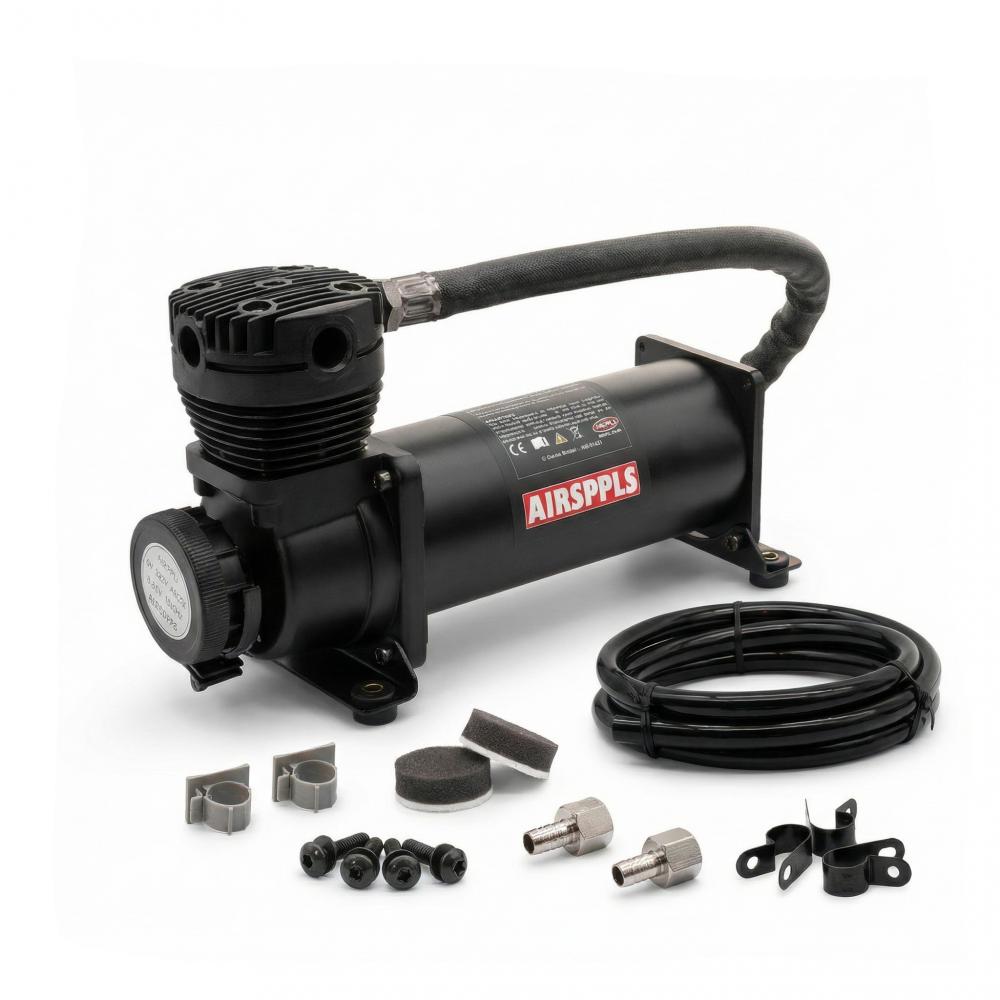

- The AIRSPPLS 480C+ compressor is an electrically powered 48 V piston compressor designed for mobile or stationary compressed air generation.
- It achieves a maximum operating pressure of approx. 13.8 bar and delivers an air flow rate of approx. 72 l/min (2.54 cfm) at 0 bar.
- The compressor features a 3/8" male threaded connection with a tapered steel braided hose, operates at 48 V DC with a maximum current of only approx. 9 amps, and has an IP67 protection rating.
- With a 100% duty cycle at approx. 7 bar and dimensions of 270 × 102 × 175 mm, weighing 4.4 kg, it is suitable for demanding compressed air applications.
- Accessories supplied: pressed-in basic vibration isolators (rubber), fixing materials, robust ¼” non-return valve, steel flexible hose with PTFE inner liner, air hose for flexible filter positioning, air filter housing with additional bracket, 2x replacement air filter inserts
- Material (motor, housing, filter, hose) – steel (cast), copper, plastic, rubber, permanent magnet
- Max. operating pressure – approx. 13.8 bar
- Fitting connection – 3/8” external thread, tapered
- Duty cycle S3 – 100% at approx. 7 bar
- Max. current / operating voltage – 9 amps | IP67 / 48V DC
- Protection class – IP67
- Air flow rate at 0 bar (13.8 V) – 72 l/min, 2.54 cfm
- Dimensions [L x W x H] – 270 x 102 x 175 mm
- Weight – 4.4 kg
