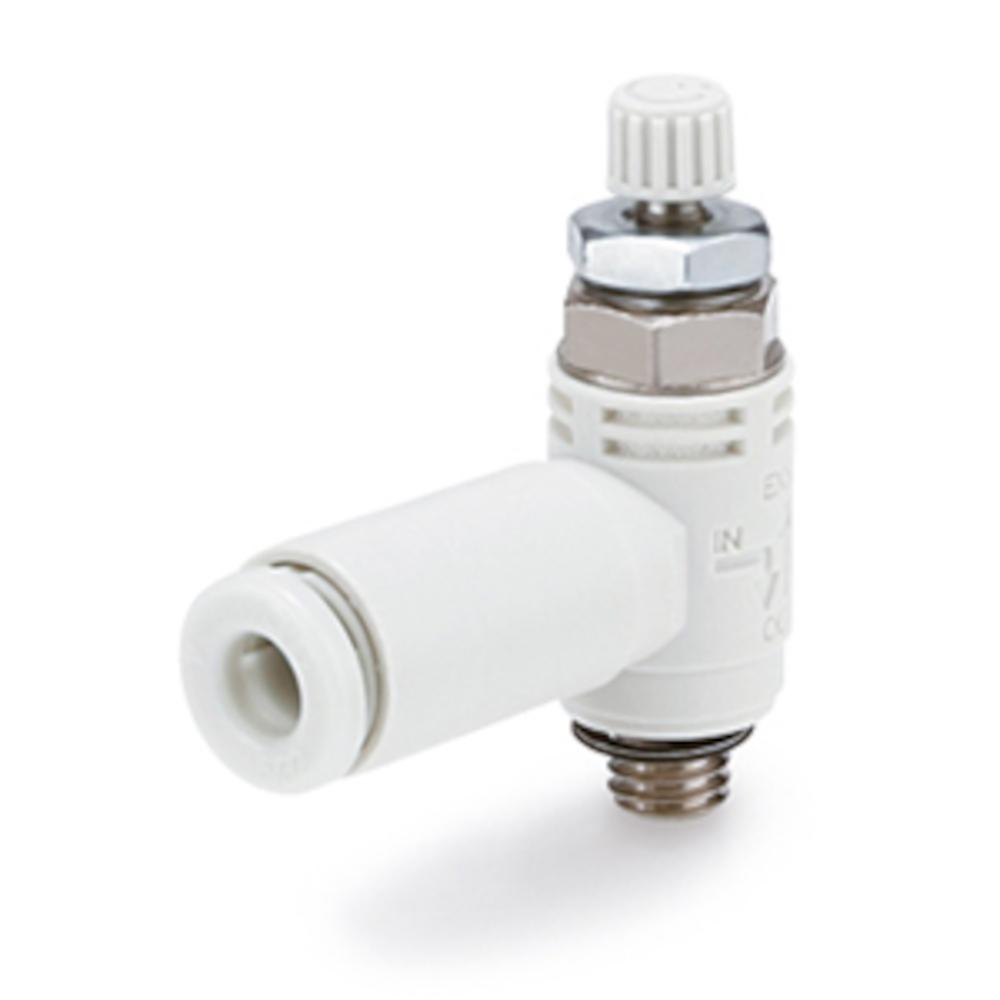

ASV10 quick exhaust throttle valve – PBT – hose outer diameter 6 to 12 mm – R 1/8" to R 1/2" – price per piece
| From € 37,97 |
| Price incl. VAT |
| plus € 29,00 shipping costs |
Do you have any questions?
We would like to assist you!
We would like to assist you!
Product Description
- The ASV throttle quick exhaust valve is used for combined exhaust throttling and quick exhausting of pneumatic cylinders.
- It is suitable for systems with high requirements in terms of reaction speed and precise motion control.
- Typical areas of application are automation technology, packaging machines and assembly systems.
- The ASV throttle quick exhaust valve combines an adjustable throttle function with integrated quick exhaust in a compact housing.
- It has a pressure-lockable adjustment needle and enables precise control of the venting volume.
- The materials include chemically nickel-plated brass and durable plastics for use in industrial environments.
- Housing material – PBT
- Material ring – chromated aluminium
- Material Adjustment needle, needle guide 1 – aluminium, chemically nickel-plated
- Material of rotary knob needle guide 2 – brass, chemically nickel-plated
- Valve material – urethane rubber
- Seal material, O-ring – NBR
- Silencer material – PVA foam
- Material splash guard – flame-retardant CR, UL94V-0
- Test pressure – 1.5 MPa
- Max. operating pressure - 1 MPa
- Min. operating pressure - 0.1 MPa
- Ambient and media temperature - -5°C to 60°C (not frozen)
- Hose material – nylon, soft nylon, PUR
- Connection thread - R 1/8" to 1/2"
- Hose outer diameter – 6 to 12 mm
- Height – 35.3 to 59.9 mm
- Length - 63.9 to 87.8 mm
- Width – 17.6 to 30 mm
- Weight - 22 to 100 g
- Price per unit
Versions: (8)
Item No.: 202800002044
Type
| Connection thread | R 1/8" |
| Hose outer diameter | 6 mm |
| Part no. | 00002040 |
| Type | ASV310F-01-06S |
Item No.: 202800002045
Type
| Connection thread | R 1/8" |
| Hose outer diameter | 8 mm |
| Part no. | 00002044 |
| Type | ASV310F-01-08S |
Item No.: 202800002046
Type
| Connection thread | R 1/4" |
| Hose outer diameter | 8 mm |
| Part no. | 00002056 |
| Type | ASV410F-02-08S |
Item No.: 202800002047
Type
| Connection thread | R 1/4" |
| Hose outer diameter | 10 mm |
| Part no. | 00002060 |
| Type | ASV410F-02-10S |
Item No.: 202800002048
Type
| Connection thread | R 3/8" |
| Hose outer diameter | 10 mm |
| Part no. | 00002070 |
| Type | ASV510F-03-10S |
Item No.: 202800002049
Type
| Connection thread | R 3/8" |
| Hose outer diameter | 12 mm |
| Part no. | 00002074 |
| Type | ASV510F-03-12S |
Item No.: 202800002050
Type
| Connection thread | R 1/2" |
| Hose outer diameter | 10 mm |
| Part no. | 00002076 |
| Type | ASV510F-04-10S |
Item No.: 202800002051
Type
| Connection thread | R 1/2" |
| Hose outer diameter | 12 mm |
| Part no. | 00002078 |
| Type | ASV510F-04-12S |
