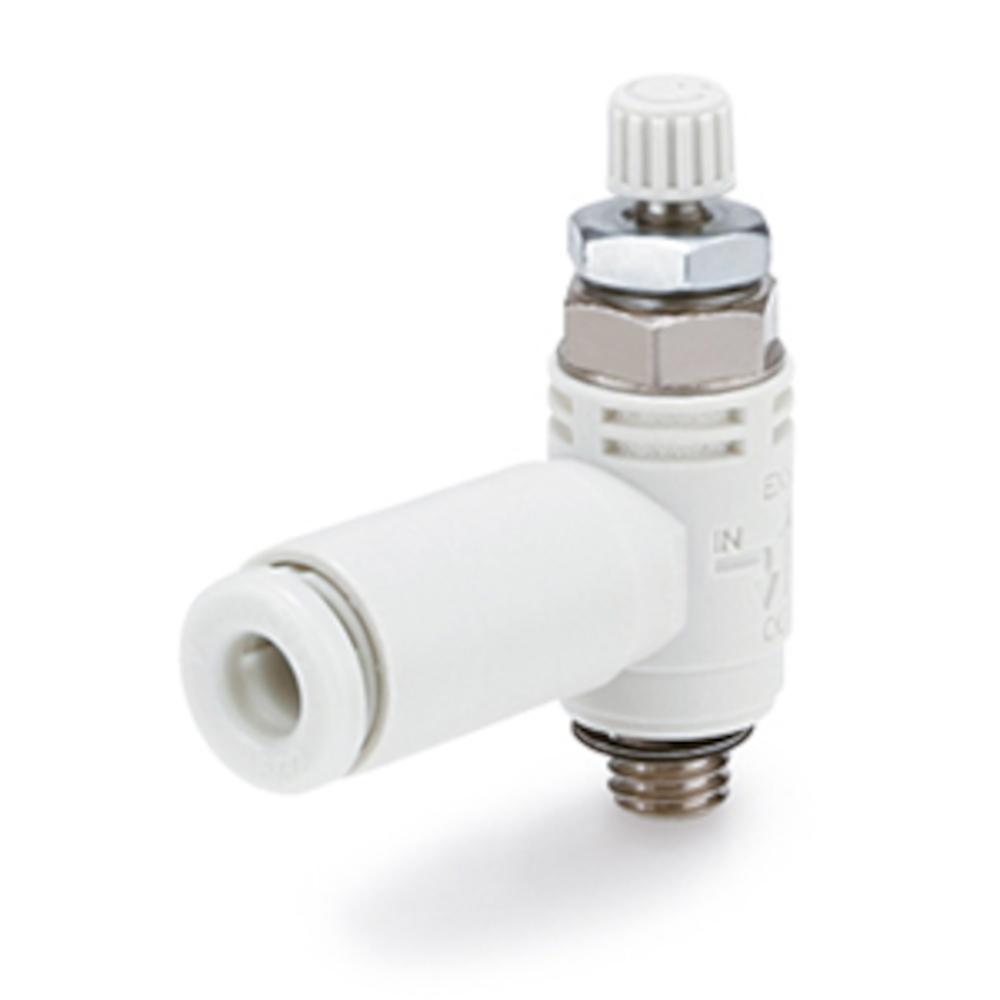

ASV20 quick exhaust throttle valve – PBT/brass – hose outer diameter 4 or 6 mm – M3 or M5 – price per unit
| From € 52,50 |
| Price incl. VAT |
| plus € 29,00 shipping costs |
Do you have any questions?
We would like to assist you!
We would like to assist you!
Product Description
- The ASV throttle quick exhaust valve is used for combined exhaust throttling and quick exhausting of pneumatic cylinders.
- It is suitable for systems with high requirements in terms of reaction speed and precise motion control.
- Typical areas of application are automation technology, packaging machines and assembly systems.
- The ASV throttle quick exhaust valve combines an adjustable throttle function with integrated quick exhaust in a compact housing.
- It has a pressure-lockable adjustment needle and enables precise control of the venting volume.
- The materials include chemically nickel-plated brass and durable plastics for use in industrial environments.
- Housing material A - PBT
- Material of rotary knob – nickel-plated brass (for M3 thread), PBT (for M5 thread)
- Housing material B – stainless steel (for M3 thread), nickel-plated brass (for M5 thread)
- Material Ring, adjustment needle, needle guide – brass, chemically nickel-plated
- Silencer material – PVA foam
- Valve material – HNBR
- Seal and O-ring material – NBR
- Spacer material – POM
- Test pressure – 1.5 MPa
- Max. operating pressure - 1 MPa
- Min. operating pressure - 0.1 MPa
- Ambient and media temperature - -5°C to 60°C (not frozen)
- Hose material – nylon, soft nylon, PUR
- Connection thread – M3 or M5
- Hose outer diameter – 4 or 6 mm
- Height – 26.1 to 31.4 mm
- Width – 25 to 28.4 mm
- Depth – 7.2 or 9.6 mm
- Weight - 5 to 9 g
- Price per unit
Versions: (3)
| Article No. | Connection thread | Hose outer diameter | Part no. | Type | Price incl. VAT | |||||
|---|---|---|---|---|---|---|---|---|---|---|
|
202800002034 | M3 x 0.5 | 4 mm | 00002034 | ASV120F-M3-04 |
|
||||
|
||||||||||
|
202800002035 | M5 x 0.8 | 4 mm | 00002036 | ASV220F-M5-04 |
|
||||
|
||||||||||
|
202800002036 | M5 x 0.8 | 6 mm | 00002038 | ASV220F-M5-06 |
|
||||
|
||||||||||
