Item No.:
351001005172
Product Description

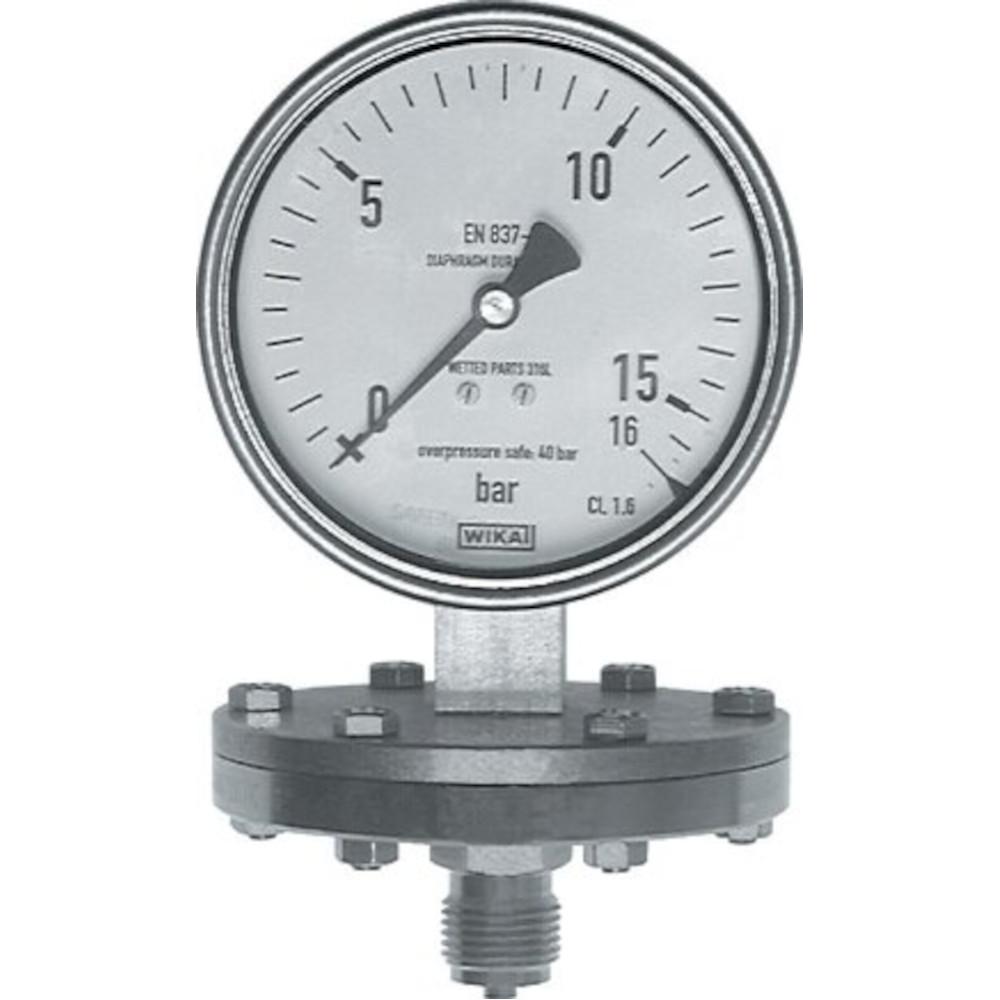

- Diaphragm pressure gauges for use with gaseous, liquid, viscous and aggressive media where the medium must not come into contact with the measuring mechanism.
- A diaphragm separates the medium from the measuring mechanism, so that the medium only acts on the diaphragm.
- Display range - 0 - 16 bar
- Scale division - 0.5 bar
- Overpressure-proof – 0–40 bar
- Measuring element / diaphragm – Inconel (
- Dial mechanism – 1.4571
- Housing with upper measuring flange – 1.4571
- Seal - FKM
- Viewing window – multi-layer safety glass
- Connection thread - G 1/2" (with centring pin for profile sealing ring)
- Measuring flange diameter – 100 mm
- Overload capacity – 5 x scale value (max. 40 bar), falling below the lower measured value is not permitted
- Class - 1.6
- Temperature range – ambient: -20 to +60 °C, measured medium: -20 to +100 °C
- Protection class - IP 54
- WIKA Type 432.50
- Weight - 1.7 kg
- Price per item
