Product Description

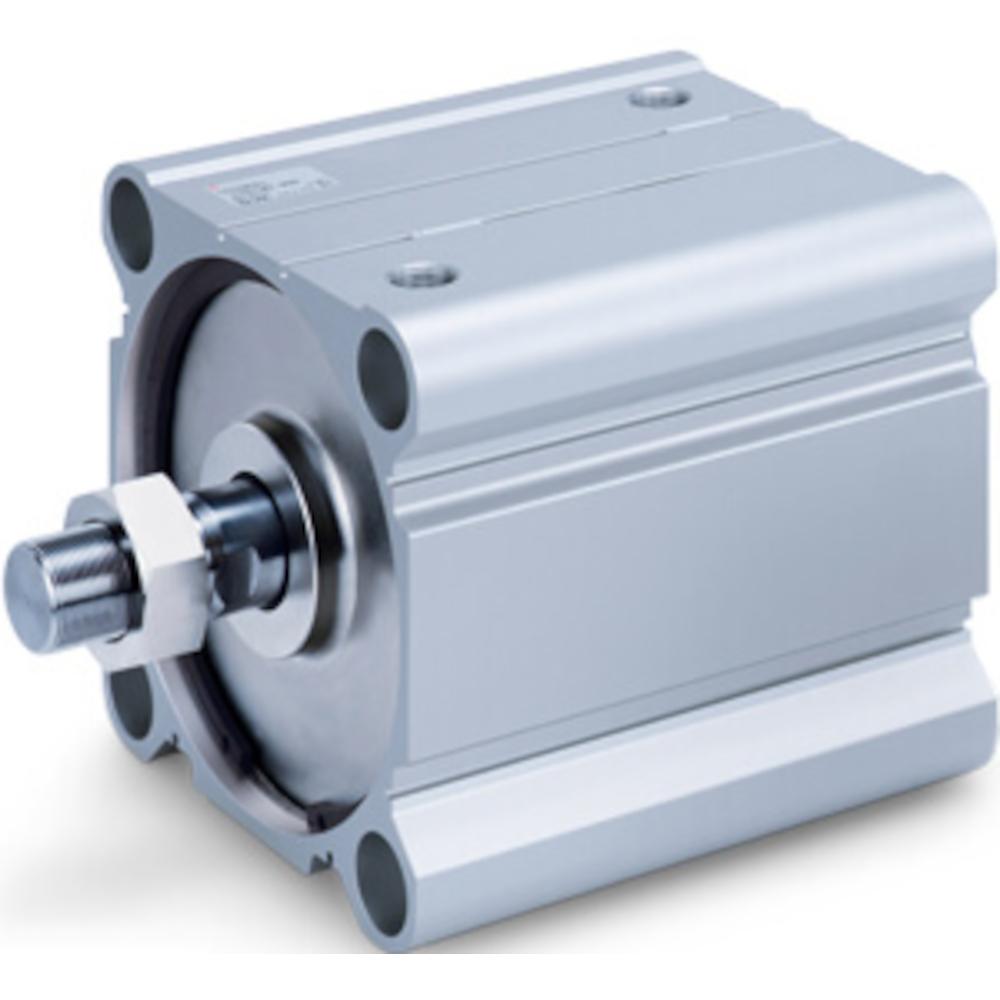

- The CDQ2BTF-DCZ compact cylinder is used in automation and assembly lines where smooth movements and a longer service life for components are important.
- It is particularly suitable for clamping and guiding applications.
- Typical applications include handling systems and manufacturing modules.
- The double-acting CDQ2BTF-DCZ compact cylinder with internal thread, elastic damping and through-bore offers smooth operation combined with precision.
- The internal thread makes it easier to attach tools, whilst the through-hole provides flexible mounting options.
- The elastic damping reduces shocks and noise at the end positions.
- Housing material – aluminium alloy, hard anodised
- Piston material – aluminium alloy
- Piston rod material – hard chrome-plated steel
- Cylinder head material – anodised aluminium alloy (piston Ø 32 and 40 mm) / chromated, painted cast aluminium (piston Ø 50 to 100 mm) / nickel-plated steel (piston Ø from 125 mm)
- Damping - Urethane
- Seal material – NBR
- Operating principle – double-acting, standard piston rod
- Medium - Compressed air
- Mounting type – Through-hole (standard)
- Test pressure – 15 bar (piston Ø up to 160 mm) / 10.5 bar (piston Ø 180 and 200 mm)
- Max. operating pressure – 10 bar (piston Ø up to 160 mm) / 7 bar (piston Ø 180 and 200 mm)
- Min. operating pressure - 0.5 bar
- Ambient and medium temperature – Without signal transmitter: -10 to 70 °C (not frozen) / With signal transmitter: -10 to 60 °C (not frozen)
- Grease - Not required (lubricated for life)
- Damping – elastic damping
- Piston speed – 50 to 500 mm/s (piston diameter up to 160 mm) / 20 to 400 mm/s (piston diameter 180 and 200 mm)
- Pneumatic connection – G 1/8" to 1/2"
- Piston rod thread – internal thread M8 x 1.25 to M24 x 0.3
- Permissible kinetic energy – 0.29 to 12.4 J
- Piston diameter – 32 to 200 mm
- Stroke – 5 to 300 mm
- Width – 49.5 to 226 mm
- Height – 45 to 226 mm
- Length – 45 to 426 mm
- Weight - 182 to 27,070 g
