Product Description

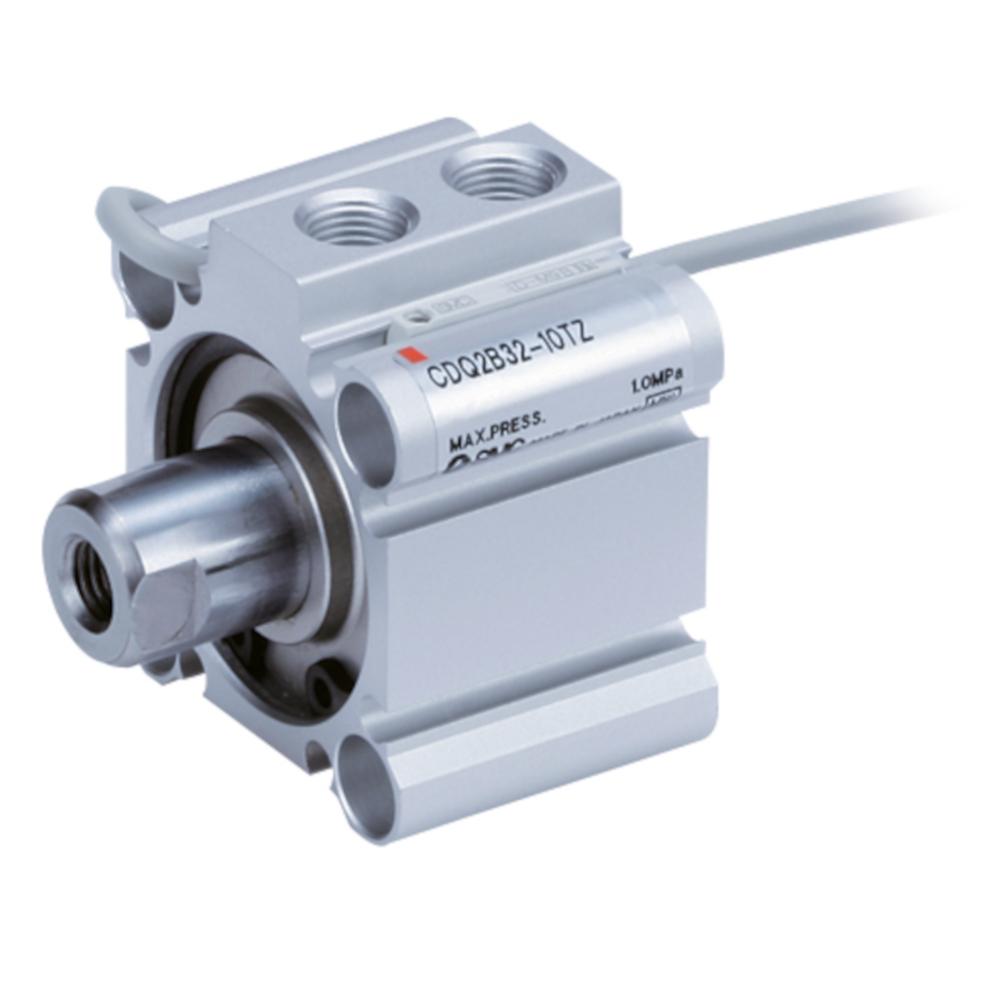

- The CDQ2B-SZ compact cylinder is suitable for assembly and handling units that require reset without additional control.
- The cylinder is frequently used in clamping devices, automated grippers and positioning systems.
- Its compact design is ideal for limited installation spaces.
- The single-acting CDQ2B-SZ compact cylinder with spring force retraction and through-bore is designed for applications with automatic reset.
- The spring force reliably returns the piston rod to its initial position after the compressed air pulse has ended.
- The through-hole allows flexible and stable mounting on flat surfaces.
- Housing material – aluminium alloy, hard anodised
- Piston material – aluminium alloy
- Piston rod material – stainless steel (piston diameter 12 and 16 mm) / steel, hard chrome-plated (piston diameter 32 to 50 mm)
- Cylinder head material – anodised aluminium alloy (piston diameter 12 to 40 mm) / chromated, painted cast aluminium (piston diameter 50 mm)
- Material for wipers, seals – NBR
- Mode of operation – single-acting, spring-loaded retraction, standard piston rod
- Medium - Compressed air
- Mounting type – through hole (standard)
- Test pressure – 15 bar
- Max. operating pressure - 10 bar
- Min. operating pressure - 1.3 to 2.5 bar
- Ambient and medium temperature - Without signal transmitter: -10 to 70 °C (not frozen) / With signal transmitter: -10 to 60 °C (not frozen)
- Lubricating grease – Not required (lubricated for life)
- Damping – without damping
- Piston speed – 50 to 500 mm/s
- Piston rod thread – M thread, internal thread
- Permissible kinetic energy – 0.022 to 0.46 J
- Piston diameter – 12 to 50 mm
- Stroke - 5 to 20 mm
- Width – 25 to 71 mm
- Height – 25 to 64 mm
- Length – 25.5 to 58.5 mm
- Weight - 29 to 426 g
