Product Description

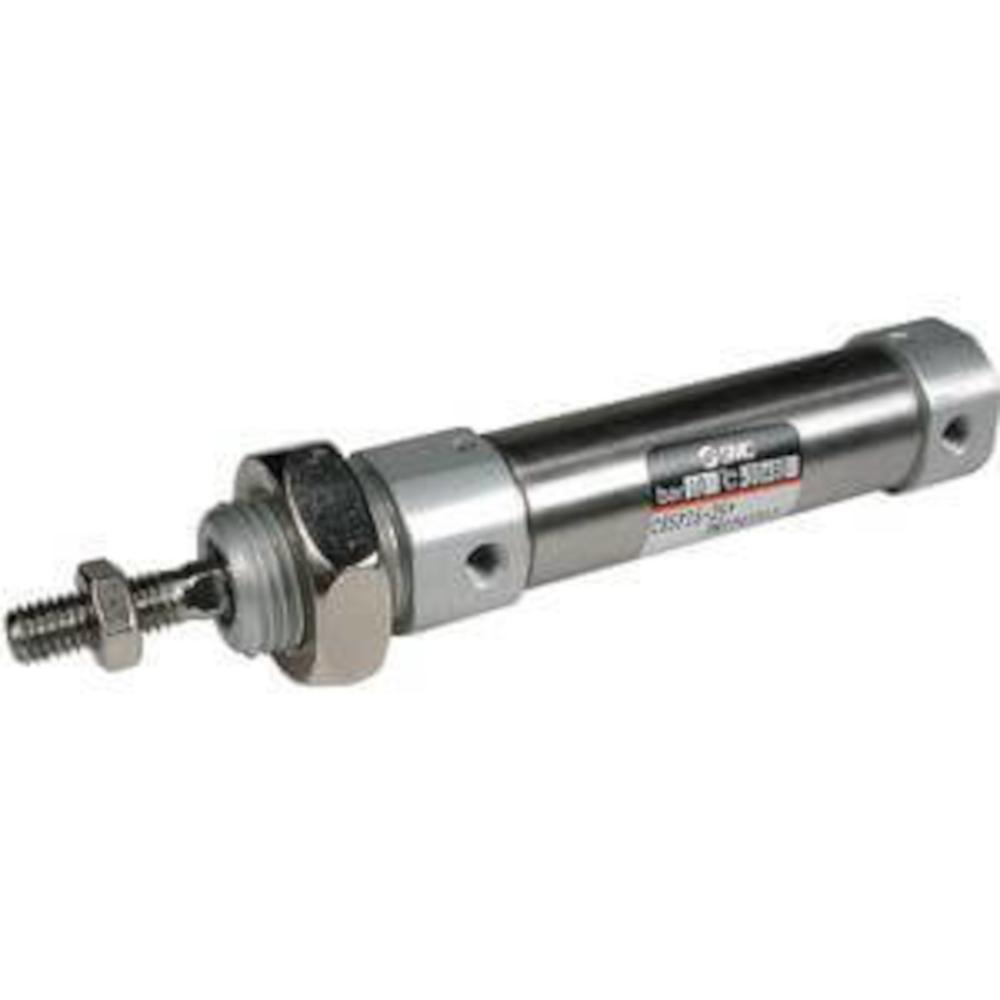

- The C85F compressed air cylinder is suitable for standard applications with linear motion without position feedback.
- It is mainly used in mechanical engineering, handling technology and simple automation solutions.
- It is particularly suitable for tasks requiring force build-up on both sides and space-saving integration.
- The C85F compressed air cylinder is double-acting, has a single-sided piston rod with thread at the front and elastic damping.
- It has a side air connection at the rear and is supplied without a magnet or accessories.
- The housing is made of anodised aluminium, the piston rod of hardened stainless steel.
- Cylinder head/cylinder cover material – aluminium
- Housing material – stainless steel
- Design – pneumatic
- Mode of operation – double-acting; single-sided piston rod
- Medium - Compressed air
- Complies with ISO 6432 and CETOP RP52P
- Test pressure - 15 bar
- Max. operating pressure - 10 bar
- Min. operating pressure - 0.5 bar (piston Ø 16, 20, 25 mm) / 0.8 bar (piston Ø 10, 12 mm) / 1 bar (piston Ø 8 mm)
- Ambient and medium temperature - -20°C to 80°C (not frozen)
- Lubricating grease – Not required (lubricated for life)
- Piston speed – 50 to 1500 mm/s
- Damping – elastic damping
- Permissible kinetic energy - 0.02 to 0.4 J
- Piston diameter – 8 to 25 mm
- Stroke - 10 to 300 mm
- Width/depth (spanner size) – 19 to 32 mm
- Length - 84 to 415 mm
- Weight - 37.1 to 566 g
