Product Description

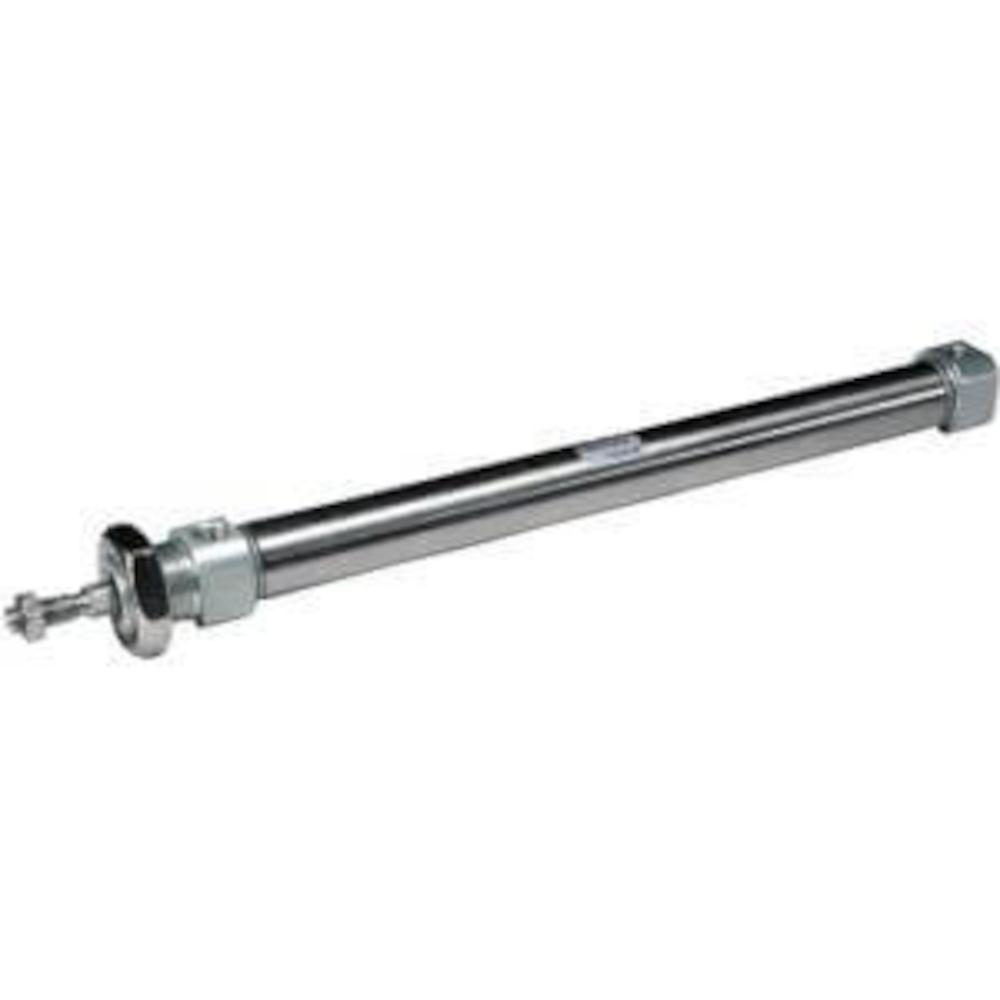

- The CD85KN-B compressed air cylinder is suitable for precise linear movements with anti-rotation protection in applications with limited installation space.
- It is primarily used in automation, mechanical engineering and assembly technology.
- It is particularly in demand where precise positioning and piston position detection are required.
- The CD85KN-B compressed air cylinder is double-acting and equipped with a single-sided, anti-rotation piston rod with integrated clevis.
- It also has a built-in magnet and elastic damping.
- A signal transmitter can be attached using tape mounting.
- Cylinder head/cylinder cover material – aluminium
- Housing material – stainless steel
- Design – pneumatic
- Mode of operation – double-acting; single-sided piston rod, anti-rotation
- Medium - Compressed air
- Complies with ISO 6432 and CETOP RP52P
- Test pressure - 15 bar
- Max. operating pressure - 10 bar
- Min. operating pressure - 0.5 bar (piston Ø 16, 20, 25 mm) / 0.8 bar (piston Ø 10, 12 mm) / 1 bar (piston Ø 8 mm)
- Ambient and medium temperature - Without signal transmitter -20°C to 80°C (not frozen) / With signal transmitter -10°C to 60°C (not frozen)
- Lubricating grease – Not required (lubricated for life)
- Piston speed – 50 to 1500 mm/s
- Damping – elastic damping
- Signal transmitter mounting design – tape mounting
- Permissible kinetic energy - 0.02 to 0.4 J
- Rotational accuracy - ±0.7° to ±1.5°
- Piston diameter – 8 to 25 mm
- Stroke - 10 to 1000 mm
- Width/depth (spanner size) – 19 to 32 mm
- Length - 96 to 1137 mm
- Weight - 41.3 to 1471 g
