Product Description
- The C85WE-B compressed air cylinder is suitable for applications requiring connection or movement on both sides.
- It is primarily used in mechanical engineering, automation technology and handling systems.
- Typical areas of application are pneumatic positioning tasks with changing force directions.

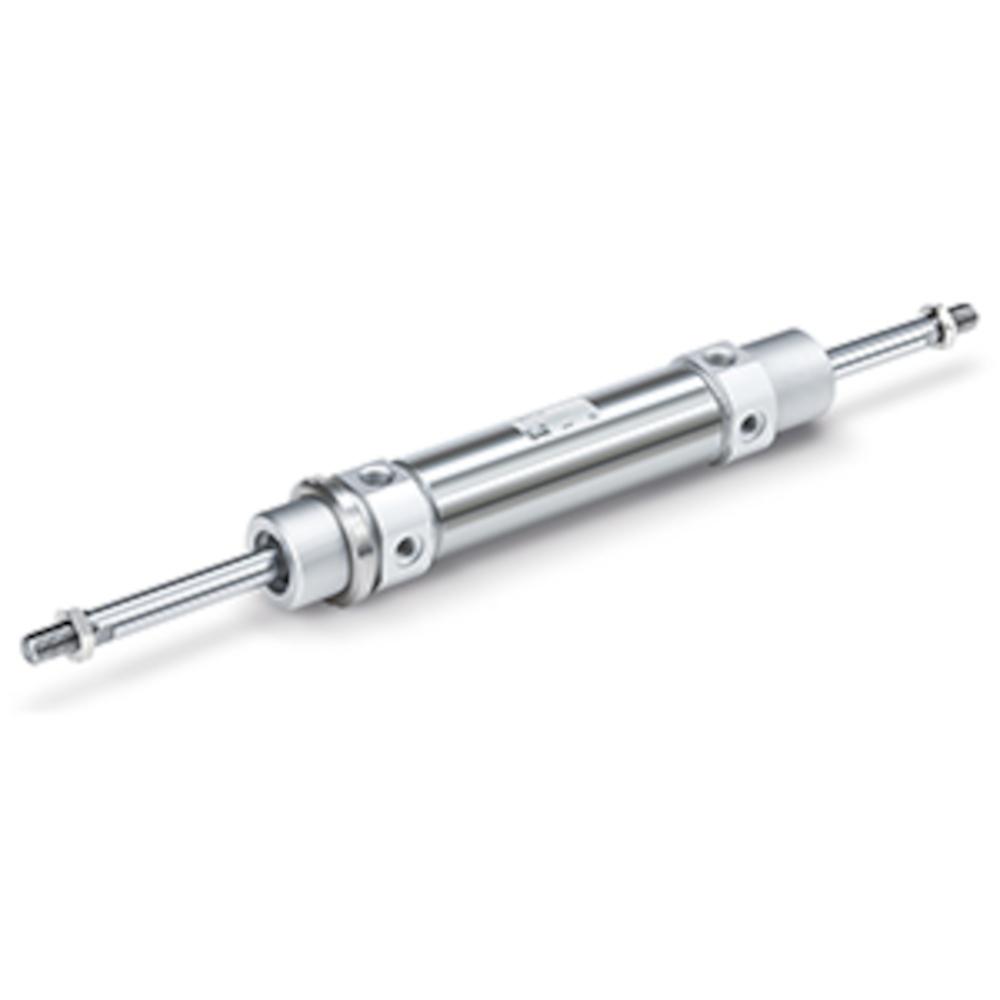

- The C85WE-B compressed air cylinder is a double-acting pneumatic cylinder with a continuous piston rod and elastic damping.
- The housing is made of anodised aluminium, the piston rod of hardened stainless steel.
- The piston rod guide on both sides enables symmetrical movement sequences and flexible mounting options.
- A built-in magnet enables precise position detection, compatible with tape mounting for signal transmitters.
- Cylinder head/cylinder cover material – aluminium
- Housing material – stainless steel
- Design – pneumatic
- Mode of operation – double-acting with continuous piston rod
- Medium - Compressed air
- Test pressure - 15 bar
- Max. operating pressure - 10 bar
- Min. operating pressure - 0.5 bar (piston Ø 16, 20, 25 mm) / 0.8 bar (piston Ø 10, 12 mm) / 1 bar (piston Ø 8 mm)
- Ambient and medium temperature - -20°C to 80°C (not frozen)
- Lubricating grease – Not required (lubricated for life)
- Piston speed – 50 to 1500 mm/s
- Damping – elastic damping
- Signal transmitter mounting design – tape mounting
- Permissible kinetic energy - 0.02 to 0.4 J
- Piston diameter – 8 to 25 mm
- Stroke - 10 to 300 mm
- Complies with ISO 6432
- Width/depth (spanner size) – 19 to 32 mm
- Length - 124 to 765 mm
- Weight - 49 to 818 g
