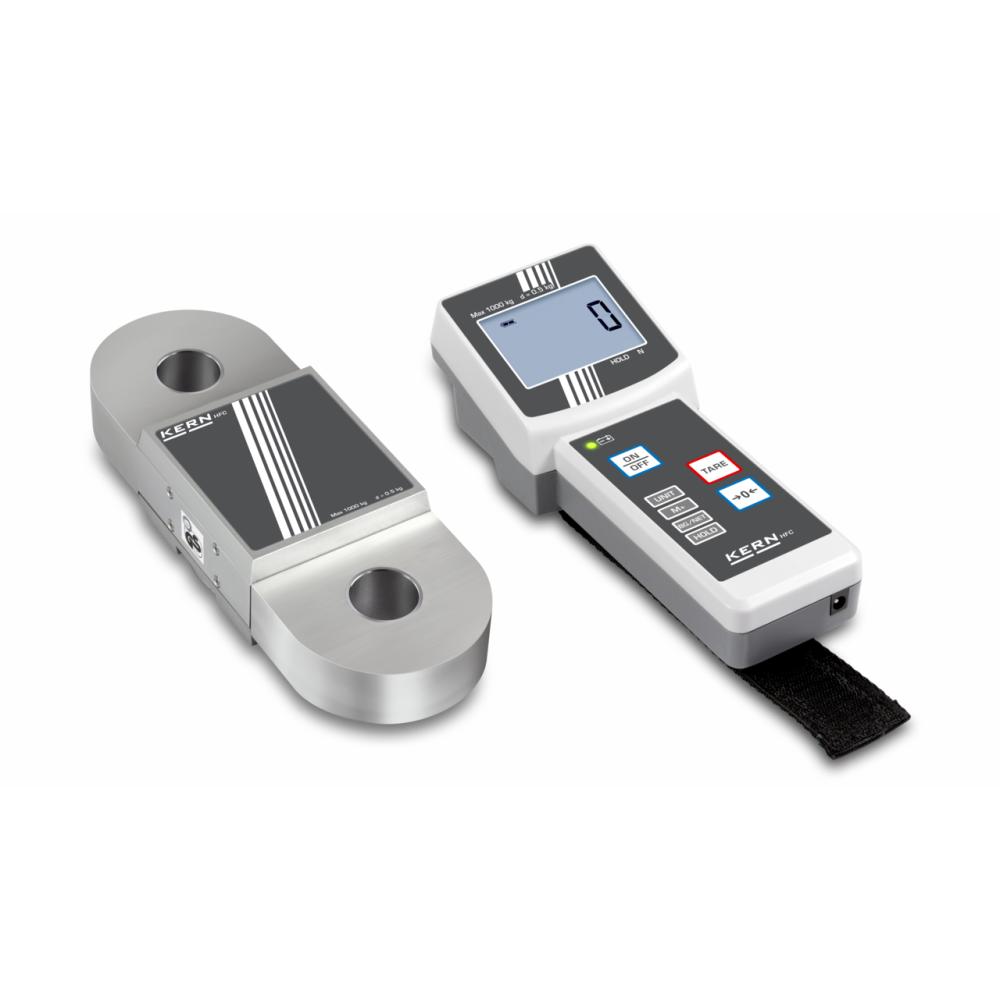

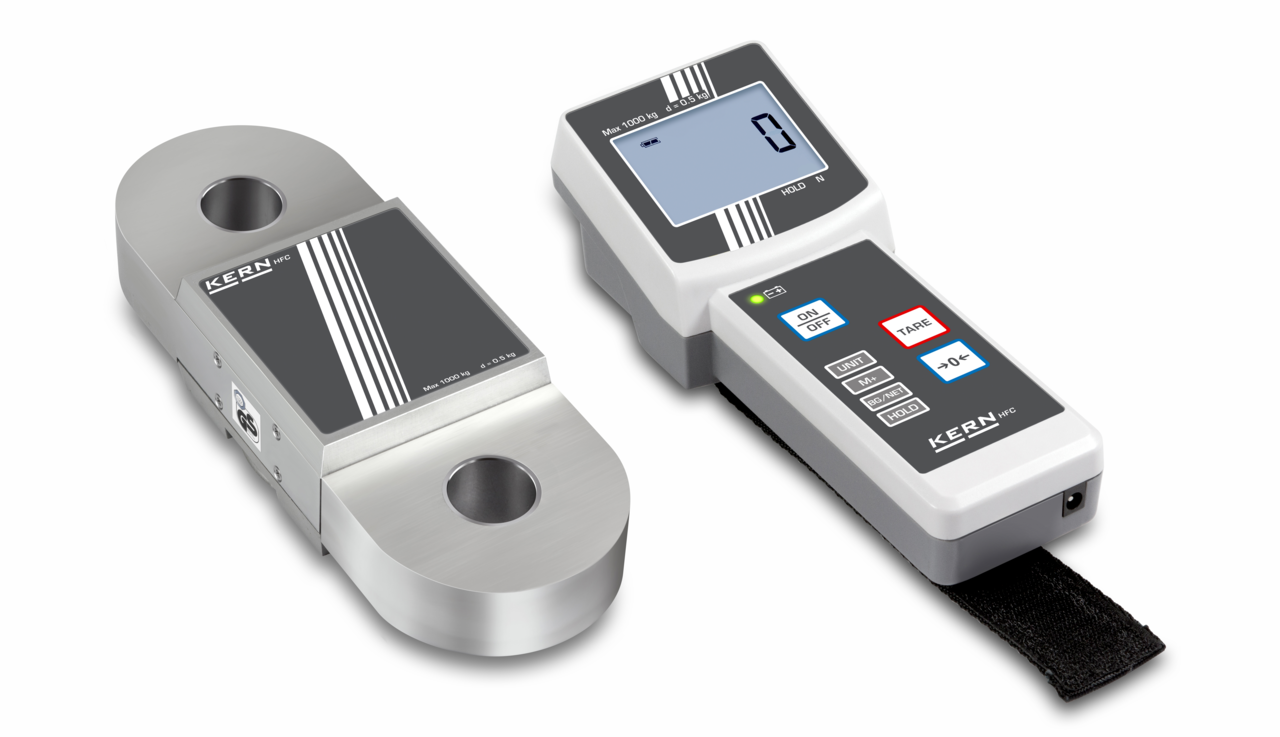

Crane Scale - max. Weighing range 1000 to 10000 Kg - evaluation module externally
| From € 1.165,11 |
| Price incl. VAT |
Do you have any questions?
We would like to assist you!
We would like to assist you!
Product Description
- the crane scale is suitable for the rapid determination of weight during feeding and unloading in the fields of industry, construction sites, for freight centers and port facilities and can be used as well as tension meter
- compact crane scale, also suitable for space-saving installation in plants
- the external evaluator has a interenes radio module and has a hand strap
- Weighing data can be read even from a distance (range approx 100 m)
- the CAL adjustment program to allow exact adjustment of the scale (test weights not included)
- keystroke, the display on units as kg, lb or N are converted
- with Peak load display (peak hold function)
- taring allows you to reset the display to "0" during weighing process, so removed or added loads are directly displayed
- The HOLD function allows accurate weighing even with restless weighing conditions and can be manually activated by pressing a button or automatically at scale arrest
- the operation is the evaluation on the internal battery, the load receiver on batteries (not included, battery optionally available)
- on request you get the certificate,
- Material Housing load receiver HFC 1T-4, 3T 3 - aluminum with stainless steel bushing
- Material Housing load receiver HFC 5T 3, 10T-3 - steel steel socket
- Display type - backlit LCD display, digit height 23 mm
- Measurement frequency - 60 Hz
- Dimensions evaluator (W x D x H) - 88 x 64 x 256 mm
- Hole diameter x hole depth - 27 x 30, 30 x 30 or 40 x 40 mm
- Spacing of holes - 165 or 185 mm
- Overall length x width - 255 x 90 and 275 x 90 mm
- Device depth load receiver - 55-71 mm
- Max. Weighing range - 1,000 to 10,000 kg
- Readability [d] - 500 to 5000 g
- Precision - 0.2% of [Max]
- TÜV seal - yes
- according to standard - EN 13155 (loose load receiver / breakage)
- according to standard - EN 61010-1 (electrical safety)
- permissible ambient temperature - from 5 ° to 35 ° C
- Battery load receiver - 3 x 1.5V AA
- Battery operation - operating time up 30 H, charging time 12 h
Calibration certificate on request
Versions: (4)
Narrow down your selection
Max. weighing
Readability [d]
Hole diameter x hole depth
hole spacing
Overall length x width
device depth
net weight
| Article No. | Max. weighing | Readability [d] | Hole diameter x hole depth | hole spacing | Overall length x width | device depth | net weight | Price incl. VAT | |||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
|
3622HFC1T400 | 1000 kg | 500 g | 27 x 30 mm | 165 mm | 255 x 90 mm | 55 mm | 1.7 kg |
|
||||
|
|||||||||||||
|
|
3622HFC3T300 | 3000 kg | 1000 g | 27 x 30 mm | 165 mm | 255 x 90 mm | 61 mm | 2.2 kg |
|
||||
|
|||||||||||||
|
|
3622HFC5T300 | 5000 kg | 2000 g | 30 x 30 mm | 165 mm | 255 x 90 mm | 61 mm | 3.9 kg |
|
||||
|
|||||||||||||
|
|
3622HFC10T30 | 10000 kg | 5000 g | 40 x 40 mm | 185 mm | 275 x 90 mm | 71 mm | 6 kg |
|
||||
|
|||||||||||||
