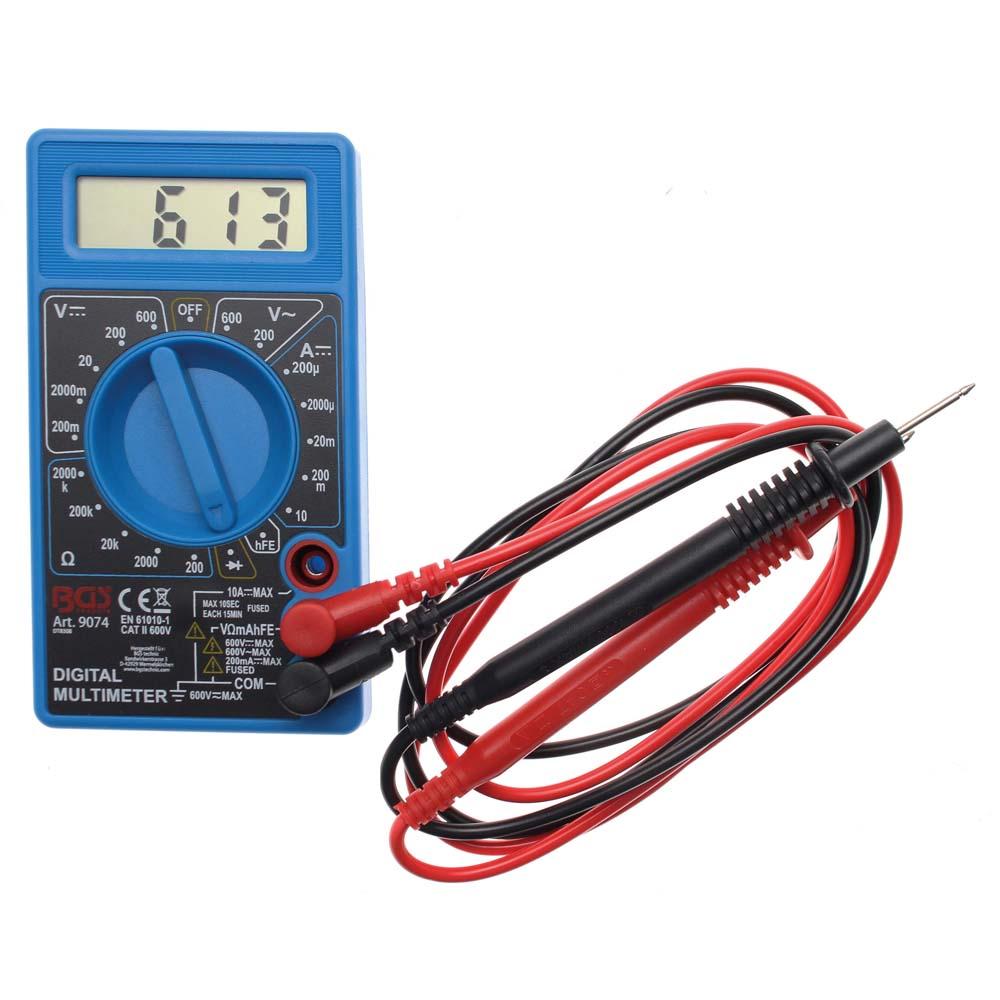

Digital multimeter - 3½ digits - 7 segments - 12.5 mm LCD
| € 9,54 |
| Price incl. VAT |
| plus € 29,00 shipping costs |
Delivery time 2 - 4 working days
Do you have any questions?
We would like to assist you!
We would like to assist you!
Item No.:
361590740000
Product Description
- The digital multimeter is suitable for measurements in the CAT II range
- has an indicator for overflow, polarity and low battery voltage
- Measuring ranges for resistance, AC voltage, DC voltage, diode voltage drop and hFE transistor measurements
- Weight - approx. 140g (including battery)
- Operating temperature - from 10°C to 40°C
- relative humidity - from 0 to 75%
- Power supply - 2x 1.5V AAA battery
- Dimensions (L x W x H) - 126 x 70 x 24 mm
- DC voltage measuring ranges
- 200 mV, resolution - 10 µV, accuracy: ±0.5% +10Digit
- 2000 mV, resolution - 1 mV, accuracy: ±1% +5Digit
- 20 V, resolution - 10 mV, accuracy: ±1% +5Digit
- 200 V, resolution - 100 mV, accuracy: ±1% +5Digit
- 600 V, resolution - 1 V, accuracy: ±1.2% +5Digit
- AC voltage measuring ranges:
- 200 V, resolution - 10 mV, accuracy: ±0.5% +10Digit
- 600 V, resolution - 1 V, accuracy: ±0.5% +10Digit
- Direct current measuring ranges
- 200 uA, resolution - 100 nA, accuracy: ±1.8% +2Digit
- 2000 uA, resolution - 1 μA, accuracy: ±1.8% +2Digit
- 20 mA, resolution - 10 μA, accuracy: ±1.8% +2Digit
- 200 mA , Resolution - 100 μA , Accuracy: ±2% +2Digit
- 10 A, resolution - 10 mA , accuracy: ±2% +10Digit
- Resistance measuring ranges
- 200 Ohm, resolution - 0.1 mOhm, accuracy: ±1% +10Digit
- 2000 Ohm, resolution - 1 Ohm, accuracy: ±2% +4Digit
- 20 KOhm, resolution - 10 Ohm, accuracy: ±2% +4Digit
- 200 KOhm, resolution - 100 Ohm, accuracy: ±2% +4Digit
- 2000 KOhm, resolution - 1 KOhm, accuracy: ±2% +4Digit

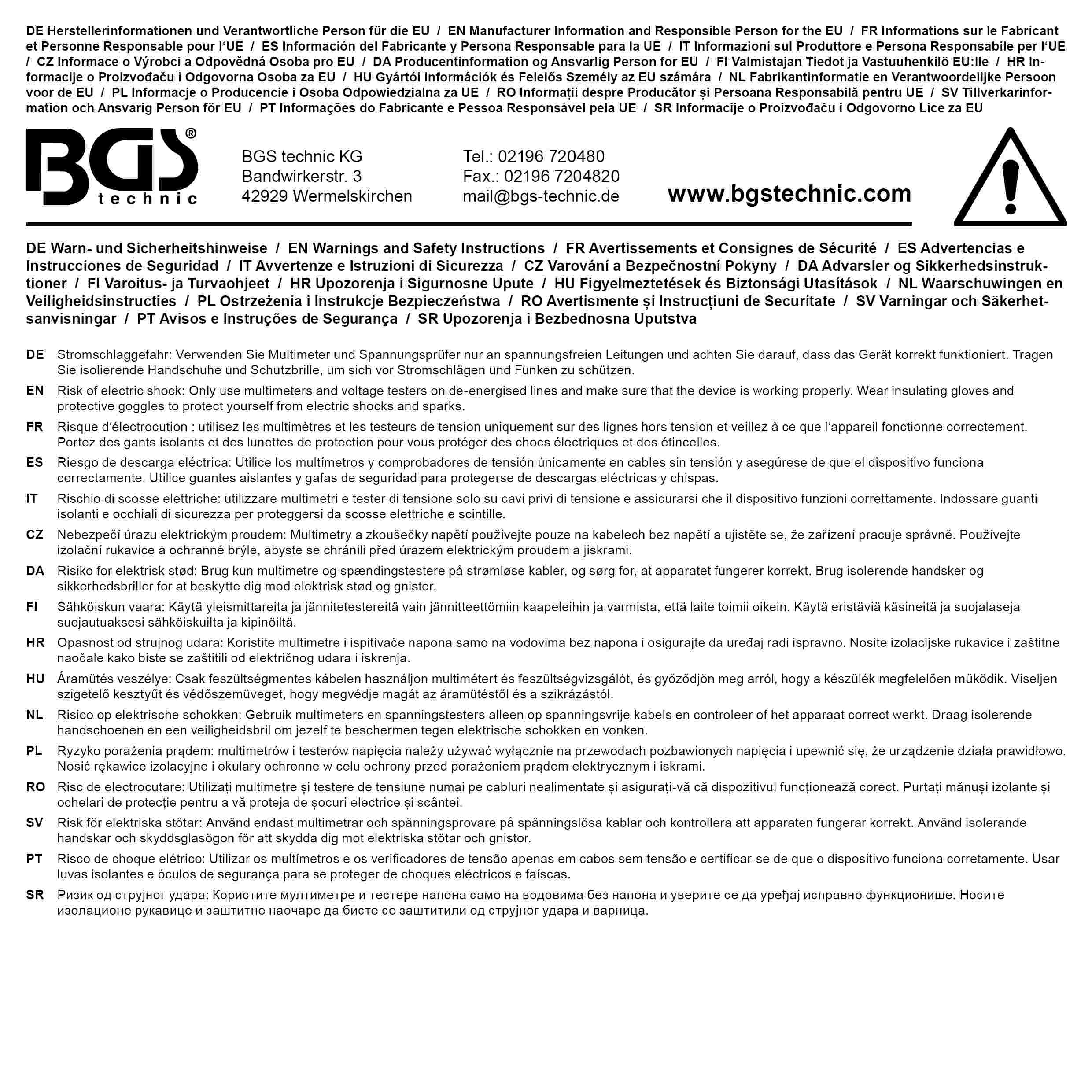

Product safety
Manufacturer part number: 9074
Manufacturer: BGS technic KG, Bandwirkerstrasse 3, 42929 Wermelskirchen, Germany, https://www.bgstechnic.com/, https://www.bgstechnic.com/en/contact/, mail@bgs-technic.de
Responsible person: BGS, Bandwirkerstrasse 3, 42929 Wermelskirchen, Germany, https://www.bgstechnic.com/, https://www.bgstechnic.com/en/contact/, mail@bgs-technic.de
