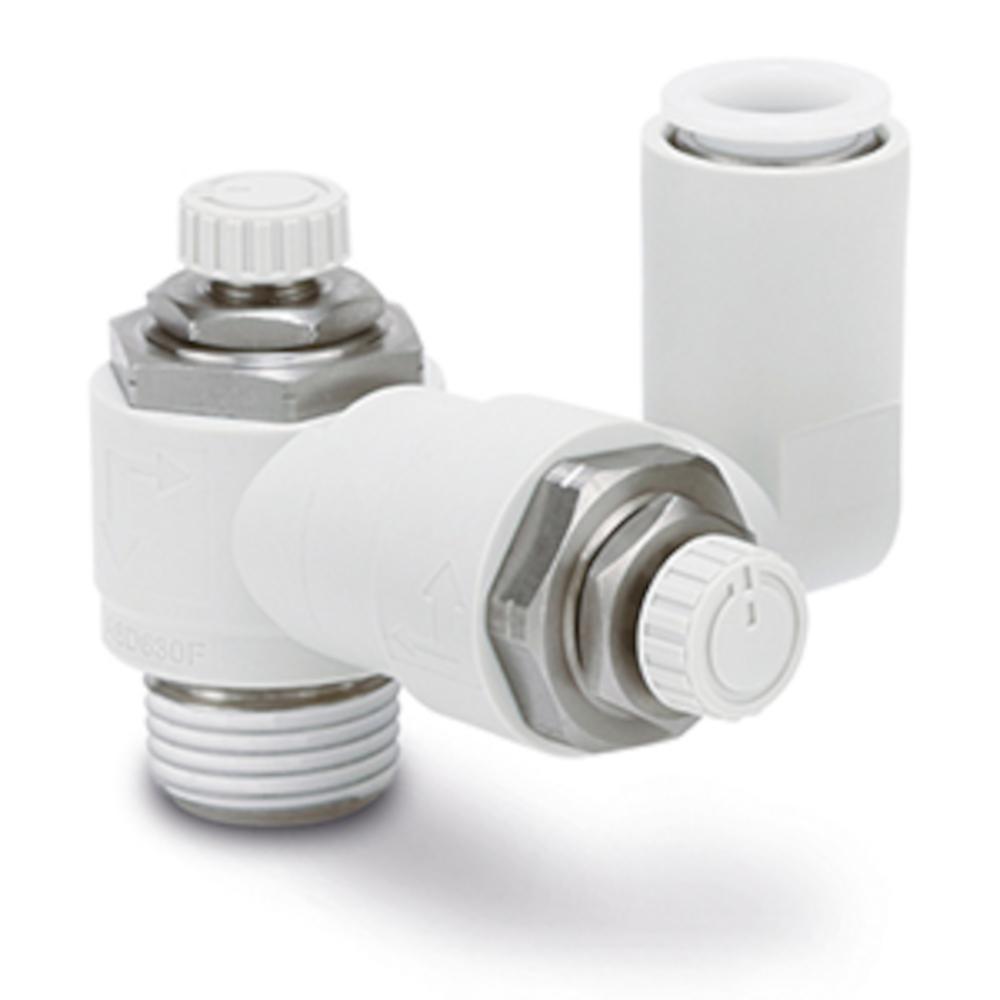

Double throttle check valve ASD-FG – stainless steel/PBT – hose outer diameter 4 to 12 mm – M5 or R 1/8" to 1/2" – price per piece
| From € 52,50 |
| Price incl. VAT |
| plus € 29,00 shipping costs |
Do you have any questions?
We would like to assist you!
We would like to assist you!
Product Description
- The ASD-FG double throttle check valve is used in applications where high corrosion resistance is required.
- It is particularly suitable for use in damp, hygienic or aggressive environments, such as in the food industry, chemical industry or outdoors.
- The stainless steel design ensures reliable operation while reducing maintenance and downtime.
- The ASD-FG double throttle check valve is made of stainless steel and PBT plastic and has plug connections for easy installation.
- The variants with R thread also feature a PTFE thread seal to reduce friction and particle formation.
- The valve regulates the flow in both directions independently of each other and ensures constant speed even with load fluctuations.
- The integrated adjustment needle allows precise adjustment of the volume flow.
- The ASD series double check valve is a combination of supply air, exhaust air and check valve in one housing. The plug connections can be rotated through 360°.
- Housing material – PBT/stainless steel SUS303
- Material Angle housing, rotary knob – PBT
- Material Adjustment needle, ring, needle guide, lock nut – SUS303 stainless steel
- Material pressure ring – POM/stainless steel
- Seal material – HNBR, NBR
- Material thread seal - PTFE (only for R thread)
- O-ring material – NBR
- Test pressure – 1.5 MPa
- Max. operating pressure - 1 MPa
- Min. operating pressure - 0.1 MPa
- Ambient and media temperature - -5°C to 60°C (not frozen)
- Needle adjustment range – 10 turns (8 turns for M5 thread)
- Hose material – nylon, soft nylon, PUR
- Connection thread – M5 or R 1/8" to 1/2"
- Hose outer diameter – 4 to 12 mm
- Volume flow – 75 to 1300 l/min
- Equivalent cross-section - 1.1 to 19.8 mm²
- Height – 25.8 to 56.7 mm
- Length - 34.2 to 80.4 mm
- Width - 21.2 to 50.7 mm
- Weight - 12 to 179 g
- Price per unit
Versions: (12)
| Article No. | Connection thread | Hose outer diameter | Volume flow | Part no. | Type | Price incl. VAT | |||||
|---|---|---|---|---|---|---|---|---|---|---|---|
|
202800117944 | M5 | 4 mm | 75 l/min | 00117944 | ASD230FG-M5-04 |
|
||||
|
|||||||||||
|
202800117945 | M5 | 6 mm | 75 l/min | 00247770 | ASD230FG-M5-06 |
|
||||
|
|||||||||||
|
202800117946 | R 1/8" | 6 mm | 175 l/min | 00006673 | ASD330FG-01-06S |
|
||||
|
|||||||||||
|
202800117947 | R 1/8" | 8 mm | 175 l/min | 00318788 | ASD330FG-01-08S |
|
||||
|
|||||||||||
|
202800117948 | R 1/4" | 6 mm | 295 l/min | 00086744 | ASD430FG-02-06S |
|
||||
|
|||||||||||
|
202800117949 | R 1/4" | 8 mm | 350 l/min | 00117949 | ASD430FG-02-08S |
|
||||
|
|||||||||||
|
202800117950 | R 1/4" | 10 mm | 350 l/min | 00318794 | ASD430FG-02-10S |
|
||||
|
|||||||||||
|
202800117951 | R 3/8" | 8 mm | 600 l/min | 00318824 | ASD530FG-03-08S |
|
||||
|
|||||||||||
|
202800117952 | R 3/8" | 10 mm | 700 l/min | 00117957 | ASD530FG-03-10S |
|
||||
|
|||||||||||
|
202800117953 | R 3/8" | 12 mm | 700 l/min | 00318826 | ASD530FG-03-12S |
|
||||
|
|||||||||||
|
202800117954 | R 1/2" | 10 mm | 1200 l/min | 00145645 | ASD630FG-04-10S |
|
||||
|
|||||||||||
|
202800117955 | R 1/2" | 12 mm | 1300 l/min | 00105141 | ASD630FG-04-12S |
|
||||
|
|||||||||||
