Product Description

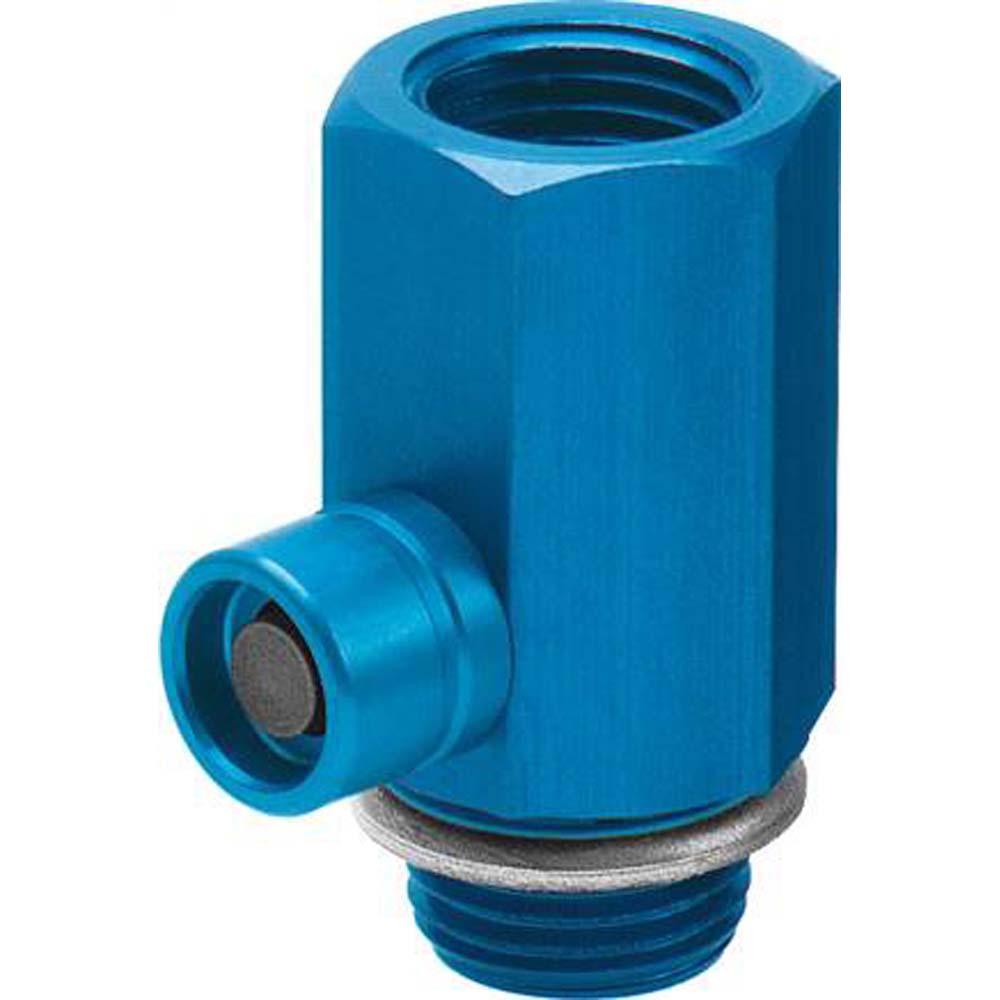

- The manual override is used in conjunction with an HGL non-return valve to manually vent a trapped volume of air in the cylinder.
- The manual override is available in connection sizes G1/8 to G1/2.
- Material information – RoHS compliant
- Housing material – wrought aluminium alloy, anodised
- Installation position – any
- Nominal diameter – 4.1 to 14.0 mm
- Valve function – venting element
- Operating pressure – 0 to 10 bar
- Operating medium - Compressed air according to ISO 8573-1:2010 [7:4:4]
- Note on operating and control medium – Oiled operation possible (required for further operation)
- Corrosion resistance class - KBK 2 - moderate corrosion exposure
- LABS compliance – VDMA24364-B1/B2-L
- Normal nominal flow rate Ventilation - 165 l/min
- Maximum tightening torque - 8 to 45 Nm
- Ambient temperature - -20 to 80°C
- Medium temperature - -20 to 80°C
- Pneumatic connection 1 - G1/8 to G1/2
- Pneumatic connection 2 - G1/8 to G1/2
- Mounting type – screw-in
- Weight - 8.4 to 35 g
