Product Description
- Magnetoresistive proximity switch for contactless detection of cylinder positions – ideally suited for automation systems with Festo T-slot connection, even under the most difficult environmental conditions.
- The SMT‑8M‑A is a compact, magnetoresistive proximity switch for T-slot cylinders, available in versions with PNP normally open contact (PS) or NPN normally open contact (NS) and optional cable lengths of 0.3 m, 2.5 m or 5 m.
- It is flexible in use, suitable for robot and energy chain operation, with a high degree of protection (IP65/68/69K) and LED status display.
- The robust design allows installation from above into the groove of the cylinder; the construction and materials are LABS-compliant and halogen-free – ideal for clean room or battery production.
- The switching speed of up to 130 Hz guarantees reliable signal detection even with fast cylinder movements.
- Measuring principle – magnetoresistive
- Installation – can be inserted into T-slot from above
- Switching output – PNP (PS) or NPN (NS), normally open contact (NO contact)
- Switching frequency – up to 130 Hz
- Repeat accuracy - ±0.2 mm
- Switching current – max. 100 mA
- Switching capacity DC - max. 2.8 W
- Operating voltage - 5 to 30 V DC (typ. 24 V)
- Reverse polarity protection - Yes
- Pressure drop -

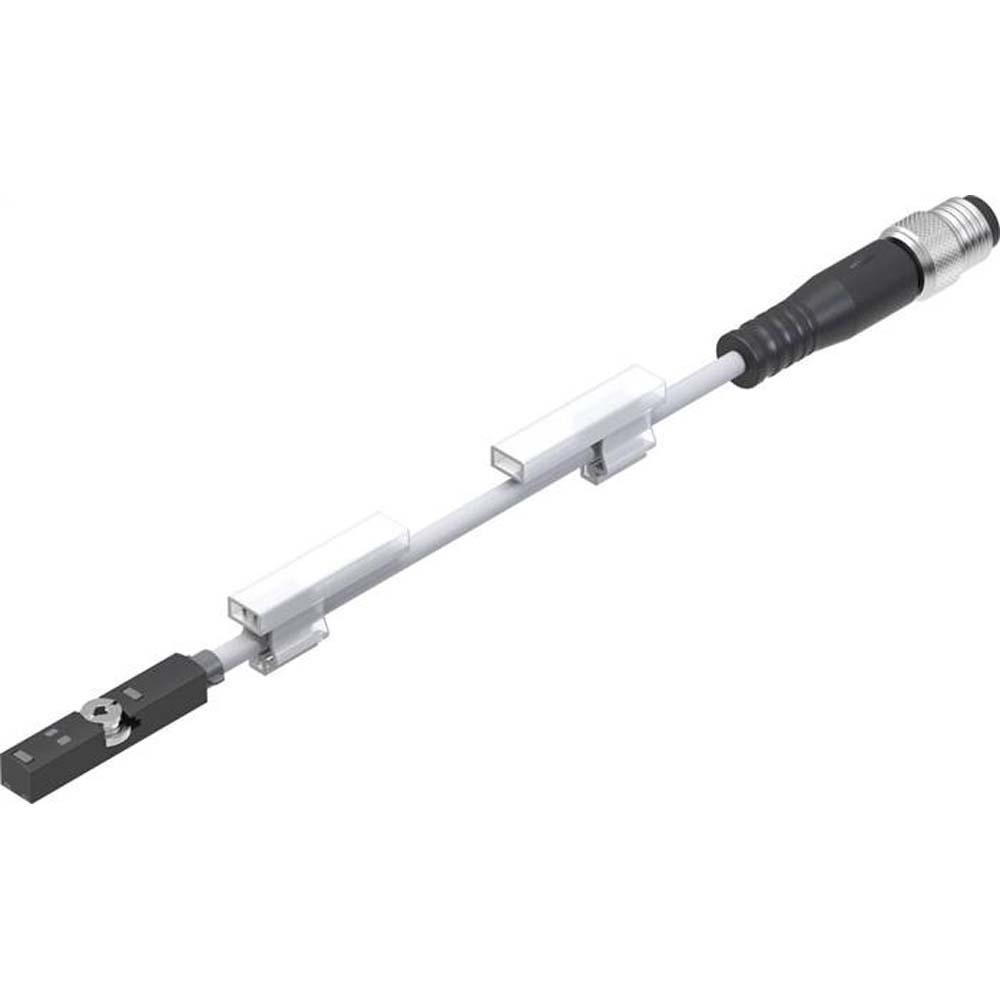

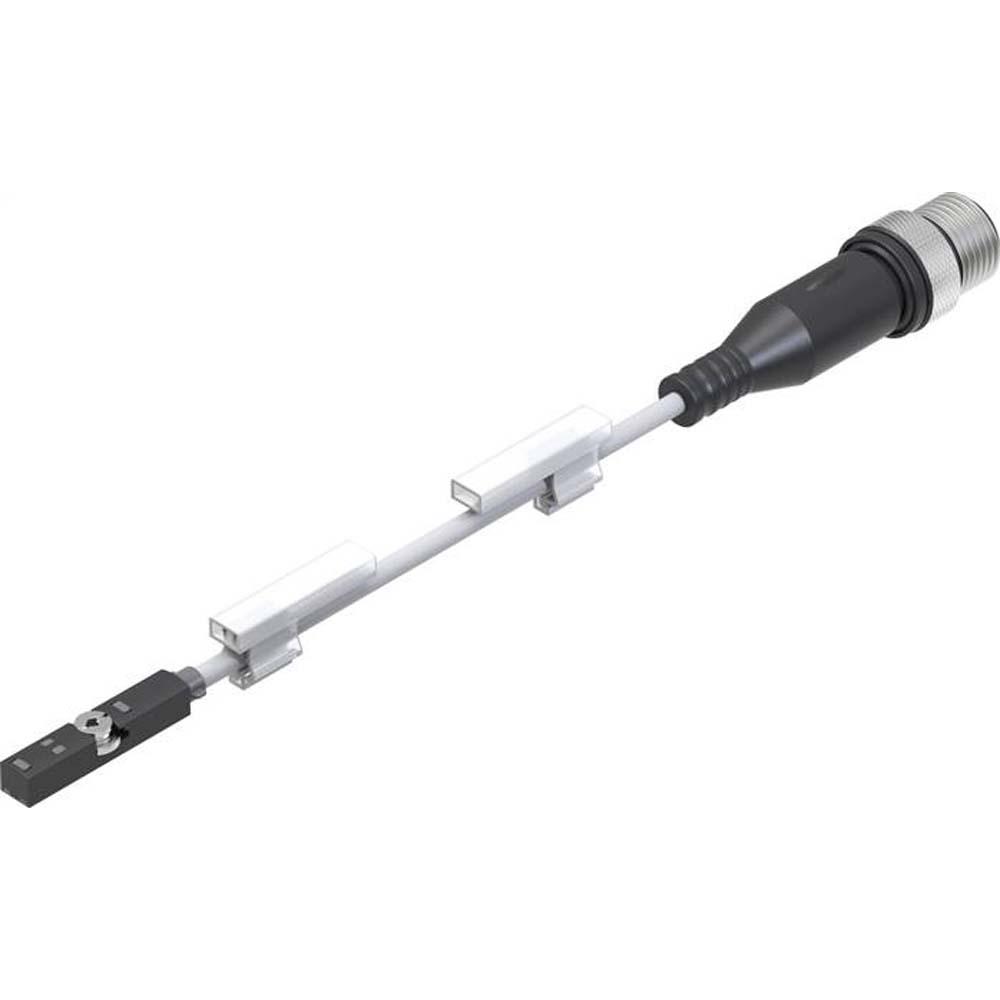

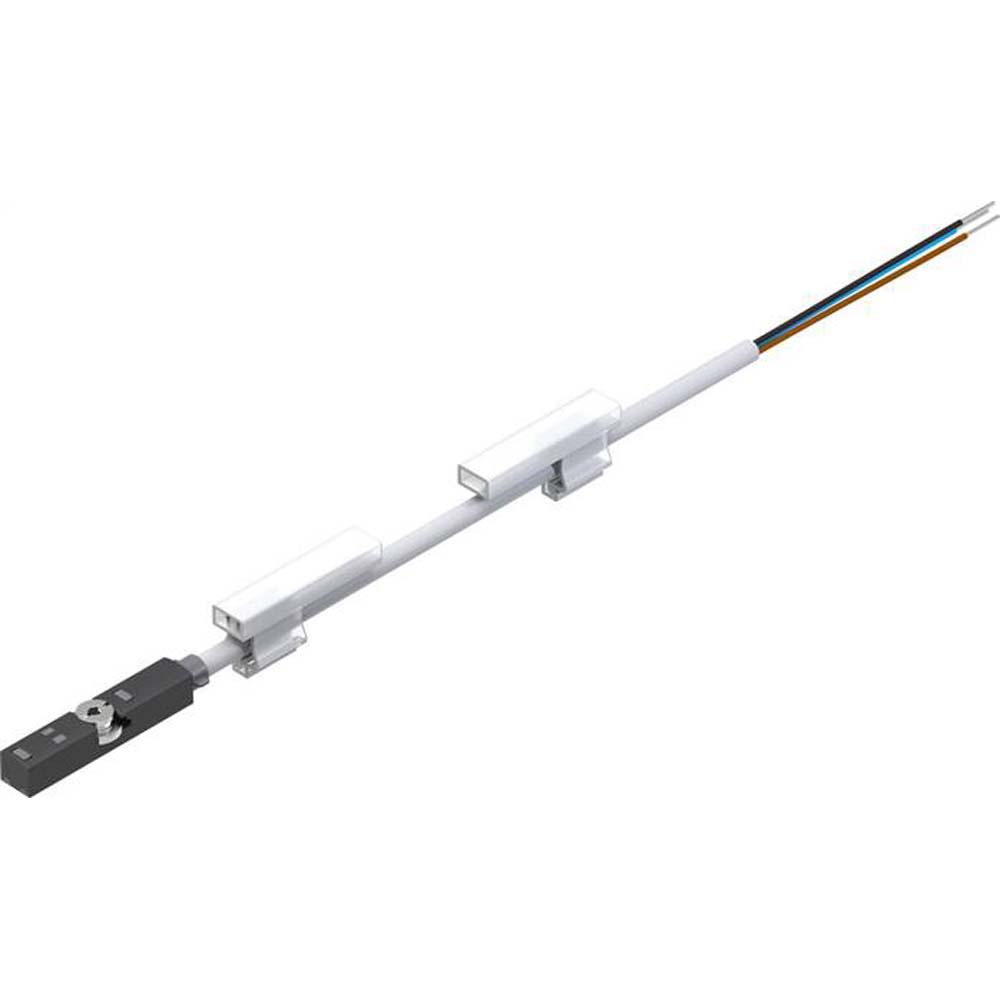

- Connection – cable with M8, M8D, M12 or open line
- Cable lengths – 0.3 m, 2.5 m, 5 m
- LED indicators – Yellow – Switching status; Orange – Function reserve
- Protection class - IP65, IP68, IP69K
- Temperature range: –40 °C to +85 °C (with movable cable: –20 to 85 °C)
- Materials – PA-reinforced housing, halogen-free, LABS-compliant, copper/PTFE-free
- Approval - UL, CE, RoHS, UKCA, RCM; suitable for Li-ion battery production (F1A)
- Dimensions - L ≈ 29.3 mm, W ≈ 5 mm (depending on variant)
- Service life/MTTF – in accordance with ISO 13849, up to 1349 a (for PS version)
