Product Description

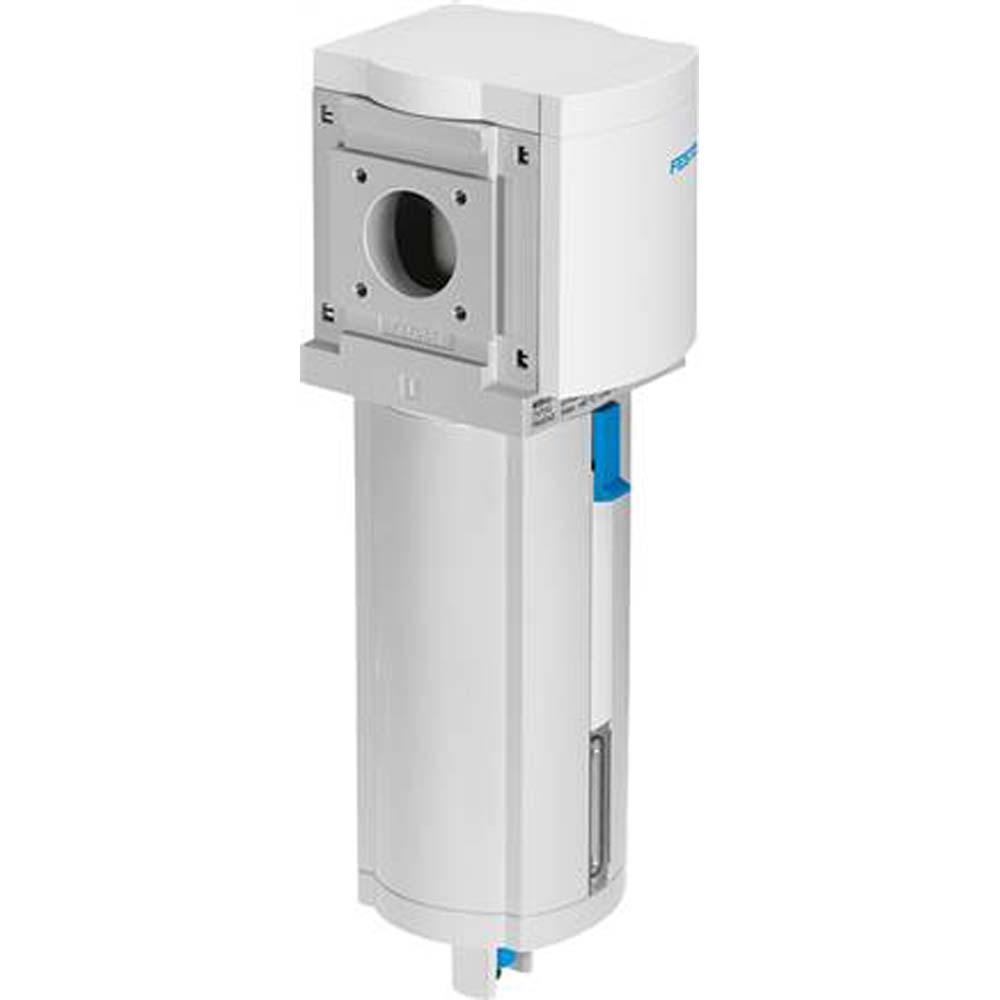

- The Festo compressed air filter for compressed air and inert gases is ideal for applications where reliable condensate removal is required.
- Festo compressed air filters from the MS9 series ensure reliable cleaning of compressed air and inert gases.
- They combine sintered filters and centrifugal separators and are available with different filter finenesses and condensate drains (manual or automatic).
- Thanks to their robust design with die-cast aluminium housing, PA-reinforced covers and NBR seals, they are durable and ideally suited for applications with moderate corrosion stress (KBK 2).
- - Size - 9
- - Series - MS
- - Installation position – vertical ± 5°
- - Design – sintered filter with centrifugal separator
- - Max. condensate quantity - 220 cm³
- - Mounting type: Pipe installation or with accessories
- -Corrosion resistance class KBK - 2 – moderate corrosion exposure
- - Housing material – die-cast aluminium
- - Shell material – wrought aluminium alloy
- - Cover material – PA reinforced
- - Filter material – PE
- - Material filter carrier / separator plate / swirl plate – POM
- - Viewing window material – PA
- - Shell seal material – NBR
- - Material of mounting bracket / connection plate / module connector – die-cast aluminium
- - Material information – RoHS compliant
- - Price per unit
