Product Description
- Festo valves are ideal for control tasks in pneumatic systems, e.g. for controlling larger directional control valves, as control components in pneumatic cylinders or as part of modular valve terminals. The different voltage and design variants allow the series to be used flexibly in automation systems.

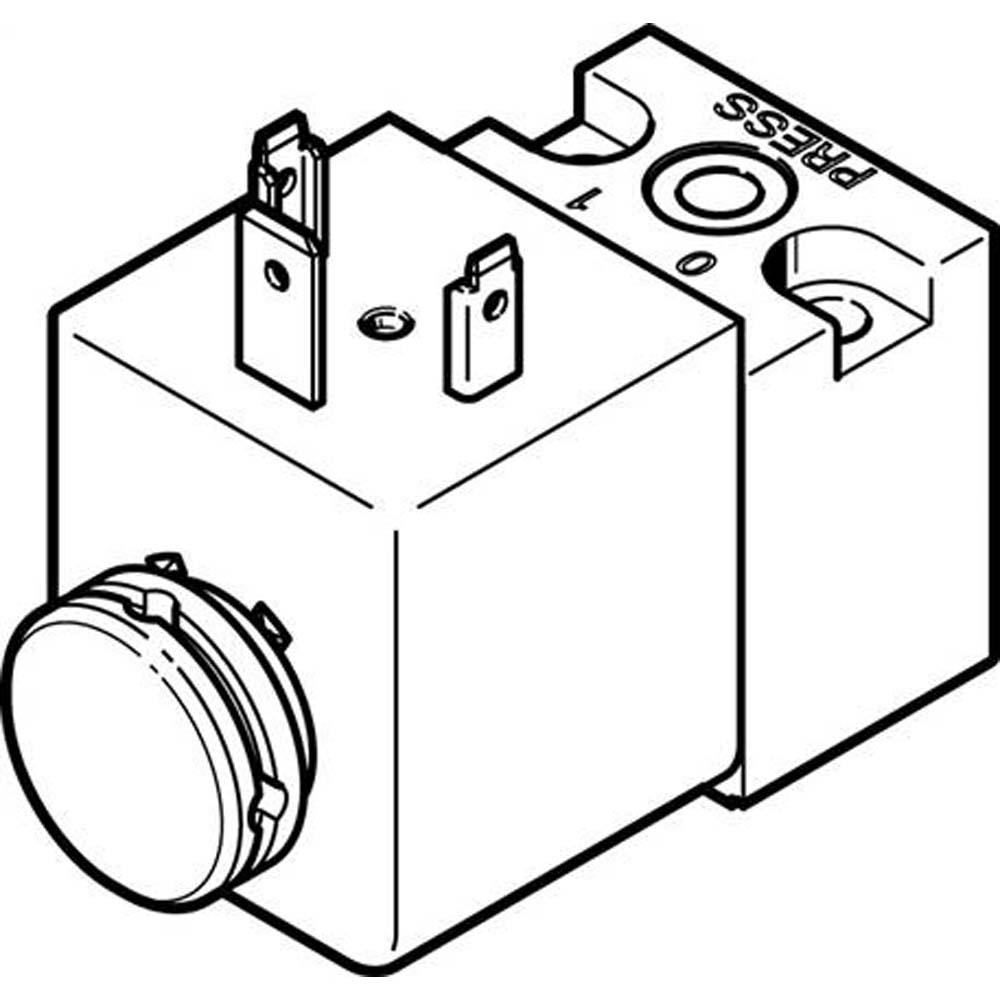

- The Festo MDH valve series comprises electrically operated directional control valves with CNOMO connection standard (ISO 15218).
- These valves function as pilot-operated and direct-operated valves and offer a compact design (30 mm wide) with a robust construction, mechanical reset and high protection class (IP65).
- The compact design and standard connection (CNOMO / ISO 15218) facilitate replacement and integration into standard platforms.
- The high flow rate (50 l/min) with a small nominal diameter of 1.3 mm enables fast response times and precision.
- Various coil variants allow adaptation to different voltage requirements.
- Easy installation via connection plates with through holes.
- Valve function – 3/2 closed (monostable)
- Actuation type – electric
- Width - 30 mm
- Normal nominal flow rate – 50 l/min.
- Operating pressure – 1 to 16 bar
- Design structure – disc seat
- Reset type – mechanical spring
- Protection class - IP65
- Nominal width - 1.3 mm
- Grid dimension - 42 mm
- Exhaust air function – cannot be throttled
- Based on standard - ISO 15218
- Sealing principle – soft
- Installation position – any
- Manual override - push button
- Control type – direct
- Flow direction – non-reversible
- Coverage – negative coverage
- Switch-off time – 9 ms
- Switch-on time – 11 ms
- Duty cycle - 100%
- Permissible voltage fluctuations - ± 10%
- Operating medium – compressed air according to ISO 8573-1:2010 [7:4:4]
- Note on operating/control medium – Oiled operation possible (required for further operation)
- Corrosion resistance class (KBK) - 2 – moderate corrosion stress
- Medium temperature: –15 to +80 °C
- Ambient temperature: –15 to +50 °C
- Electrical connection – connection diagram form A according to EN 175301-803 (DIN EN 175301-80)
- Mounting type – on connection plate with through hole
- Pneumatic connection 1 – connection plate
- Pneumatic connection 2 – connection plate
- Pneumatic connection 3 – not assigned / not connected
- Material information – RoHS compliant
- CE mark – in accordance with the EU Low Voltage Directive
- Permissible frequency fluctuations - ± 10%
