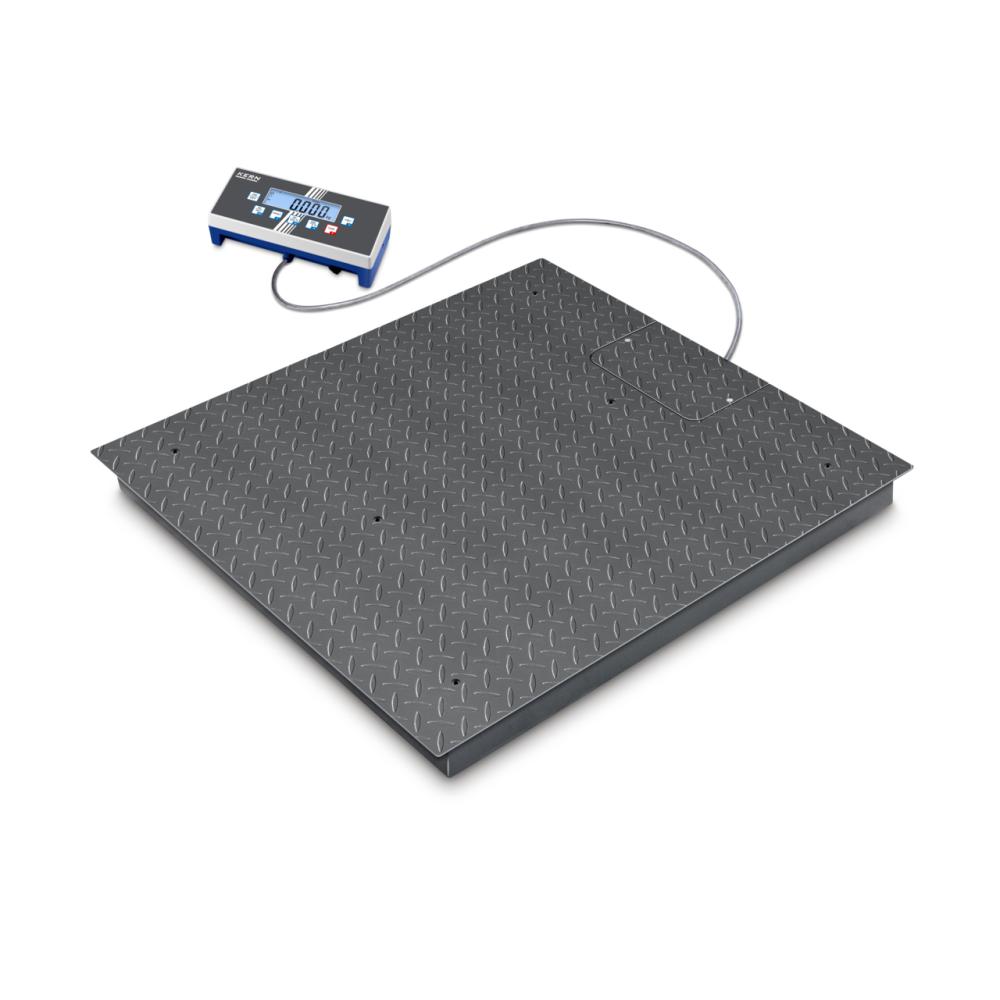

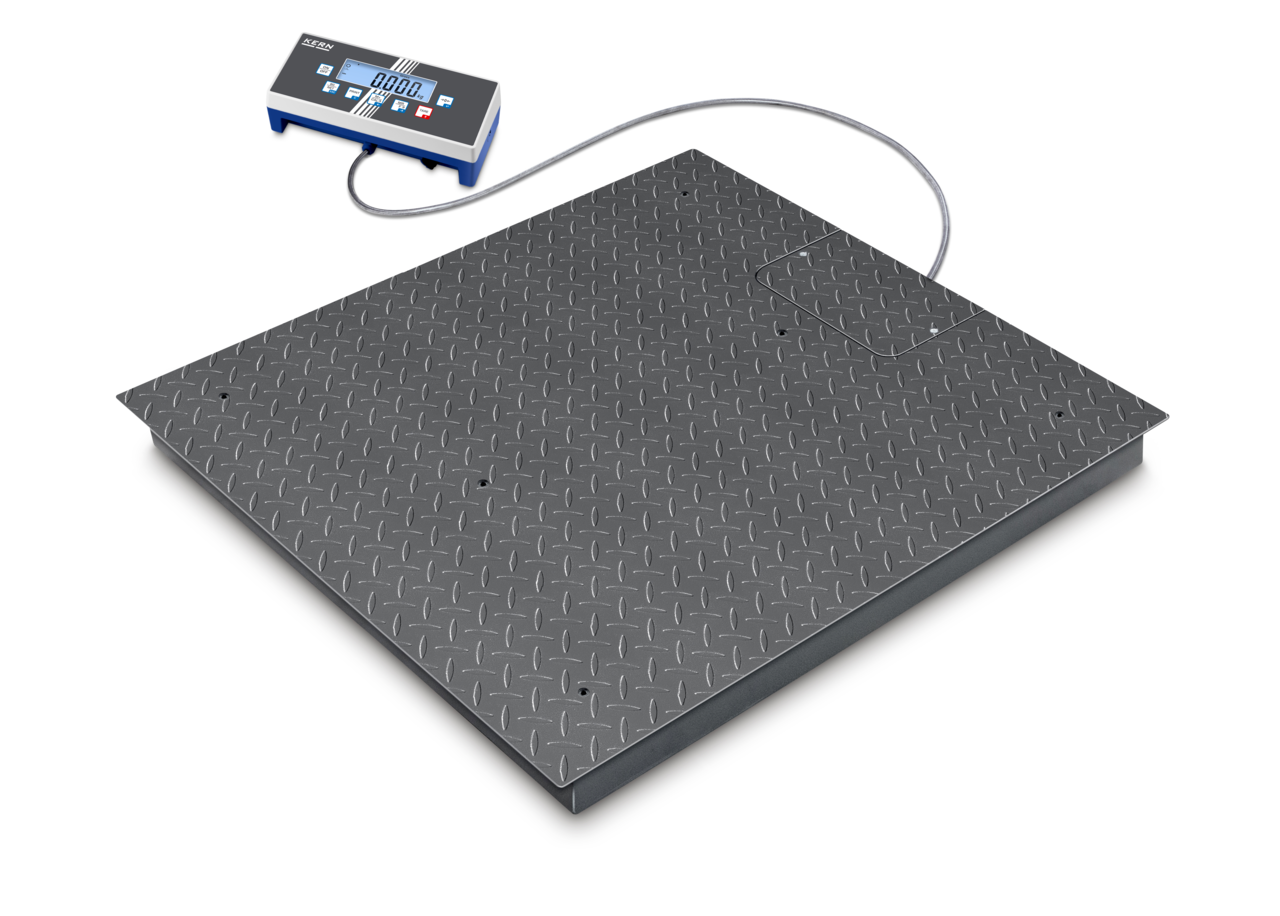

Product Description
- The floor scale as a dual-range scale is ideal when high maximum loads are to be weighed, but a high resolution cannot be dispensed with in the lower load range.
- The scale is equipped with interfaces such as RS-232, USB, WLAN and Bluetooth and can therefore be easily integrated into existing networks for simple data exchange between the scale and PC or printer.
- The weighing platform is made of non-slip steel chequer plate, with four silicone-coated steel load cells and IP67 dust and splash protection.
- Convenient levelling of the weighbridge and access to the junction box from above are possible.
- The floor scale is supplied with a table base and wall bracket for the analyser as standard.
- Weighing range - 300 to 3000 kg
- Readability - 0.1 to 1 kg
- Minimum load - 2 to 20 kg
- Net weight - 130, 150 kg
- Protection class - IP67
- Digit height - 25 mm
- Cable length evaluation unit - approx. 5 m
- Permissible ambient temperature range - from -10 °C to +40 °C
