Product Description

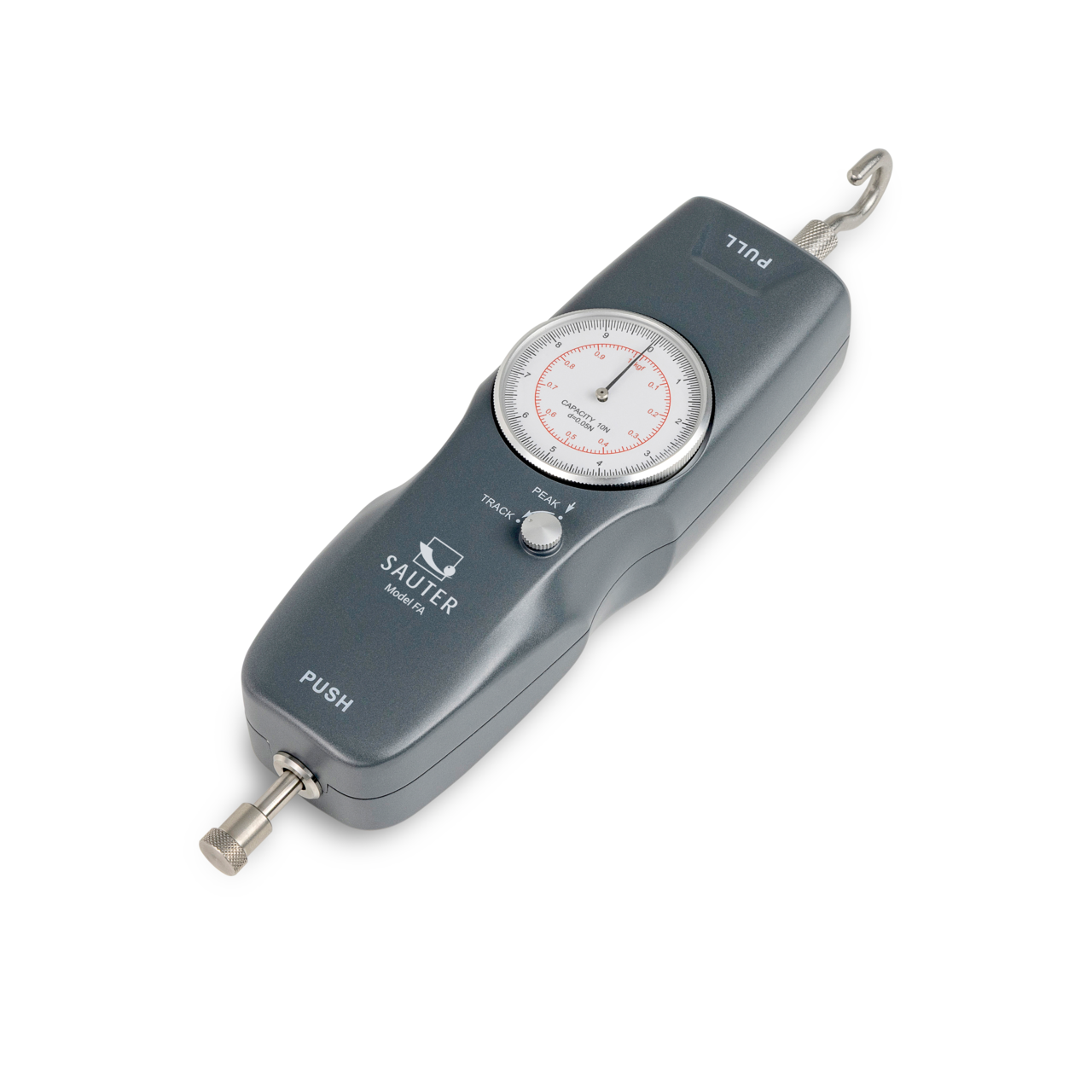

- The mechanical force gauge is suitable for measuring tensile and compressive forces
- Force gauge with dual scale, displaying Newton and kilogram values simultaneously
- Rotatable readout unit for easy adjustment of the device; display can be reset to zero at the touch of a button
- with peak hold function via a trailing pointer
- Can be mounted on all manual test benches
- Supplied with a sturdy carrying case, an extension rod and standard attachments (see additional image)
- Calibration certificates for tensile and compressive force measurement can be purchased separately on request
- Housing material – aluminium
- Dimensions (W x D x H) – 233 x 66 x 53 mm
- Measuring range – 10 to 500 N
- Readability [d] – from 0.05 to 2.5 N
- Accuracy – 1% of the maximum value
- Ambient temperature – from 0 to 40 °C
- Peak function - yes
- Length of extension rod - 90 mm
- Thread - M 6
- Weight - 0.60 kg
- Calibration certificate in accordance with ISO, tensile and compressive forces measured separately
the calibration of the tensile and compressive force measurement can be purchased in addition on request
