Item No.:
3615x083009a
Product Description
- Phase tester for quick testing of the L conductor on electrical connections.
- Can be used for measurements on EU standard sockets
- 4-year guarantee
- Reliable and fast phase test
- Determines the L conductor of electrical installations
- Simple and proven testing aid
- Small design with convenient pocket clip, suitable for the shirt pocket and any toolbox
- High-quality, robust construction with VDE GS-tested design

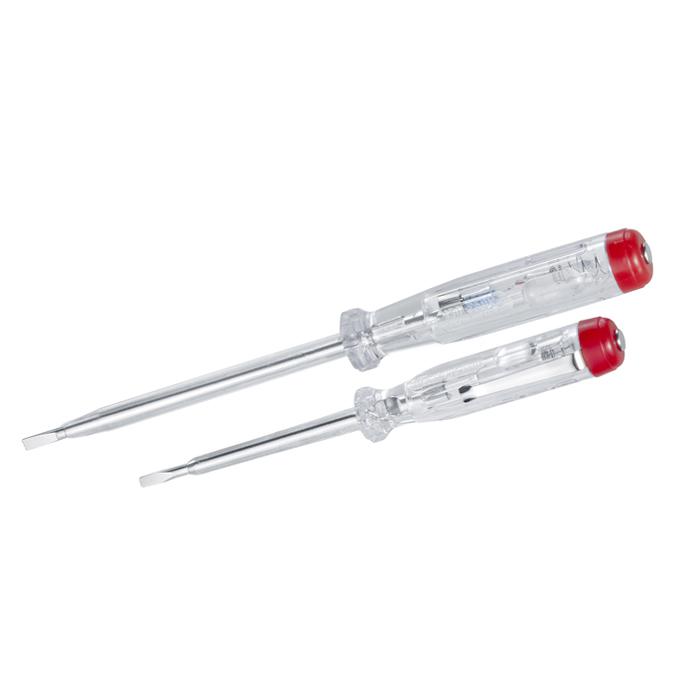

- Two phase testers in different lengths
- Voltage range: 150 - 250 V
- Frequency range: 50 - 500 Hz
- Display: Signal light
- Degree of soiling: 2
- Humidity: max. 80% relative humidity (non-condensing)
- Protection class: IP20
- Storage temperature: -10°C ... 70°C
- Operating temperature: -10°C ... 50°C
- Dimensions short phase tester (W x H x D): 16 x 140 x 18 mm
- Dimensions of long phase tester (W x H x D): 18 x 190 x 18 mm
- Weight of short phase tester: 18 g
- Weight of long phase tester: 29 g
For more information and pictures from the device, and its use, please refer to our PDF.
