Item No.:
365047428002
Product Description

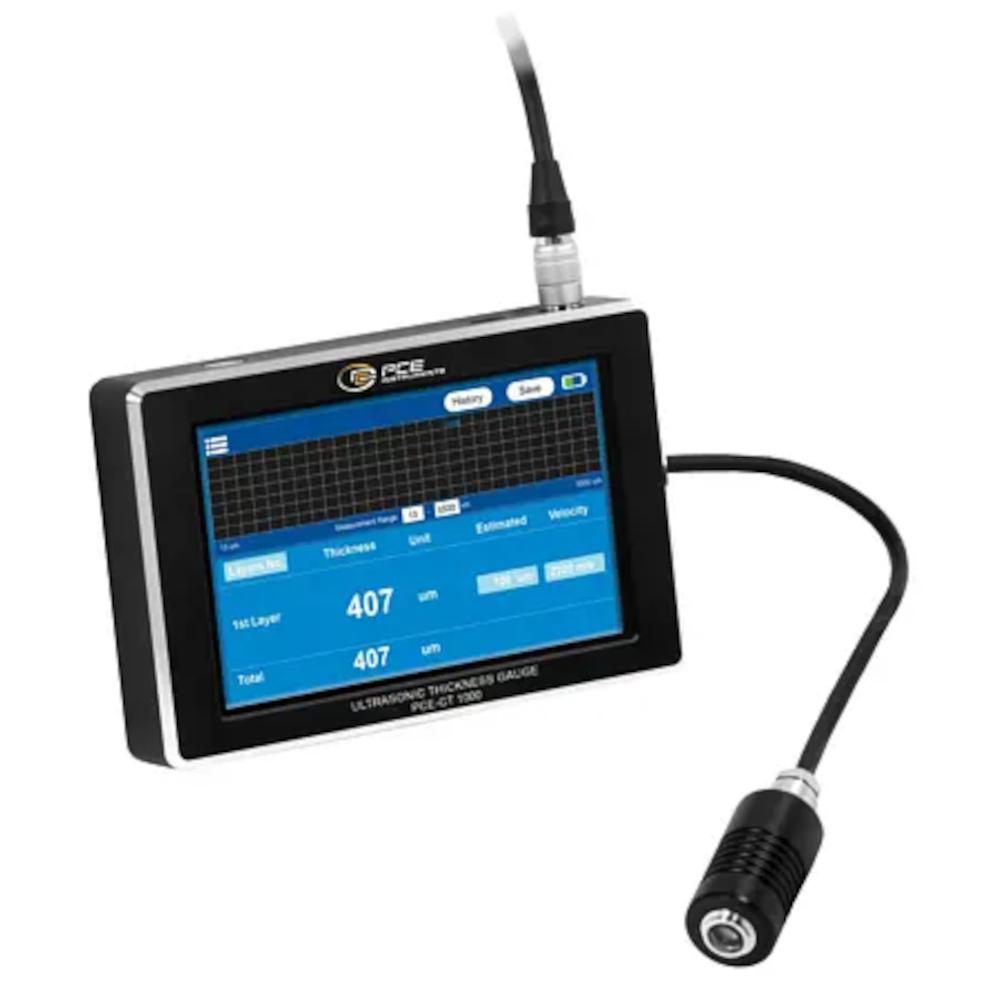

- The ultrasonic coating thickness gauge is suitable for testing paint finishes, polymer coatings and multi-layer coating systems on suitable substrates such as plastic, wood, glass and metal.
- The device features an external ultrasonic sensor, an IPS colour display with waveform display, and a multi-layer measurement function.
- The material-specific sound velocity can be set individually or selected from 21 pre-programmed material settings.
- In addition to continuous measurement, the device features an internal memory capable of storing up to 999 data sets. The stored measurement values can be read out, analysed and exported using the PC software. A suitable coupling agent is required for measurement.
- General technical specifications – Display type – IPS
- Display size – 5 inches
- Display resolution – 800x480 inches
- Storage medium – Internal memory
- Storage capacity – 999 data records
- Interface – USB-C
- Standard(s) – GB/T 37361-2019, JJF1126-2004
- Automatic switch-off from ... to 1 ... 30 mins.
- Adjustable sound velocity – 1000 … 9999 m/s
- Menu language – English (US), English (UK), Chinese
- Protection class (device) IP20
- Power supply – 5 V DC
- Plug type – Euro plug
- Battery – 1 x 3.7 V internal, lithium-ion polymer battery
- Capacity – 4000 mAh
- Operating conditions – 0 to 50 °C, 0 to 80 per cent relative humidity
- Storage conditions – 0 … 50 °C, 0 … 80 % r. F.
- Dimensions (L x W x H) 97 x 143 x 22 mm
- Weight – 371 g
- MATERIAL THICKNESS – Measurement range – 0 … 14,800 µm
- Resolution – 1 µm
- Accuracy – ±3% of the mean value + 3 µm
- COATING THICKNESS – Measurement range – 13 … 5500 µm
- Resolution – 1 µm
- Accuracy – ±3% of the mean value + 3 µm
- SENSOR - Type - Ultrasonic
- Frequency – 15 MHz
- Min. measurement area – 6 mm
- Cable length – 75 cm
- Dimensions – ø22 x 43
- SCOPE OF DELIVERY – 1 x PCE-CT 1000 coating thickness gauge
- 1 x ultrasonic sensor
- 1 x standard plate
- 1 x USB-C cable
- 1 x carrying case
- 1 x coupling gel
- 1 x PC software (in the downloads section)
