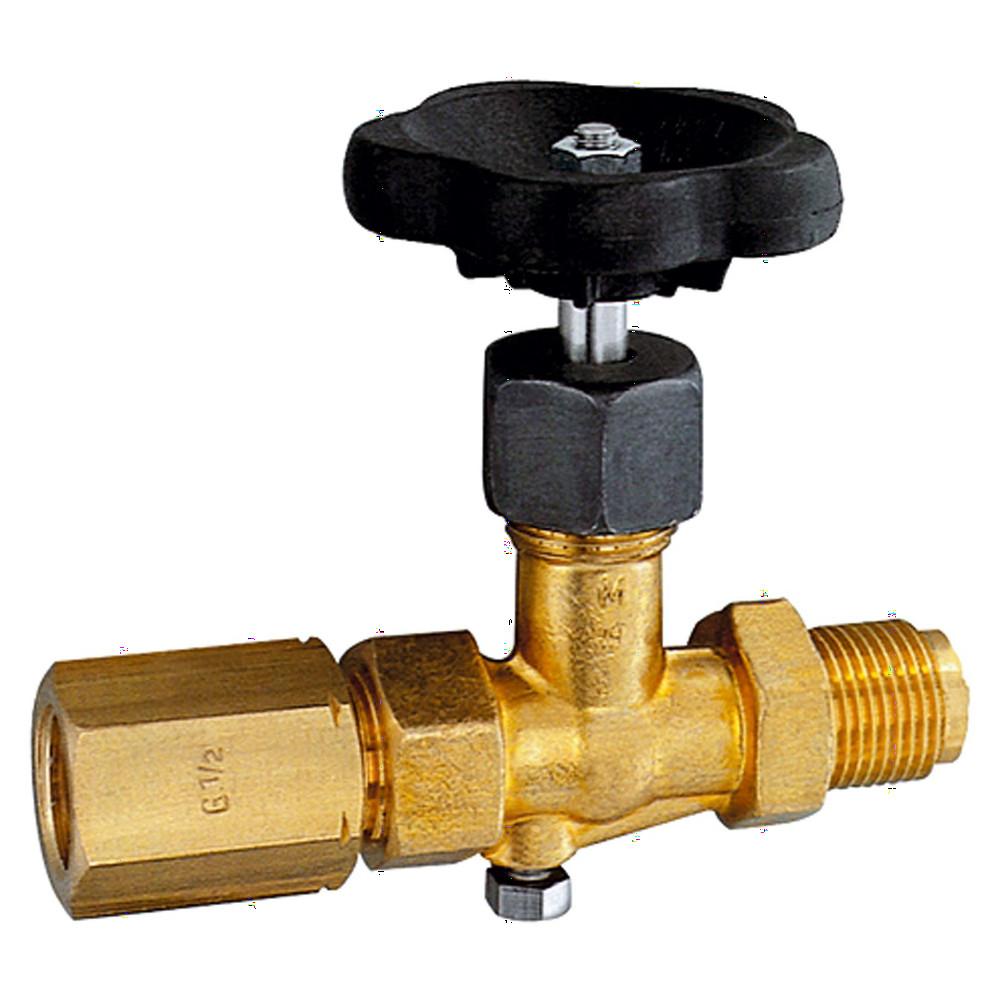

Pressure gauge shut-off valve - pin clamp - brass - G 1/2 - PN 250 bar - SW 27 mm - DIN16270
| € 43,43 |
| Price incl. VAT |
| plus € 29,00 shipping costs |
Delivery time 7-10 working days
Do you have any questions?
We would like to assist you!
We would like to assist you!
Item No.:
855190901690
Product Description
- The pressure gauge shut-off valve with spiget and clamp sleeve in accordance with DIN 16270 is used to shut off and safely relieve pressure from pressure gauges in compressed air and liquid systems.
- The Riegler Mano shut-off valve (item no. 102662) with spiget and clamp sleeve in accordance with DIN 16270 is made of high-quality brass and has a G 1/2 connection.
- It is used for the safe shut-off and venting of connected pressure gauges, thus enabling protected operation and easy maintenance of pressure measuring devices.
- Its standardised design makes it versatile for use in compressed air, gas or liquid systems.
- Housing - brass
- Sealing material - PTFE
- Handwheel - plastic
- Valve spindle - stainless steel
- Valve cone - stainless steel
- Cap nut - steel
- Clamping sleeve - steel
- Operating temperature - -10 °C to 120 °C
- Wrench width - 27 mm
- PN - 250 bar
- Design - Spigot / clamping sleeve
- Thread 1 - G 1/2 male
- Thread 2 - G 1/2 female
- Price per item
