Product Description

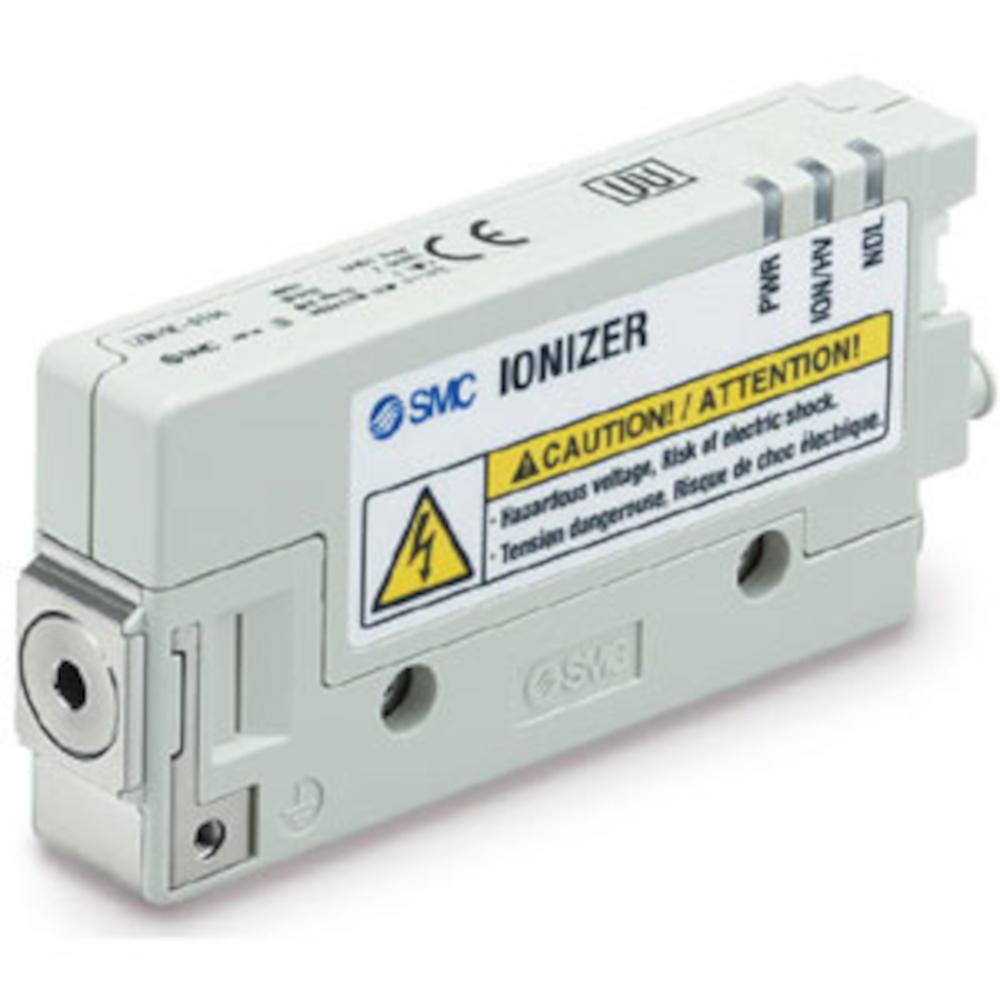

- The SMC IZN10E ioniser is used in electronics manufacturing to prevent defects caused by electrostatic charge.
- It is suitable for applications involving the neutralisation of static electricity on printed circuit boards, lenses, packaging films, plastic parts and conveyor systems.
- The ioniser supports processes in which the aim is to prevent dust build-up and electrostatic-related production disruptions.
- Typical applications include automated manufacturing and packaging processes.
- The SMC IZN10E ioniser in a nozzle design specifically dissipates static electricity whilst also helping to remove dust particles.
- The compact ioniser features an integrated high-voltage power supply, meaning that no external high-voltage cable is required.
- A maintenance alert function monitors the condition of the electrode needles and helps ensure maintenance is carried out as and when required.
- The design allows for easy disassembly for maintenance work without the need for tools.
- Housing material – ABS, stainless steel
- Nozzle material – Stainless steel
- Electrode needle material – tungsten
- Type of ion generation – corona discharge
- Electrode voltage type – high-frequency AC version
- Supply voltage – 2.5 kVAC
- Offset-voltage nozzle in energy-saving version – ±10 V
- High-flow offset voltage nozzle – ±15 V
- Medium compressed air discharge – compressed air (dry, clean compressed air)
- Operating pressure (compressed air outlet) – 0.05 to 0.7 MPa
- Hose connection diameter, compressed air outlet – 6 mm, 1/4"
- Supply voltage – 24V DC ±10 %
- Current consumption – max. 80 mA
- Input signal – connection to +24 V, voltage range 19 V DC for power supply, current consumption 5 mA or less
- Output signal – Max. load current 40 mA, residual voltage max. 1 V (load current at 40 mA)
- Effective operating range – 20 to 500 mm
- Ambient temperature – 0 to 55 °C
- Ambient humidity – 35 to 65% relative humidity (no condensation)
- Shock resistance – 100 m/s²
- Standards/Directives – CE, UL, CSA, RoHS
- Length (excluding nozzle) – 100 mm
- Height – 46 mm
- Width – 16 mm
- Housing weight – 70 or 75 g
