Product Description
- The SMC IZT43 nozzle ioniser is used for the targeted dissipation of electrostatic charges in industrial manufacturing and handling processes.
- It is suitable for applications where electrostatic discharges, dust accumulation or damage to sensitive products need to be prevented.
- The ioniser can be used in areas with heightened ESD control requirements.
- The design of the nozzle allows for localised deionisation at individual process points.

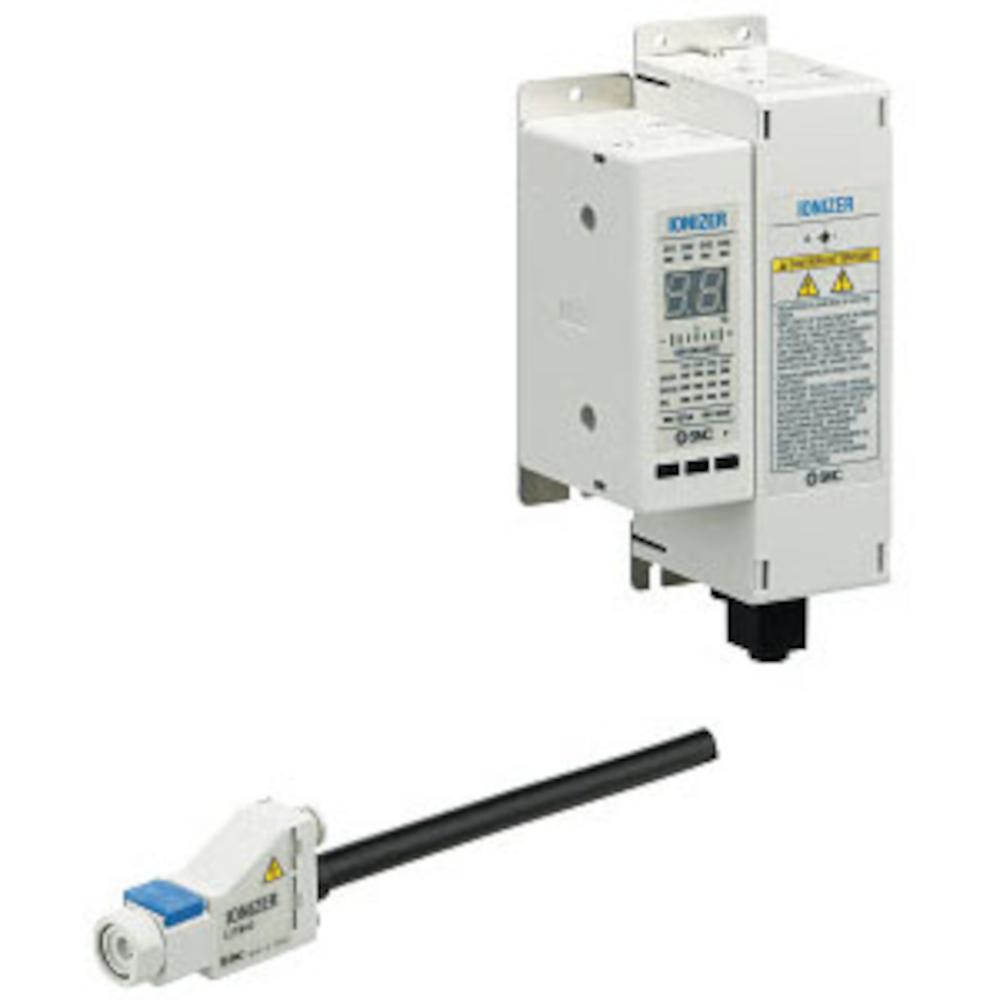

- The SMC IZT43 nozzle ioniser is an ioniser with a separate controller and a separate high-voltage power supply module for neutralising static electricity.
- It operates using AC ionisation and features an automatic balancing sensor to maintain a constant offset voltage.
- Low-maintenance electrode needles and the detection of contaminated electrode needles ensure reliable operation.
- The ioniser is available as an option with IO-Link communication and an ion balance display.
- Material Controller – ABS cover, aluminium / silicone rubber switch
- Material of high-voltage power supply module – ABS, aluminium
- Material: Nozzle and housing – PBT, stainless steel / Emitter cassette – PBT / Emitter – tungsten / High-voltage cable – silicone rubber, PVC, stainless steel
- Type of ion generation – corona discharge
- Electrode voltage type – AC, DC
- Applied voltage – ±6000 V
- Offset voltage – max. ±30
- Medium – Compressed air (dry, clean compressed air)
- Operating pressure – Max. 0.7 MPa
- Hose connection – Ø 6 mm
- Current consumption – max. 0.4 A (when connected, max. +0.4 A per ioniser)
- Supply voltage – 24V DC ±10 %
- Input signal PNP – connection to DC (+), voltage range 19 V DC for supply voltage, current consumption max. 5 mA
- Output signal PNP – Max. load current 100 mA, residual voltage max. 1 V (load current at 100 mA)
- IO-Link device – voltage range 18 to 30 V DC, current consumption max. 100 mA
- Functions – Auto-Balance, maintenance logging, detection of abnormally high voltages (ion generation stops if a fault is detected) and ion generation stop input
- Effective distance for dissipating static electricity – 50 to 2000 mm
- Ambient and medium temperature – 0 to 40 °C
- Air humidity – 35 to 65% relative humidity (no condensation)
- Standards/Directive – CE marking (EMC Directive)
- IO-Link version – V1.1
- Configuration file format: IO-Link – IODD file
- IO-Link to COM2 transmission speed (38.4 kbps)
- Min. cycle time (IO-Link) – 8.0 ms
- IO-Link process data length – input data 13 bytes, output data 9 bytes
- Length of high-voltage cable – 3 m
- Ioniser length – 53 mm
- Ioniser height – 31.5 mm
- Wide ionisers – 16 mm
- Height of controller/high-voltage power supply module – 197 mm
- Wide controller/high-voltage power supply module – 99 mm
- Low-profile controller/high-voltage power supply module – 75 mm
- Weight – 1330 or 1360 g
