Product Description
- The SMC CY3R rodless cylinder is used for linear motion applications in the automation and manufacturing industries.
- It is suitable for applications where an external guide, such as a linear guide, is used.
- Direct mounting allows for compact integration into machines and systems.
- Typical applications include positioning and handling tasks with defined permissible loads and driving forces.
- The CY series can be used in a wide variety of environments, as there are no external leaks.
- Cylinders with magnetic couplings are space-saving and offer a wide range of applications.

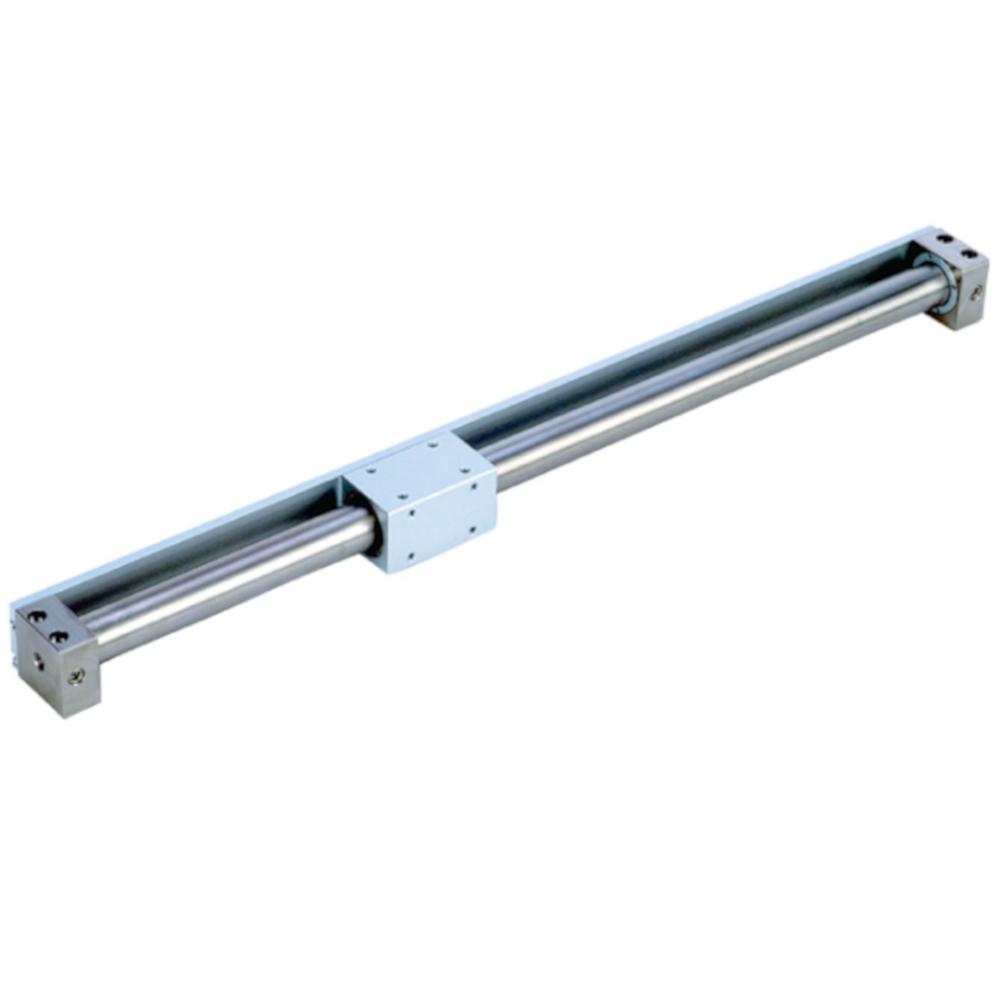

- The CY3R series rodless cylinder from SMC is equipped with a magnetic coupling and mounting brackets for direct mounting.
- The weight of the cylinder has been reduced thanks to the redesign of the housing and cylinder head, as well as the use of a magnetic coupling.
- A dirt scraper maintains lubrication on the piston and ensures a lubricating film.
- The extended piston guide strip on the housing side ensures smooth movement.
- The CY3 cylinder is equipped with elastic damping and is lubricated for the life of the cylinder.
- Integrated guides allow the cylinder to be subjected to loads and torque.
- Housing material – aluminium, hard anodised
- End cap material – aluminium, chemically nickel-plated
- Cylinder tube material – Stainless steel
- Piston material – brass, chemically nickel-plated (for piston diameters from 6 to 15 mm) / aluminium, chromated (for piston diameters from 20 mm)
- Damping disc material – polyurethane
- Seal material – NBR
- Medium - Compressed air
- Test pressure - 10.5 bar
- Max. operating pressure – 7 bar
- Minimum operating pressure – 1.2 to 1.6 bar
- Ambient and media temperature - -10 to 60°C (no freezing)
- Piston speed – 50 to 500 mm/s
- Damping – elastic damping
- Lubrication – Not required (lubricated for life)
- Magnetic holding force – 19.6 to 2256 N
- Pneumatic connection - M3 x 0.5 / M5 x 0.8 / 1/8" / 1/4"
- Length – 116 to 1188 mm
- Width – 19 to 97 mm
- Height – 26 to 105 mm
- Weight – 102 to 9140 g
