Product Description
- The SMC CU-D pneumatic cylinder is used in pneumatic applications where direct mounting without separate mounting parts is required.
- It is particularly suitable for systems and machines where installation space is limited.
- Thanks to the various mounting options, it can be flexibly integrated into different installation positions.
- It is used when a double-acting stroke is required for automated movements.

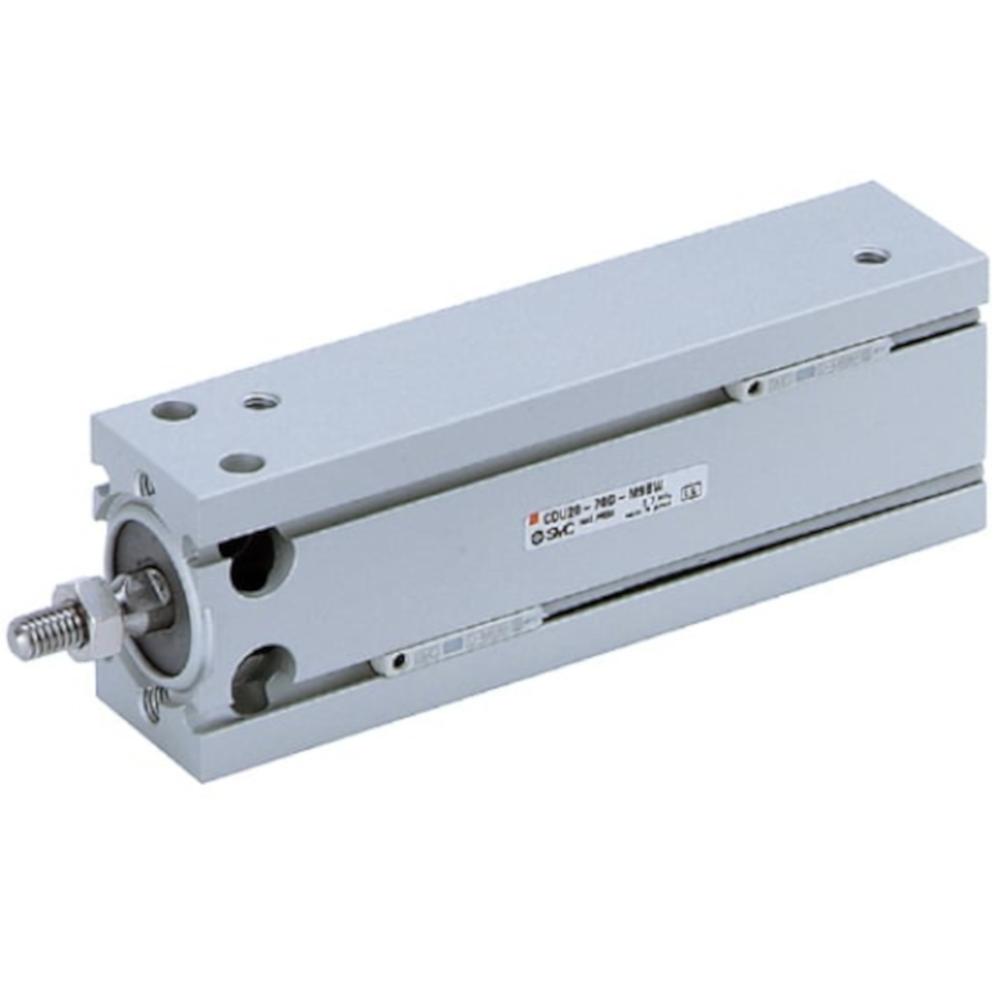

- The SMC CU-D series cylinder for direct mounting is a space-saving, double-acting pneumatic cylinder with several mounting surfaces suitable for direct mounting.
- The multi-faceted rectangular housing allows for direct mounting without additional fasteners.
- This allows the mounting surface to be chosen freely, which supports a particularly compact system design.
- Cylinder tube material – aluminium, hard anodised
- Material of cylinder head and piston – brass (for piston diameters of 6 and 10 mm) / aluminium (for piston diameters of 16 to 32 mm)
- Piston rod material – stainless steel
- Damper material – urethane
- Seal material – NBR
- Medium - Compressed air
- Test pressure - 10.5 bar
- Max. operating pressure – 7 bar
- Minimum operating pressure – 0.5 to 1.2 bar
- Ambient and media temperature - -10 to 70°C (no freezing)
- Lubrication – lubricated for life
- Piston speed – 50 to 500 mm/s
- Damping – elastic
- Pneumatic connection – M5 (G 1/8" for piston Ø 32 mm)
- Thread tolerance – JIS Class 2
- Piston rod thread – external thread M3 to M10 x 1.25
- Piston rod diameter – 3 to 12 mm
- Length – 51 to 119 mm
- Width – 22 to 62 mm
- Height – 13 to 40 mm
- Weight – 22 to 478 g
