Product Description
- The SMC CU-S pneumatic cylinder is used in pneumatic applications where compact direct mounting is required.
- It is suitable for machines and systems with limited installation space.
- Due to the spring force during extension, it is suitable for applications where an automatic outward movement is required.
- It is used when linear movements are to be achieved using compressed air.
- The various mounting orientations allow for flexible integration into different system designs.

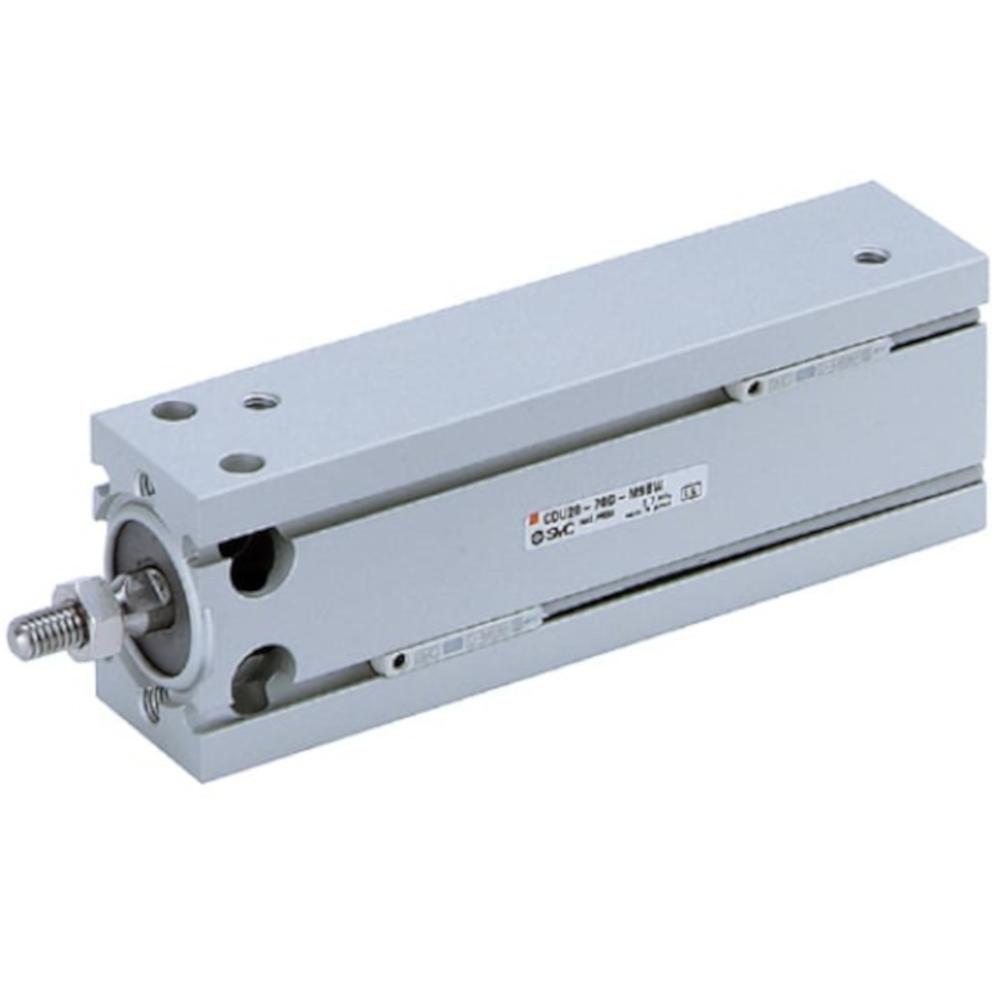

- The SMC CU-T series cylinder for direct mounting is a space-saving pneumatic cylinder with several mounting surfaces suitable for direct mounting.
- The multi-sided rectangular housing allows for installation without additional fasteners.
- The cylinder is single-acting and is extended by spring force.
- Cylinder tube material – aluminium, hard anodised
- Cylinder cap material – chemically nickel-plated brass (for piston diameters of 6 and 10 mm) / chromated aluminium (for piston diameters of 16 to 32 mm)
- Piston material – brass (for piston diameters of 6 and 10 mm) / chromated aluminium (for piston diameters of 16 to 32 mm)
- Piston rod material – stainless steel
- Damper material – urethane
- Seal material – NBR
- Medium - Compressed air
- Test pressure - 10.5 bar
- Max. operating pressure – 7 bar
- Minimum operating pressure – 1.3 to 2 bar
- Ambient and media temperature - -10 to 70°C (no freezing)
- Lubrication – lubricated for life
- Piston speed – 50 to 500 mm/s
- Damping – elastic
- Pneumatic connection – M5 (G 1/8" for piston Ø 32 mm)
- Thread tolerance – JIS Class 2
- Piston rod thread – external thread M3 to M10 x 1.25
- Piston rod diameter – 3 to 12 mm
- Length – 56 to 104 mm
- Width – 22 to 62 mm
- Height – 13 to 40 mm
- Weight – 22 to 347 g
