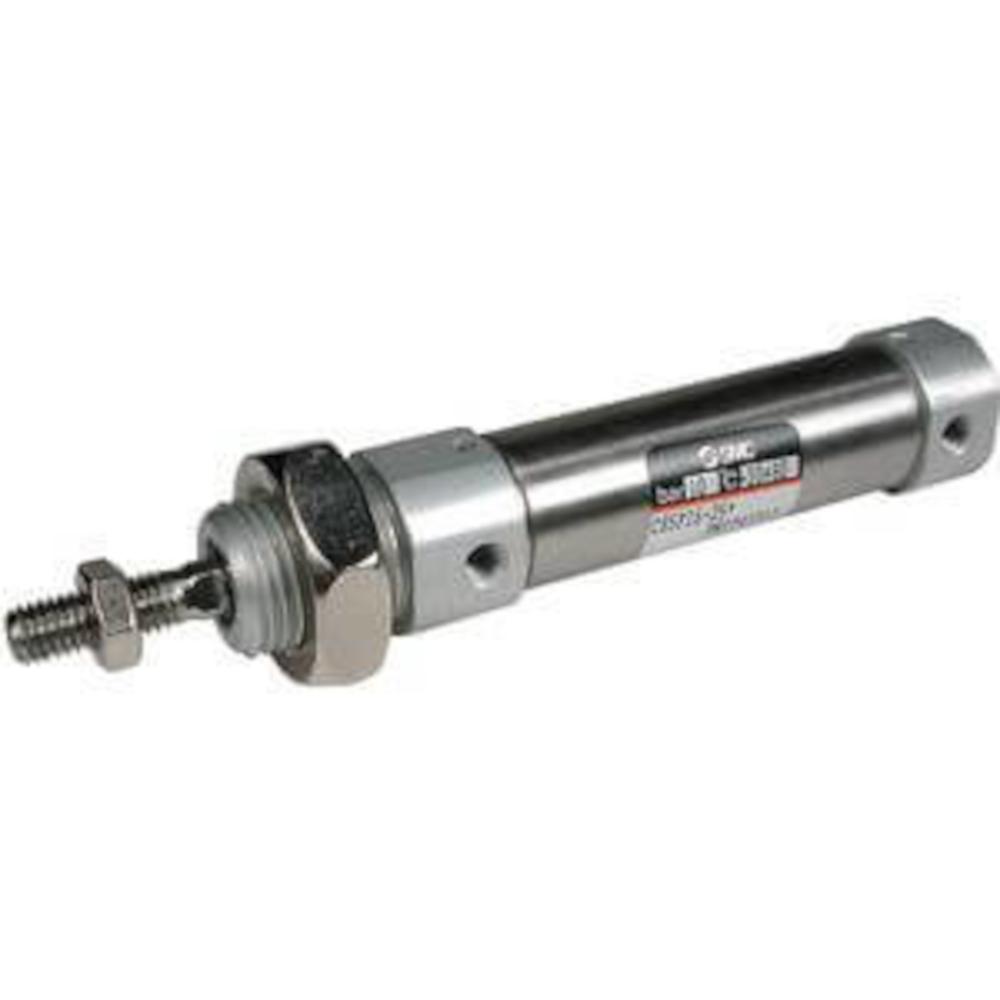

Standard round cylinder CD85N-B – ISO6432 – double-acting – integrated clevis – built-in magnet

Product Description
  • The CD85N-B compressed air cylinder is used in applications that require position feedback via signal transmitters.
  • It is suitable for automation solutions, in mechanical engineering, and in handling and manufacturing processes.
  • It is particularly advantageous in situations where space is limited and compact design with precise motion control is required.
Description
  • The CD85N-B compressed air cylinder is double-acting with a single-sided piston rod, elastic damping and integrated clevis.
  • It has a built-in magnet and is designed for signal transmitters with tape mounting.
  • The housing is made of anodised aluminium, the piston rod of hardened stainless steel.
Technical Data
  • Cylinder head/cylinder cover material – aluminium
  • Housing material – stainless steel
  • Design – pneumatic
  • Mode of operation – double-acting; single-sided piston rod
  • Medium - Compressed air
  • Complies with ISO 6432 and CETOP RP52P
  • Test pressure - 15 bar
  • Max. operating pressure - 10 bar
  • Min. operating pressure - 0.5 bar (piston Ø 16, 20, 25 mm) / 0.8 bar (piston Ø 10, 12 mm) / 1 bar (piston Ø 8 mm)
  • Ambient and medium temperature - Without signal transmitter -20°C to 80°C (not frozen) / With signal transmitter -10°C to 60°C (not frozen)
  • Lubricating grease – Not required (lubricated for life)
  • Piston speed – 50 to 1500 mm/s
  • Damping – elastic damping
  • Signal transmitter mounting design – tape mounting
  • Permissible kinetic energy - 0.02 to 0.4 J
  • Piston diameter – 8 to 25 mm
  • Stroke - 10 to 1000 mm
  • Width/depth (spanner size) – 19 to 32 mm
  • Length - 96 to 1137 mm
  • Weight - 59.1 to 1378 g
  • Price per unit
show more...
show less...
From € 58,96
Price incl. VAT
plus € 29,00 shipping costs
In 74 variations available
Please Choose Version...

Do you have any questions?
We would like to assist you!
verkauf@esska.de
Versions: (74)
Narrow down your selection
Piston diameter
Stroke
Permissible kinetic energy
Part no.
Type
show all 74 implementations
Anzeigen als list Table
Article No. Piston diameter Stroke Permissible kinetic energy Part no. Type Price incl. VAT
206100018909 8 mm 10 mm 0.02 J 00018909 CD85N8-10-B
€ 58,96
Price incl. VAT
plus € 29,00 shipping costs
206100018936 8 mm 25 mm 0.02 J 00018936 CD85N8-25-B
€ 59,56
Price incl. VAT
plus € 29,00 shipping costs
206100018951 8 mm 40 mm 0.02 J 00018951 CD85N8-40-B
€ 60,19
Price incl. VAT
plus € 29,00 shipping costs
206100018955 8 mm 50 mm 0.02 J 00018955 CD85N8-50-B
€ 60,62
Price incl. VAT
plus € 29,00 shipping costs
206100018962 8 mm 80 mm 0.02 J 00018962 CD85N8-80-B
€ 61,86
Price incl. VAT
plus € 29,00 shipping costs
206100018921 8 mm 100 mm 0.02 J 00018921 CD85N8-100-B
€ 62,79
Price incl. VAT
plus € 29,00 shipping costs
206100017163 8 mm 200 mm 0.02 J 00819922 CD85N8-200-B-X2018
€ 69,61
Price incl. VAT
plus € 29,00 shipping costs
206100017237 10 mm 10 mm 0.03 J 00017163 CD85N10-10-B
€ 58,96
Price incl. VAT
plus € 29,00 shipping costs
206100017261 10 mm 25 mm 0.03 J 00017237 CD85N10-25-B
€ 59,56
Price incl. VAT
plus € 29,00 shipping costs
206100017277 10 mm 40 mm 0.03 J 00017261 CD85N10-40-B
€ 60,19
Price incl. VAT
plus € 29,00 shipping costs
206100017310 10 mm 50 mm 0.03 J 00017277 CD85N10-50-B
€ 60,62
Price incl. VAT
plus € 29,00 shipping costs
206100017187 10 mm 80 mm 0.03 J 00017310 CD85N10-80-B
€ 61,86
Price incl. VAT
plus € 29,00 shipping costs
206100017322 10 mm 100 mm 0.03 J 00017187 CD85N10-100-B
€ 62,79
Price incl. VAT
plus € 29,00 shipping costs
206100017397 10 mm 200 mm 0.03 J 00765176 CD85N10-200-B-X2018
€ 69,61
Price incl. VAT
plus € 29,00 shipping costs
206100017432 10 mm 300 mm 0.03 J 00812812 CD85N10-300-B-X2018
€ 76,43
Price incl. VAT
plus € 29,00 shipping costs
206100017455 10 mm 400 mm 0.03 J 00813256 CD85N10-400-B-X2018
€ 83,25
Price incl. VAT
plus € 29,00 shipping costs
206100017486 12 mm 10 mm 0.04 J 00017322 CD85N12-10-B
€ 65,15
Price incl. VAT
plus € 29,00 shipping costs
206100017342 12 mm 25 mm 0.04 J 00017397 CD85N12-25-B
€ 66,29
Price incl. VAT
plus € 29,00 shipping costs
206100017350 12 mm 40 mm 0.04 J 00017432 CD85N12-40-B
€ 67,44
Price incl. VAT
plus € 29,00 shipping costs
206100017369 12 mm 50 mm 0.04 J 00017455 CD85N12-50-B
€ 68,15
Price incl. VAT
plus € 29,00 shipping costs
206100017381 12 mm 80 mm 0.04 J 00017486 CD85N12-80-B
€ 70,43
Price incl. VAT
plus € 29,00 shipping costs
206100017503 12 mm 100 mm 0.04 J 00017342 CD85N12-100-B
€ 71,86
Price incl. VAT
plus € 29,00 shipping costs
206100017648 12 mm 125 mm 0.04 J 00017350 CD85N12-125-B
€ 73,73
Price incl. VAT
plus € 29,00 shipping costs
206100017730 12 mm 160 mm 0.04 J 00017369 CD85N12-160-B
€ 76,32
Price incl. VAT
plus € 29,00 shipping costs
206100017777 12 mm 200 mm 0.04 J 00017381 CD85N12-200-B
€ 79,33
Price incl. VAT
plus € 29,00 shipping costs
206100017853 12 mm 300 mm 0.04 J 00765178 CD85N12-300-B-X2018
€ 86,15
Price incl. VAT
plus € 29,00 shipping costs
206100017529 12 mm 400 mm 0.04 J 00765180 CD85N12-400-B-X2018
€ 92,97
Price incl. VAT
plus € 29,00 shipping costs
206100017563 16 mm 10 mm 0.09 J 00017503 CD85N16-10-B
€ 71,06
Price incl. VAT
plus € 29,00 shipping costs
206100017585 16 mm 25 mm 0.09 J 00017648 CD85N16-25-B
€ 72,60
Price incl. VAT
plus € 29,00 shipping costs
206100017625 16 mm 40 mm 0.09 J 00017730 CD85N16-40-B
€ 74,03
Price incl. VAT
plus € 29,00 shipping costs
206100017888 16 mm 50 mm 0.09 J 00017777 CD85N16-50-B
€ 74,97
Price incl. VAT
plus € 29,00 shipping costs
206100018050 16 mm 80 mm 0.09 J 00017853 CD85N16-80-B
€ 77,88
Price incl. VAT
plus € 29,00 shipping costs
206100018146 16 mm 100 mm 0.09 J 00017529 CD85N16-100-B
€ 79,85
Price incl. VAT
plus € 29,00 shipping costs
206100018198 16 mm 125 mm 0.09 J 00017563 CD85N16-125-B
€ 82,22
Price incl. VAT
plus € 29,00 shipping costs
206100018306 16 mm 160 mm 0.09 J 00017585 CD85N16-160-B
€ 85,54
Price incl. VAT
plus € 29,00 shipping costs
206100017904 16 mm 200 mm 0.09 J 00017625 CD85N16-200-B
€ 89,35
Price incl. VAT
plus € 29,00 shipping costs
206100017928 16 mm 300 mm 0.09 J 00765183 CD85N16-300-B-X2018
€ 98,99
Price incl. VAT
plus € 29,00 shipping costs
206100017975 16 mm 400 mm 0.09 J 00765186 CD85N16-400-B-X2018
€ 108,60
Price incl. VAT
plus € 29,00 shipping costs
206100018022 20 mm 10 mm 0.27 J 00017888 CD85N20-10-B
€ 81,20
Price incl. VAT
plus € 29,00 shipping costs
206100018088 20 mm 25 mm 0.27 J 00018050 CD85N20-25-B
€ 83,04
Price incl. VAT
plus € 29,00 shipping costs
206100018112 20 mm 40 mm 0.27 J 00018146 CD85N20-40-B
€ 85,01
Price incl. VAT
plus € 29,00 shipping costs
206100018341 20 mm 50 mm 0.27 J 00018198 CD85N20-50-B
€ 86,24
Price incl. VAT
plus € 29,00 shipping costs
206100018542 20 mm 80 mm 0.27 J 00018306 CD85N20-80-B
€ 90,09
Price incl. VAT
plus € 29,00 shipping costs
206100018646 20 mm 100 mm 0.27 J 00017904 CD85N20-100-B
€ 92,65
Price incl. VAT
plus € 29,00 shipping costs
206100018710 20 mm 125 mm 0.27 J 00017928 CD85N20-125-B
€ 95,76
Price incl. VAT
plus € 29,00 shipping costs
206100018841 20 mm 160 mm 0.27 J 00017975 CD85N20-160-B
€ 100,21
Price incl. VAT
plus € 29,00 shipping costs
206100018357 20 mm 200 mm 0.27 J 00018022 CD85N20-200-B
€ 105,38
Price incl. VAT
plus € 29,00 shipping costs
206100018401 20 mm 250 mm 0.27 J 00018088 CD85N20-250-B
€ 111,59
Price incl. VAT
plus € 29,00 shipping costs
206100018402 20 mm 300 mm 0.27 J 00018112 CD85N20-300-B
€ 118,00
Price incl. VAT
plus € 29,00 shipping costs
206100018403 20 mm 400 mm 0.27 J 00765189 CD85N20-400-B-X2018
€ 131,56
Price incl. VAT
plus € 29,00 shipping costs
206100018404 20 mm 500 mm 0.27 J 00765193 CD85N20-500-B-X2018
€ 145,09
Price incl. VAT
plus € 29,00 shipping costs
206100018405 20 mm 600 mm 0.27 J 00765196 CD85N20-600-B-X2018
€ 158,65
Price incl. VAT
plus € 29,00 shipping costs
206100018406 20 mm 700 mm 0.27 J 00765197 CD85N20-700-B-X2018
€ 160,75
Price incl. VAT
plus € 29,00 shipping costs
206100018407 20 mm 800 mm 0.27 J 00838297 CD85N20-800-B-X2018
€ 174,30
Price incl. VAT
plus € 29,00 shipping costs
206100018408 20 mm 900 mm 0.27 J 00838306 CD85N20-900-B-X2018
€ 186,89
Price incl. VAT
plus € 29,00 shipping costs
206100018409 20 mm 1000 mm 0.27 J 00804226 CD85N20-1000-B-X2018
€ 197,62
Price incl. VAT
plus € 29,00 shipping costs
206100018410 25 mm 10 mm 0.4 J 00018341 CD85N25-10-B
€ 92,26
Price incl. VAT
plus € 29,00 shipping costs
206100018416 25 mm 25 mm 0.4 J 00018542 CD85N25-25-B
€ 94,53
Price incl. VAT
plus € 29,00 shipping costs
206100018419 25 mm 40 mm 0.4 J 00018646 CD85N25-40-B
€ 96,92
Price incl. VAT
plus € 29,00 shipping costs
206100018421 25 mm 50 mm 0.4 J 00018710 CD85N25-50-B
€ 98,46
Price incl. VAT
plus € 29,00 shipping costs
206100018425 25 mm 80 mm 0.4 J 00018841 CD85N25-80-B
€ 103,11
Price incl. VAT
plus € 29,00 shipping costs
206100018411 25 mm 100 mm 0.4 J 00018357 CD85N25-100-B
€ 106,32
Price incl. VAT
plus € 29,00 shipping costs
206100018413 25 mm 125 mm 0.4 J 00018401 CD85N25-125-B
€ 110,15
Price incl. VAT
plus € 29,00 shipping costs
206100018414 25 mm 160 mm 0.4 J 00018460 CD85N25-160-B
€ 115,54
Price incl. VAT
plus € 29,00 shipping costs
206100018415 25 mm 200 mm 0.4 J 00018500 CD85N25-200-B
€ 121,74
Price incl. VAT
plus € 29,00 shipping costs
206100018417 25 mm 250 mm 0.4 J 00018574 CD85N25-250-B
€ 129,49
Price incl. VAT
plus € 29,00 shipping costs
206100018418 25 mm 300 mm 0.4 J 00018605 CD85N25-300-B
€ 137,23
Price incl. VAT
plus € 29,00 shipping costs
206100018420 25 mm 400 mm 0.4 J 00765203 CD85N25-400-B-X2018
€ 150,79
Price incl. VAT
plus € 29,00 shipping costs
206100018422 25 mm 500 mm 0.4 J 00765206 CD85N25-500-B-X2018
€ 164,32
Price incl. VAT
plus € 29,00 shipping costs
206100018423 25 mm 600 mm 0.4 J 00765209 CD85N25-600-B-X2018
€ 165,17
Price incl. VAT
plus € 29,00 shipping costs
206100018424 25 mm 700 mm 0.4 J 00765211 CD85N25-700-B-X2018
€ 177,76
Price incl. VAT
plus € 29,00 shipping costs
206100018426 25 mm 800 mm 0.4 J 00765212 CD85N25-800-B-X2018
€ 190,33
Price incl. VAT
plus € 29,00 shipping costs
206100018427 25 mm 900 mm 0.4 J 00838476 CD85N25-900-B-X2018
€ 202,92
Price incl. VAT
plus € 29,00 shipping costs
206100018412 25 mm 1000 mm 0.4 J 00765199 CD85N25-1000-B-X2018
€ 215,49
Price incl. VAT
plus € 29,00 shipping costs
