Product Description

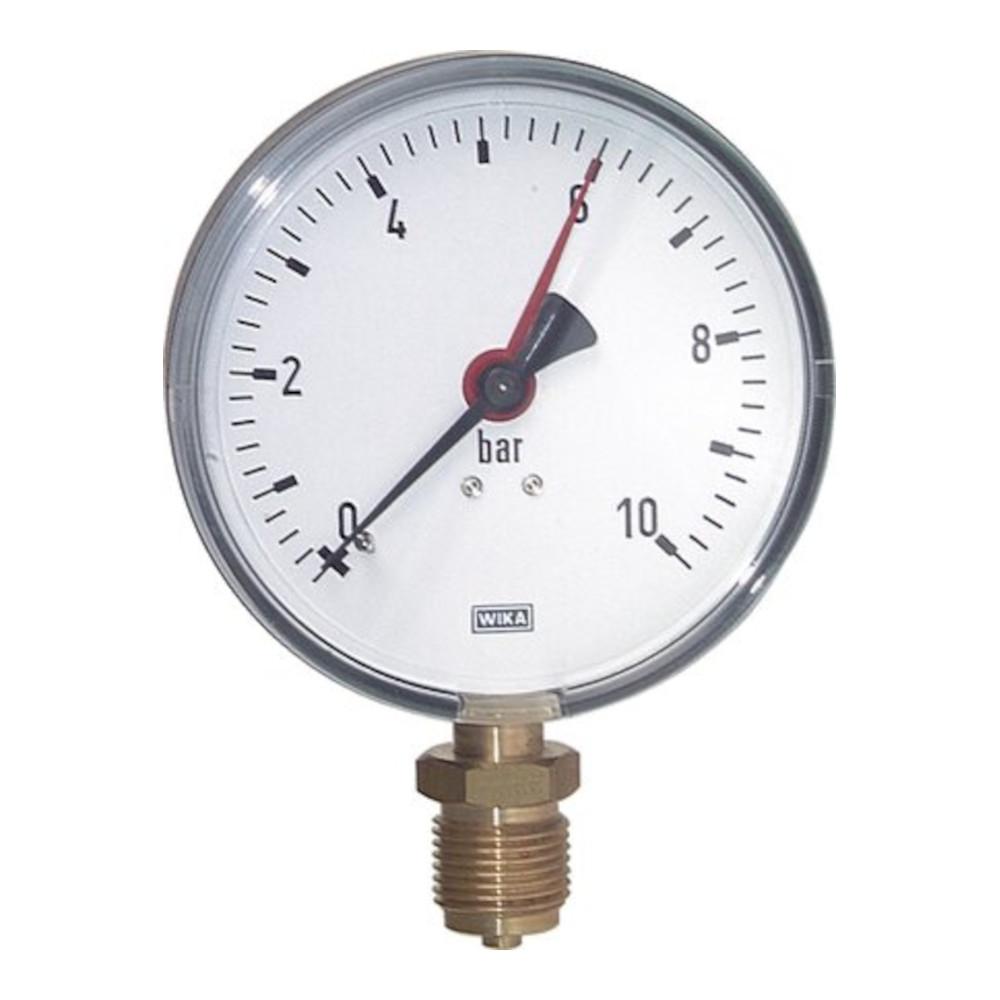

- The robust Bourdon tube pressure gauge has been specially developed for use in demanding industrial environments.
- It is used, for example, in the chemical industry, in mechanical engineering, and in heating and ventilation systems.
- The vertical pressure gauge with a diameter of 160 mm measures pressures in the range from -1 to 15 bar and is suitable for use in industrial pneumatic and hydraulic applications.
- It features a robust plastic housing, a clear plastic viewing window and a G 1/2" lower connection, which makes it easy to install.
- The measuring device has an easy-to-read scale and is designed for standard environments with normal mechanical loads.
- Diameter – 160 mm
- Display range - -1 to 15 bar
- Scale division - 0.5 bar
- Accuracy class - 1.6
- Design – without marking pointer
- Material – black plastic
- Measuring system and connection – copper alloy
- Viewing window – crystal-clear plastic
- Connection thread - G 1/2" (with centring pin for profile sealing ring)
- Temperature range: -20 to +60 °C
- Protection class - IP 42
- WIKA Type 111.10
