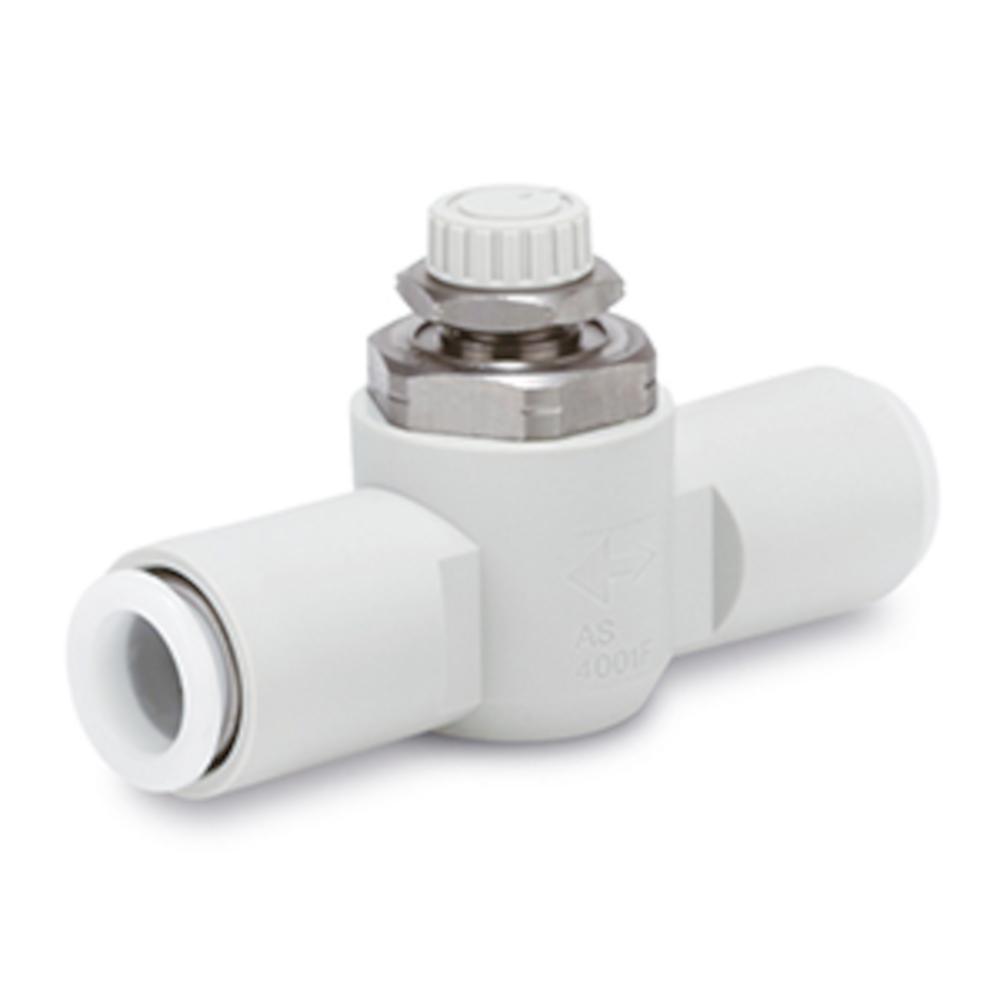

Throttle check valve AS-FG – stainless steel – hose outer diameter 4 to 12 mm – max. 1.0 MPa – price per piece
| From € 11,50 |
| Price incl. VAT |
| plus € 29,00 shipping costs |
Do you have any questions?
We would like to assist you!
We would like to assist you!
Product Description
- The AS-FG throttle check valve has been specially designed for the food industry, chemical industry, salt and water plants, etc.
- It is used in pneumatic applications where precise control of the air flow is required.
- The use of corrosion-resistant materials also makes it suitable for applications with high humidity or aggressive media.
- The AS-FG throttle check valve consists of a stainless steel (SUS303) housing with an integrated plug connection.
- It has an adjustable needle with up to ten turns for precise flow regulation.
- The direction of flow is marked on the housing.
- Housing material – PBT / stainless steel SUS303
- Material O-ring, seal – NBR
- Ambient and media temperature - 5 to 60°C
- Needle adjustment range – 10 turns (8 turns for size M5)
- Test pressure – 1.5 MPa
- max. operating pressure - 1.0 MPa
- max. operating pressure - 0.1 MPa
- Volume flow - 100 to 1390 l/min (ANR)
- Height – 21.4 to 52.1 mm
- Length - 39.2 to 82 mm
- Width - 10 to 26.5 mm
- Weight - 7 to 40 g
- Price per unit
Versions: (12)
Item No.: 202800006913
Type
| Hose outer diameter | 4 mm |
| Volume flow | 100 l/min |
| Part no. | 00006913 |
| Type | AS1001FG-04 |
Item No.: 202800006914
Type
| Hose outer diameter | 6 mm |
| Volume flow | 100 l/min |
| Part no. | 00094696 |
| Type | AS1001FG-06 |
Item No.: 202800006915
Type
| Hose outer diameter | 4 mm |
| Volume flow | 130 l/min |
| Part no. | 00007074 |
| Type | AS2001FG-04 |
Item No.: 202800006916
Type
| Hose outer diameter | 6 mm |
| Volume flow | 230 l/min |
| Part no. | 00007078 |
| Type | AS2001FG-06 |
Item No.: 202800006917
Type
| Hose outer diameter | 6 mm |
| Volume flow | 290 l/min |
| Part no. | 00221987 |
| Type | AS2051FG-06 |
Item No.: 202800006918
Type
| Hose outer diameter | 8 mm |
| Volume flow | 460 l/min |
| Part no. | 00007098 |
| Type | AS2051FG-08 |
Item No.: 202800006919
Type
| Hose outer diameter | 6 mm |
| Volume flow | 420 l/min |
| Part no. | 00007501 |
| Type | AS3001FG-06 |
Item No.: 202800006920
Type
| Hose outer diameter | 8 mm |
| Volume flow | 660 l/min |
| Part no. | 00007505 |
| Type | AS3001FG-08 |
Item No.: 202800006921
Type
| Hose outer diameter | 10 mm |
| Volume flow | 920 l/min |
| Part no. | 00007508 |
| Type | AS3001FG-10 |
Item No.: 202800006922
Type
| Hose outer diameter | 12 mm |
| Volume flow | 920 l/min |
| Part no. | 00139475 |
| Type | AS3001FG-12 |
Item No.: 202800006923
Type
| Hose outer diameter | 10 mm |
| Volume flow | 1050 l/min |
| Part no. | 00204596 |
| Type | AS4001FG-10 |
Item No.: 202800006924
Type
| Hose outer diameter | 12 mm |
| Volume flow | 1390 l/min |
| Part no. | 00222024 |
| Type | AS4001FG-12 |
