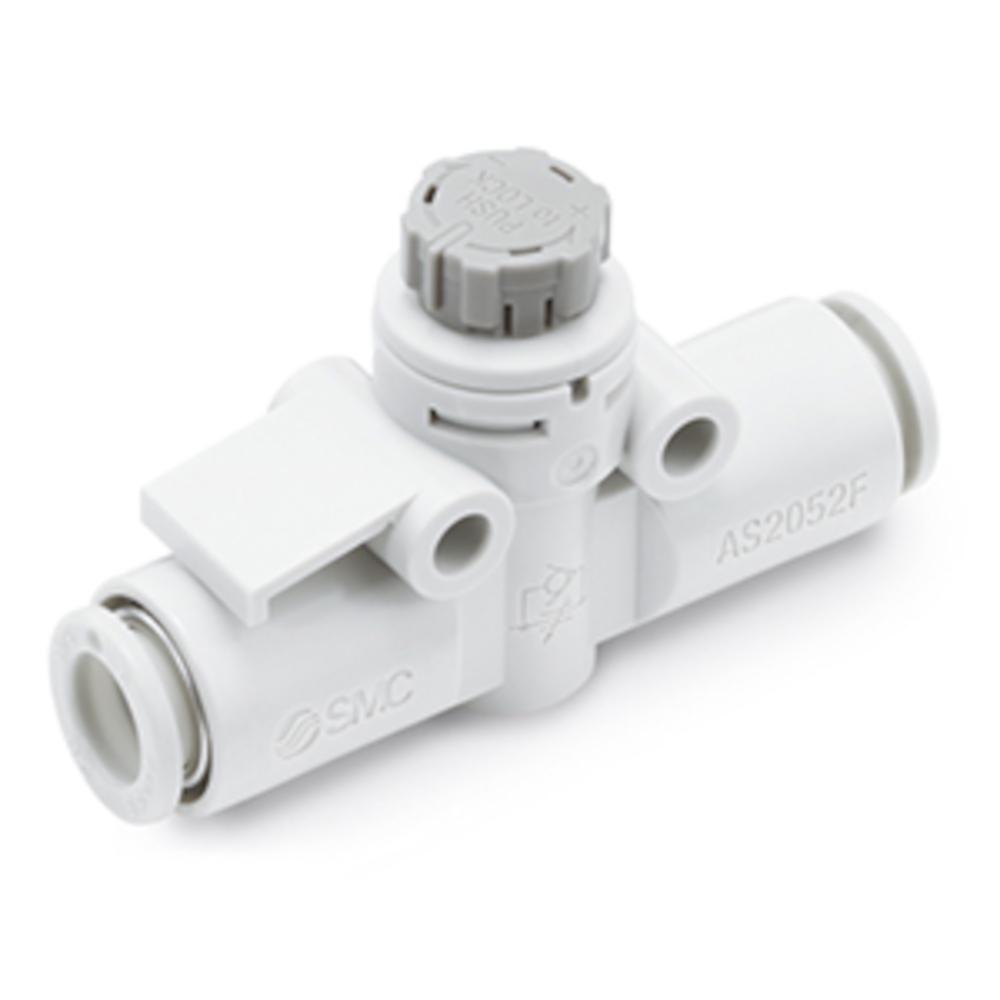

Throttle check valve AS002-A – PBT/brass – hose outer diameter 4 to 12 mm – with pressure lock – price per piece
| From € 18,13 |
| Price incl. VAT |
| plus € 29,00 shipping costs |
Do you have any questions?
We would like to assist you!
We would like to assist you!
Product Description
- The AS*2F-A throttle check valve is used for precise air flow regulation in pneumatic control systems, e.g. in blow air applications.
- It is suitable for installation in control panels with an optional switch panel adapter and is compatible with polyamide, soft polyamide, polyurethane and fluoropolymer hoses.
- The AS*2F-A throttle check valve has a plug connection on both sides, an enlarged, smooth-running adjustment knob for precise fine dosing and a user-friendly pressure lock.
- The metal parts are made of brass.
- Its compact design makes it approx. 27% lighter than previous models.
- The design with chemically nickel-plated brass parts ensures high flow reproducibility and mechanical stability.
- Several throttle check valves can be easily grouped together and fastened together.
- The valve also has four mounting options: direct, bracket, L-mounting element, DIN rail and a type plate for attaching an identification label.
- Valve body material – PBT/brass, chemically nickel-plated
- Material adjustment knob – POM
- Material Needle, valve seat, needle guide – brass, chemically nickel-plated
- Ambient and media temperature - -5 to 60°C (no freezing)
- Test pressure – 1.5 MPa
- max. operating pressure - 1.0 MPa
- max. operating pressure - 0.1 MPa
- suitable hose material – polyamide, soft polyamide, polyurethane, FEP, PFA
- Adjustment knob diameter – 9.4 to 18.8 mm
- Height – 23 to 51.3 mm
- Length - 37.6 to 81.3 mm
- Width - 10.1 to 26.2 mm
- Weight - 4 to 42 g
- Price per unit
Versions: (12)
Item No.: 202801451746
Type
| Size | M5 Standard |
| Hose outer diameter | 4 mm |
| Part no. | 01451746 |
| Type | AS1002F-04A |
Item No.: 202801451747
Type
| Size | M5 Standard |
| Hose outer diameter | 6 mm |
| Part no. | 01454350 |
| Type | AS1002F-06A |
Item No.: 202801451748
Type
| Size | 1/8 Standard |
| Hose outer diameter | 4 mm |
| Part no. | 01454358 |
| Type | AS2002F-04A |
Item No.: 202801451749
Type
| Size | 1/8 Standard |
| Hose outer diameter | 6 mm |
| Part no. | 01454359 |
| Type | AS2002F-06A |
Item No.: 202801451750
Type
| Size | 1/4 standard |
| Hose outer diameter | 6 mm |
| Part no. | 01493919 |
| Type | AS2052F-06A |
Item No.: 202801451751
Type
| Size | 1/4 standard |
| Hose outer diameter | 8 mm |
| Part no. | 01454356 |
| Type | AS2052F-08A |
Item No.: 202801451752
Type
| Size | 3/8 standard |
| Hose outer diameter | 6 mm |
| Part no. | 01547146 |
| Type | AS3002F-06A |
Item No.: 202801451753
Type
| Size | 3/8 standard |
| Hose outer diameter | 8 mm |
| Part no. | 01454360 |
| Type | AS3002F-08A |
Item No.: 202801451754
Type
| Size | 3/8 standard |
| Hose outer diameter | 10 mm |
| Part no. | 01454362 |
| Type | AS3002F-10A |
Item No.: 202801451755
Type
| Size | 3/8 standard |
| Hose outer diameter | 12 mm |
| Part no. | 01547156 |
| Type | AS3002F-12A |
Item No.: 202801451756
Type
| Size | 1/2 Standard |
| Hose outer diameter | 10 mm |
| Part no. | 01546234 |
| Type | AS4002F-10A |
Item No.: 202801451757
Type
| Size | 1/2 Standard |
| Hose outer diameter | 12 mm |
| Part no. | 01546236 |
| Type | AS4002F-12A |
