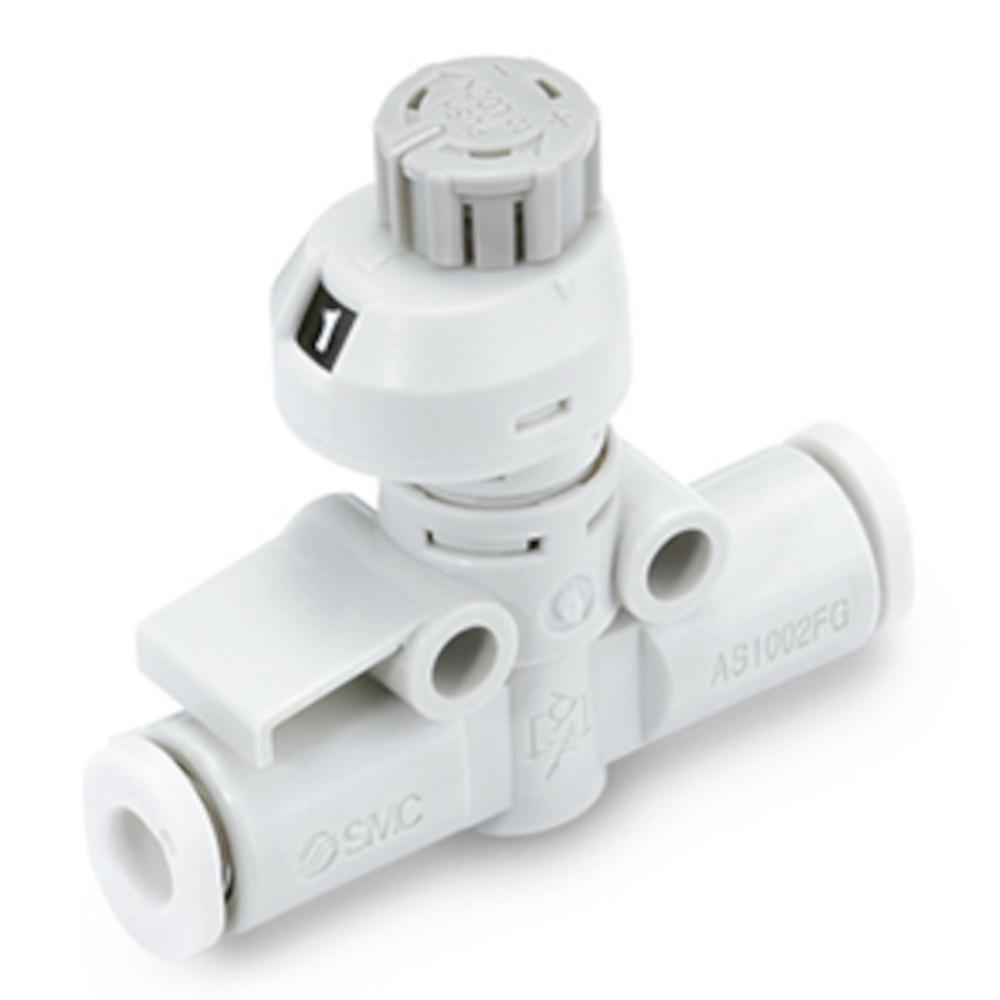

Throttle check valve AS002FSG – PBT/stainless steel – Hose outer diameter 4 to 12 mm – With numerical display – Price per piece
| From € 28,53 |
| Price incl. VAT |
| plus € 29,00 shipping costs |
Do you have any questions?
We would like to assist you!
We would like to assist you!
Product Description
- The AS*2F-A throttle check valve is used for precise air volume regulation in pneumatic control systems, e.g. in blow air applications.
- It is suitable for installation in control panels with an optional switch panel adapter and is compatible with polyamide, soft polyamide, polyurethane and fluoropolymer hoses.
- The stainless steel valve has been specially designed for the food industry, chemical industry and salt and water plants.
- The AS*2FSG throttle check valve has a plug connection on both sides, an enlarged, smooth-running adjustment knob for precise fine adjustment and a digital display.
- The metal parts are made of stainless steel.
- Its compact design makes it approx. 27% lighter than previous models.
- The design with chemically nickel-plated brass parts ensures high flow reproducibility and mechanical stability.
- Several throttle check valves can be easily grouped together and fastened together.
- The valve also has four mounting options: direct, bracket, L-mounting element, DIN rail and a type plate for attaching an identification label.
- Valve body material – PBT / stainless steel
- Material adjustment knob – POM
- Needle material – PBT
- Needle guide material – stainless steel
- Seal material, O-ring – NBR
- Material display gear - POM
- Medium - Compressed air
- Ambient and media temperature - -5 to 60°C (no freezing)
- Test pressure – 1.5 MPa
- max. operating pressure - 1.0 MPa
- max. operating pressure - 0.1 MPa
- suitable hose material – polyamide, soft polyamide, polyurethane, FEP, PFA
- Adjustment knob diameter – 9.4 to 18.8 mm
- Height – 33.9 to 64.3 mm
- Length - 37.6 to 81.3 mm
- Width - 13.6 to 26 mm
- Weight - 5.5 to 47.9 g
- Price per unit
Versions: (12)
| Article No. | Size | Hose outer diameter | Part no. | Type | Price incl. VAT | |||||
|---|---|---|---|---|---|---|---|---|---|---|
|
202801573063 | M5 Standard | 4 mm | 01573063 | AS1002FSG-04 |
|
||||
|
||||||||||
|
202801573064 | M5 Standard | 6 mm | 01573064 | AS1002FSG-06 |
|
||||
|
||||||||||
|
202801573065 | 1/8 Standard | 4 mm | 01573067 | AS2002FSG-04 |
|
||||
|
||||||||||
|
202801573066 | 1/8 Standard | 6 mm | 01573068 | AS2002FSG-06 |
|
||||
|
||||||||||
|
202801573067 | 1/4 standard | 6 mm | 01519010 | AS2052FSG-06 |
|
||||
|
||||||||||
|
202801573068 | 1/4 standard | 8 mm | 01571754 | AS2052FSG-08 |
|
||||
|
||||||||||
|
202801573069 | 3/8 standard | 6 mm | 01573072 | AS3002FSG-06 |
|
||||
|
||||||||||
|
202801573070 | 3/8 standard | 8 mm | 01525222 | AS3002FSG-08 |
|
||||
|
||||||||||
|
202801573071 | 3/8 standard | 10 mm | 01519013 | AS3002FSG-10 |
|
||||
|
||||||||||
|
202801573072 | 3/8 standard | 12 mm | 01573076 | AS3002FSG-12 |
|
||||
|
||||||||||
|
202801573073 | 1/2 Standard | 10 mm | 01573077 | AS4002FSG-10 |
|
||||
|
||||||||||
|
202801573074 | 1/2 Standard | 12 mm | 01519019 | AS4002FSG-12 |
|
||||
|
||||||||||
