Throttle check valve AS201F – brass/PBT – max. 10 bar – hose outer diameter 2 to 12 mm – thread M3 to R 1/2" – price per piece
| From € 19,03 |
| Price incl. VAT |
| plus € 29,00 shipping costs |
Do you have any questions?
We would like to assist you!
We would like to assist you!
Product Description
- The AS201F throttle check valve controls the supply air to pneumatic cylinders, especially in systems with limited installation space and high connection density.
- It is used in assembly automation, packaging machines, special machine construction and industrial handling systems.
- The valve is ideal for dynamic applications in confined installation conditions and stable process control.

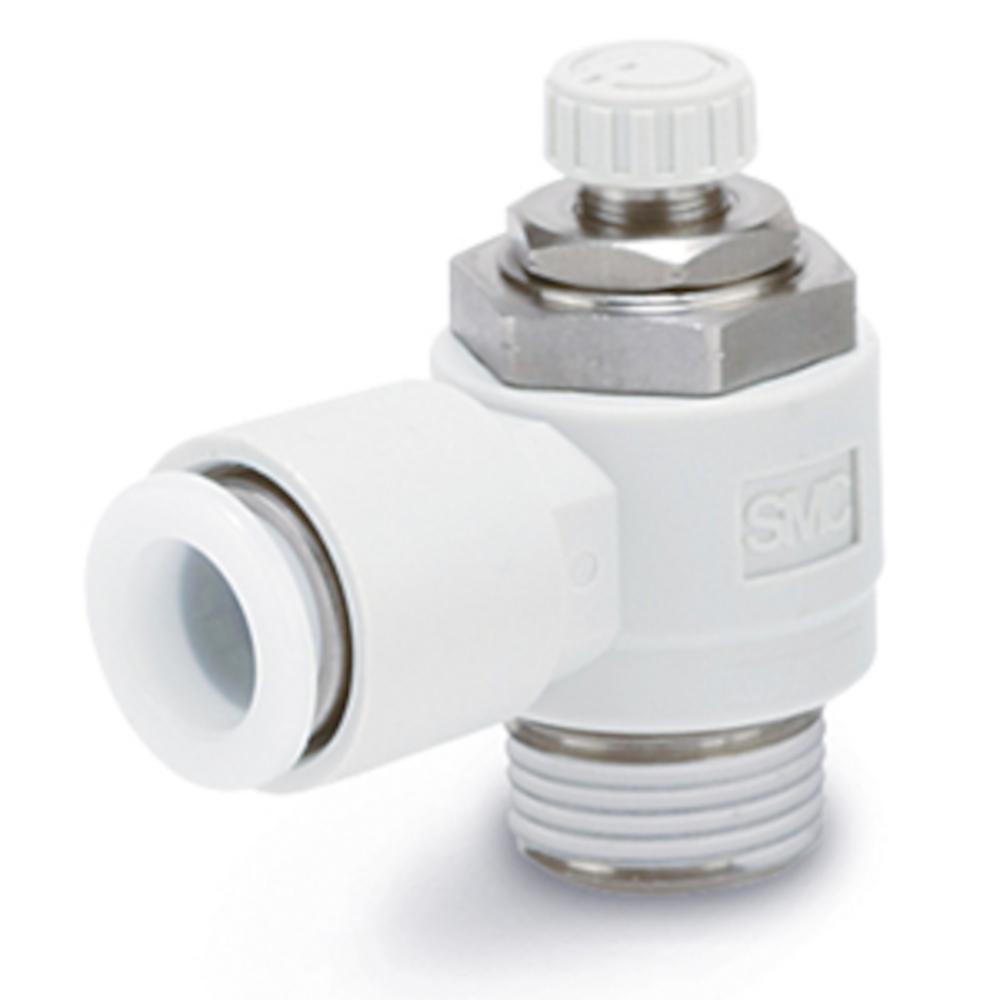

- The AS201F exhaust air-controlled throttle check valve is equipped with a space-saving angle connection and direct plug connection.
- It also features a lightweight and compact housing with a labelling field.
- The design with nickel-plated brass components and optimised needle ensures precise adjustment in a compact installation space.
- The integrated pressure lock prevents accidental adjustment during operation.
- Several throttle check valves can be easily grouped together and fastened together.
- Material of housing A and rotary knob – PBT
- Material Housing B, adjustment needle and needle guide – brass, chemically nickel-plated
- Seal material – HNBR, NBR, POM/stainless steel
- Medium - Compressed air
- Ambient and media temperature - -5 to 60°C (no freezing)
- Test pressure – 1.5 MPa (for hose Ø 2 mm – 1.05 MPa)
- max. operating pressure - 1.0 MPa (with hose Ø 2 mm - 0.7 MPa)
- max. operating pressure - 0.1 MPa
- Needle adjustment range – 10 turns (8 turns for M5 thread)
- Suitable hose materials – nylon, soft nylon, PUR
- Connection thread – M3, M5 or R 1/8" to 1/2"
- Hose outer diameter – 2 to 12 mm
- Suitable cylinder piston diameter – 2.5 to 100 mm
- Adjustable compressed air flow – 20 to 1710 l/min
- Height – 24.1 to 56.7 mm
- Width – 14.2 to 48.9 mm
- Depth - 5.5 to 28.6 mm
- Weight - 2.4 to 101 g
- Price per unit
Versions: (16)
| Article No. | Thread | Hose outer diameter | Cylinder piston Ø | Part no. | Type | Price incl. VAT | |||||
|---|---|---|---|---|---|---|---|---|---|---|---|
|
202800154522 | M3 | 2 mm | 2.5, 4, 6 mm | 00154522 | AS1201F-M3-02 |
|
||||
|
|||||||||||
|
202800154523 | M3 | 4 mm | 2.5, 4, 6 mm | 00002147 | AS1201F-M3-04 |
|
||||
|
|||||||||||
|
202800154524 | M5 | 2 mm | 6, 10, 16, 20 mm | 00205488 | AS1201F-M5-02 |
|
||||
|
|||||||||||
|
202800154525 | M5 | 4 mm | 6, 10, 16, 20 mm | 00002151 | AS1201F-M5-04 |
|
||||
|
|||||||||||
|
202800154526 | M5 | 6 mm | 6, 10, 16, 20 mm | 00002162 | AS1201F-M5-06 |
|
||||
|
|||||||||||
|
202800154527 | R 1/8" | 4 mm | 20, 25, 32 mm | 00002408 | AS2201F-01-04 |
|
||||
|
|||||||||||
|
202800154528 | R 1/8" | 6 mm | 20, 25, 32 mm | 00002418 | AS2201F-01-06 |
|
||||
|
|||||||||||
|
202800154529 | R 1/8" | 8 mm | 20, 25, 32 mm | 00007175 | AS2201F-01-08 |
|
||||
|
|||||||||||
|
202800154530 | R 1/4" | 6 mm | 20, 25, 32, 40 mm | 00002447 | AS2201F-02-06 |
|
||||
|
|||||||||||
|
202800154531 | R 1/4" | 8 mm | 20, 25, 32, 40 mm | 00002457 | AS2201F-02-08 |
|
||||
|
|||||||||||
|
202800154532 | R 1/4" | 10 mm | 20, 25, 32, 40 mm | 00007217 | AS2201F-02-10 |
|
||||
|
|||||||||||
|
202800154533 | R 3/8" | 8 mm | 40, 50, 63 mm | 00007570 | AS3201F-03-08 |
|
||||
|
|||||||||||
|
202800154534 | R 3/8" | 10 mm | 40, 50, 63 mm | 00002788 | AS3201F-03-10 |
|
||||
|
|||||||||||
|
202800154535 | R 3/8" | 12 mm | 40, 50, 63 mm | 00007598 | AS3201F-03-12 |
|
||||
|
|||||||||||
|
202800154536 | R 1/2" | 10 mm | 63, 80, 100 mm | 00007716 | AS4201F-04-10 |
|
||||
|
|||||||||||
|
202800154537 | R 1/2" | 12 mm | 63, 80, 100 mm | 00007726 | AS4201F-04-12 |
|
||||
|
|||||||||||
