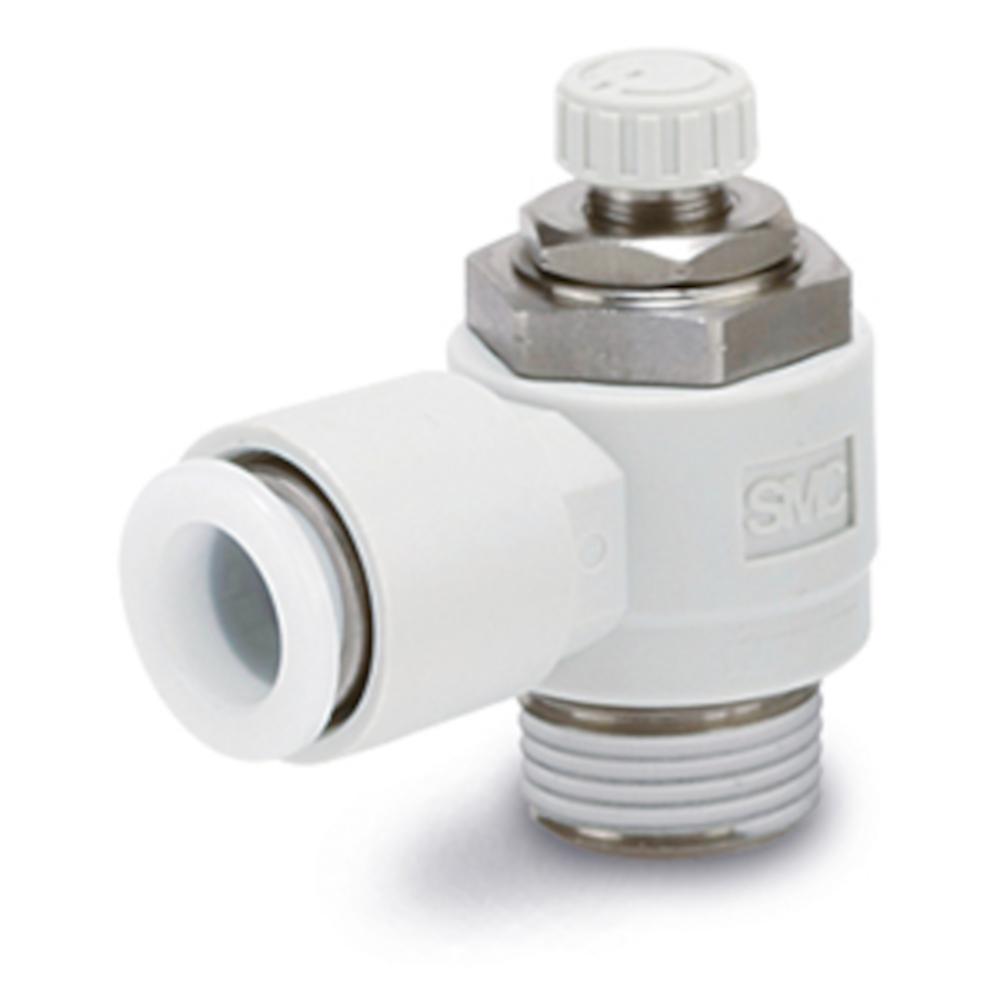

Throttle check valve AS201FG – stainless steel – max. 10 bar – hose outer diameter 4 to 12 mm – thread M5 or R 1/8" to 1/2" – price per piece
| From € 27,85 |
| Price incl. VAT |
| plus € 29,00 shipping costs |
Do you have any questions?
We would like to assist you!
We would like to assist you!
Product Description
- The AS201FG throttle check valve is used for precise control of compressed air flows in pneumatic systems, especially in automation and manufacturing technology.
- It is particularly suitable for industries with increased requirements for hygiene, corrosion resistance and low maintenance, such as the food industry, medical technology and chemical industry, as well as salt and water plants.
- Typical applications include regulating cylinder speeds and reliably retaining compressed air in safety-critical systems.
- The AS201FG throttle check valve is made of 303 stainless steel and is equipped with a plug connection.
- It offers a precisely adjustable needle throttle with up to 10 turns and is designed for demanding applications in aggressive environments.
- The angle type design ensures space-saving installation and easy flow direction control.
- Multiple throttle check valves can be easily grouped together and fastened together.
- Housing material – PBT/stainless steel 303
- Material Push button - PBT
- Material Adjustment needle, needle guide, ring and lock nut – 303 stainless steel
- Material pressure ring – POM/stainless steel
- Seal material – HNBR / NBR/SUS304 for M5 thread
- O-ring material – NBR
- Medium - Compressed air
- Test pressure – 1.5 MPa
- Max. operating pressure - 1 MPa
- Min. operating pressure - 0.1 MPa
- Needle adjustment range – 10 turns (8 turns for M5 thread)
- Ambient and media temperature - -5 to 60 °C (no freezing)
- Suitable hose materials – nylon, soft nylon, PUR, soft PUR
- Hose outer diameter – 4 to 12 mm
- Connection thread – M5 or R 1/8" to 1/2"
- Flow rate – 100 to 1710 l/min
- Height – 25.8 to 56.7 mm
- Width – 22.1 to 48.9 mm
- Depth - 9.6 to 28.6 mm
- Weight - 7 to 101 g
- Price per unit
Versions: (13)
| Article No. | Connection thread | Hose outer diameter | Flow rate | Cylinder piston Ø | Part no. | Type | Price incl. VAT | |||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
202800002178 | M5 | 4 mm | 100 l/min | 6, 10, 16, 20 mm | 00002178 | AS1201FG-M5-04 |
|
||||
|
||||||||||||
|
202800002179 | M5 | 6 mm | 100 l/min | 6, 10, 16, 20 mm | 00002180 | AS1201FG-M5-06 |
|
||||
|
||||||||||||
|
202800002180 | R 1/8" | 4 mm | 180 l/min | 20, 25, 32 mm | 00077794 | AS2201FG-01-04 |
|
||||
|
||||||||||||
|
202800002181 | R 1/8" | 6 mm | 230 l/min | 20, 25, 32 mm | 00002475 | AS2201FG-01-06 |
|
||||
|
||||||||||||
|
202800002182 | R 1/8" | 8 mm | 230 l/min | 20, 25, 32 mm | 00002477 | AS2201FG-01-08 |
|
||||
|
||||||||||||
|
202800002183 | R 1/4" | 6 mm | 390 l/min | 20, 25, 32, 40 mm | 00002481 | AS2201FG-02-06 |
|
||||
|
||||||||||||
|
202800002184 | R 1/4" | 8 mm | 460 l/min | 20, 25, 32, 40 mm | 00002485 | AS2201FG-02-08 |
|
||||
|
||||||||||||
|
202800002185 | R 1/4" | 10 mm | 460 l/min | 20, 25, 32, 40 mm | 00007268 | AS2201FG-02-10 |
|
||||
|
||||||||||||
|
202800002186 | R 3/8" | 8 mm | 790 l/min | 40, 50, 63 mm | 00202747 | AS3201FG-03-08 |
|
||||
|
||||||||||||
|
202800002187 | R 3/8" | 10 mm | 920 l/min | 40, 50, 63 mm | 00274940 | AS3201FG-03-10 |
|
||||
|
||||||||||||
|
202800002188 | R 3/8" | 12 mm | 920 l/min | 40, 50, 63 mm | 00203079 | AS3201FG-03-12 |
|
||||
|
||||||||||||
|
202800002189 | R 1/2" | 10 mm | 1580 l/min | 63, 80, 100 mm | 00237664 | AS4201FG-04-10 |
|
||||
|
||||||||||||
|
202800002190 | R 1/2" | 12 mm | 1710 l/min | 63, 80, 100 mm | 00392900 | AS4201FG-04-12 |
|
||||
|
||||||||||||
