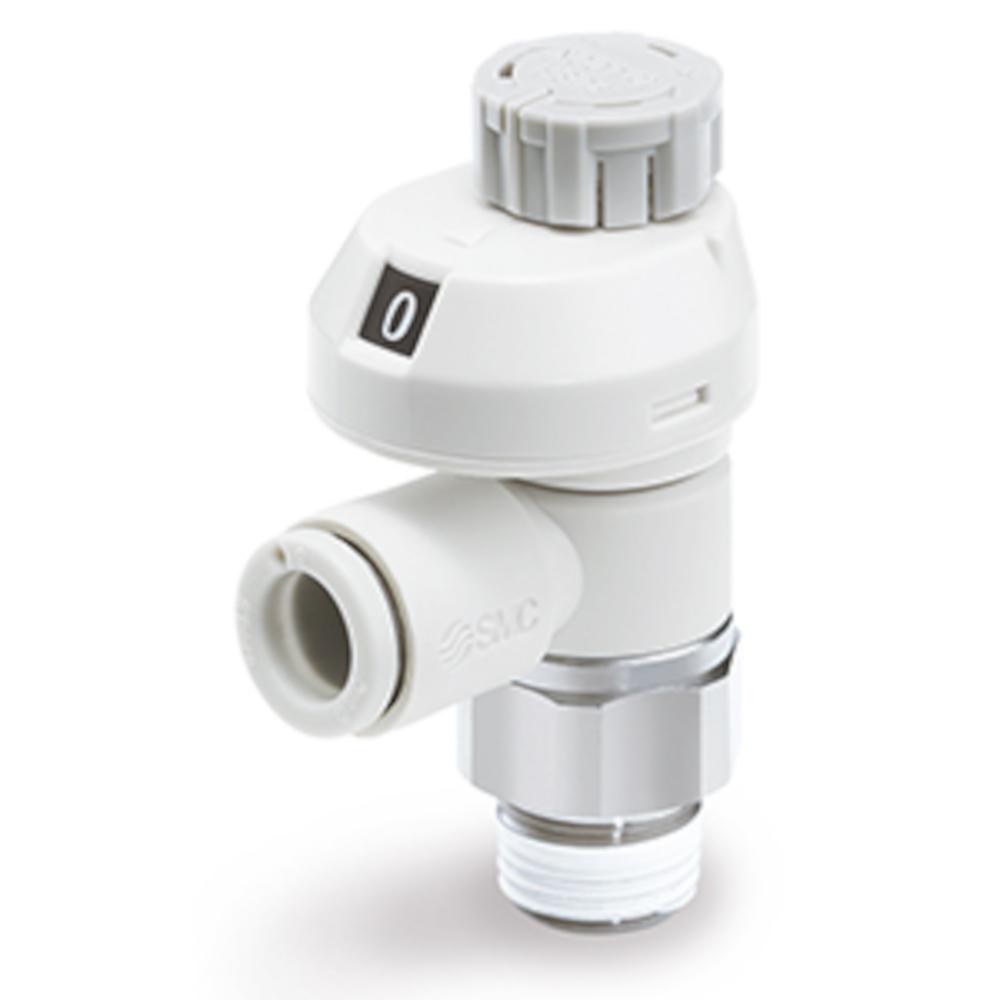

Throttle check valve AS201FS – brass/PBT – max. 10 bar – hose outer diameter 2 to 16 mm – thread M5 to R/G 1/2" – with numerical display – price per piece
| From € 24,53 |
| Price incl. VAT |
| plus € 29,00 shipping costs |
Do you have any questions?
We would like to assist you!
We would like to assist you!
Product Description
- The AS201FS throttle check valve is used for precise control of cylinder movements in panel or housing mounting.
- Typical areas of application are mechanical and plant engineering, industrial automation and packaging technology.
- It is particularly suitable for applications with high cycle rates and limited installation space.
- The AS201FS supply air-controlled throttle check valve is equipped with an integrated panel mounting bracket, a practical digital display, a swivelling plug connection and a labelling field.
- It features a captive adjustment needle that is easy to operate.
- The pressure lock reliably protects the set flow rate from unintentional adjustment.
- Several throttle check valves can be easily grouped together and fastened together.
- Housing material – PBT/brass, chemically nickel-plated
- Material rotary knob – POM
- Needle material – PBT
- Needle guide material – brass, chemically nickel-plated
- Material flap, gear, indicator gear - POM
- Seal material – HNBR, NBR/stainless steel, NBR
- O-ring material – NBR
- Medium – compressed air
- Test pressure – 1.5 MPa
- Max. operating pressure - 1 MPa
- Min. operating pressure - 0.1 MPa
- Ambient and media temperature - -5 to 60 °C (no freezing)
- Suitable hose materials – polyamide, soft polyamide, polyurethane, FEP, PFA
- Hose outer diameter – 2 to 16 mm
- Connection thread – M5 or R/G 1/8" to 1/2"
- Flow rate – 100 to 1710 l/min
- Height – 36.5 to 64.1 mm
- Width – 20.3 to 47.7 mm
- Depth - 13.6 to 26 mm
- Weight - 7 to 68 g
- Price per unit
Versions: (27)
| Article No. | Connection thread | Hose outer diameter | Part no. | Type | Price incl. VAT | |||||
|---|---|---|---|---|---|---|---|---|---|---|
|
202801095469 | M5 | 2 mm | 01095469 | AS1201FS-M5-02 |
|
||||
|
||||||||||
|
202801095470 | M5 | 4 mm | 01057933 | AS1201FS-M5-04 |
|
||||
|
||||||||||
|
202801095471 | M5 | 6 mm | 01057934 | AS1201FS-M5-06 |
|
||||
|
||||||||||
|
202801095472 | R 1/8" | 4 mm | 01095475 | AS2201FS-01-04 |
|
||||
|
||||||||||
|
202801095478 | G 1/8" | 4 mm | 01282574 | AS2201FS-G01-04 |
|
||||
|
||||||||||
|
202801095473 | R 1/8" | 6 mm | 01095476 | AS2201FS-01-06 |
|
||||
|
||||||||||
|
202801095479 | G 1/8" | 6 mm | 01199799 | AS2201FS-G01-06 |
|
||||
|
||||||||||
|
202801095474 | R 1/8" | 8 mm | 01095477 | AS2201FS-01-08 |
|
||||
|
||||||||||
|
202801095480 | G 1/8" | 8 mm | 01282594 | AS2201FS-G01-08 |
|
||||
|
||||||||||
|
202801095475 | R 1/4" | 6 mm | 01095479 | AS2201FS-02-06 |
|
||||
|
||||||||||
|
202801095481 | G 1/4" | 6 mm | 01207022 | AS2201FS-G02-06 |
|
||||
|
||||||||||
|
202801095476 | R 1/4" | 8 mm | 01095480 | AS2201FS-02-08 |
|
||||
|
||||||||||
|
202801095482 | G 1/4" | 8 mm | 01202339 | AS2201FS-G02-08 |
|
||||
|
||||||||||
|
202801095477 | R 1/4" | 10 mm | 01285739 | AS2201FS-02-10 |
|
||||
|
||||||||||
|
202801095483 | G 1/4" | 10 mm | 01207024 | AS2201FS-G02-10 |
|
||||
|
||||||||||
|
202801095484 | R 3/8" | 8 mm | 01095489 | AS3201FS-03-08 |
|
||||
|
||||||||||
|
202801095487 | G 3/8" | 8 mm | 01222732 | AS3201FS-G03-08 |
|
||||
|
||||||||||
|
202801095485 | R 3/8" | 10 mm | 01261189 | AS3201FS-03-10 |
|
||||
|
||||||||||
|
202801095488 | G 3/8" | 10 mm | 01271040 | AS3201FS-G03-10 |
|
||||
|
||||||||||
|
202801095486 | R 3/8" | 12 mm | 01294357 | AS3201FS-03-12 |
|
||||
|
||||||||||
|
202801095489 | G 3/8" | 12 mm | 01294361 | AS3201FS-G03-12 |
|
||||
|
||||||||||
|
202801095490 | R 1/2" | 10 mm | 01095492 | AS4201FS-04-10 |
|
||||
|
||||||||||
|
202801095493 | G 1/2" | 10 mm | 01222731 | AS4201FS-G04-10 |
|
||||
|
||||||||||
|
202801095491 | R 1/2" | 12 mm | 01284582 | AS4201FS-04-12 |
|
||||
|
||||||||||
|
202801095494 | G 1/2" | 12 mm | 01243688 | AS4201FS-G04-12 |
|
||||
|
||||||||||
|
202801095492 | R 1/2" | 16 mm | 01371188 | AS4201FS-04-16 |
|
||||
|
||||||||||
|
202801095495 | G 1/2" | 16 mm | 01243689 | AS4201FS-G04-16 |
|
||||
|
||||||||||
