Throttle check valve AS301F – brass/PBT – max. 10 bar – hose outer diameter 4 to 12 mm – thread M3 to R 1/2" – price per piece
| From € 19,54 |
| Price incl. VAT |
| plus € 29,00 shipping costs |
Do you have any questions?
We would like to assist you!
We would like to assist you!
Product Description
- The AS301F throttle check valve controls the supply air to pneumatic cylinders, especially in systems with limited installation space and high connection density.
- It is used in assembly automation, packaging machines, special machine construction and industrial handling systems.
- The valve is ideal for dynamic applications in confined installation conditions and stable process control.

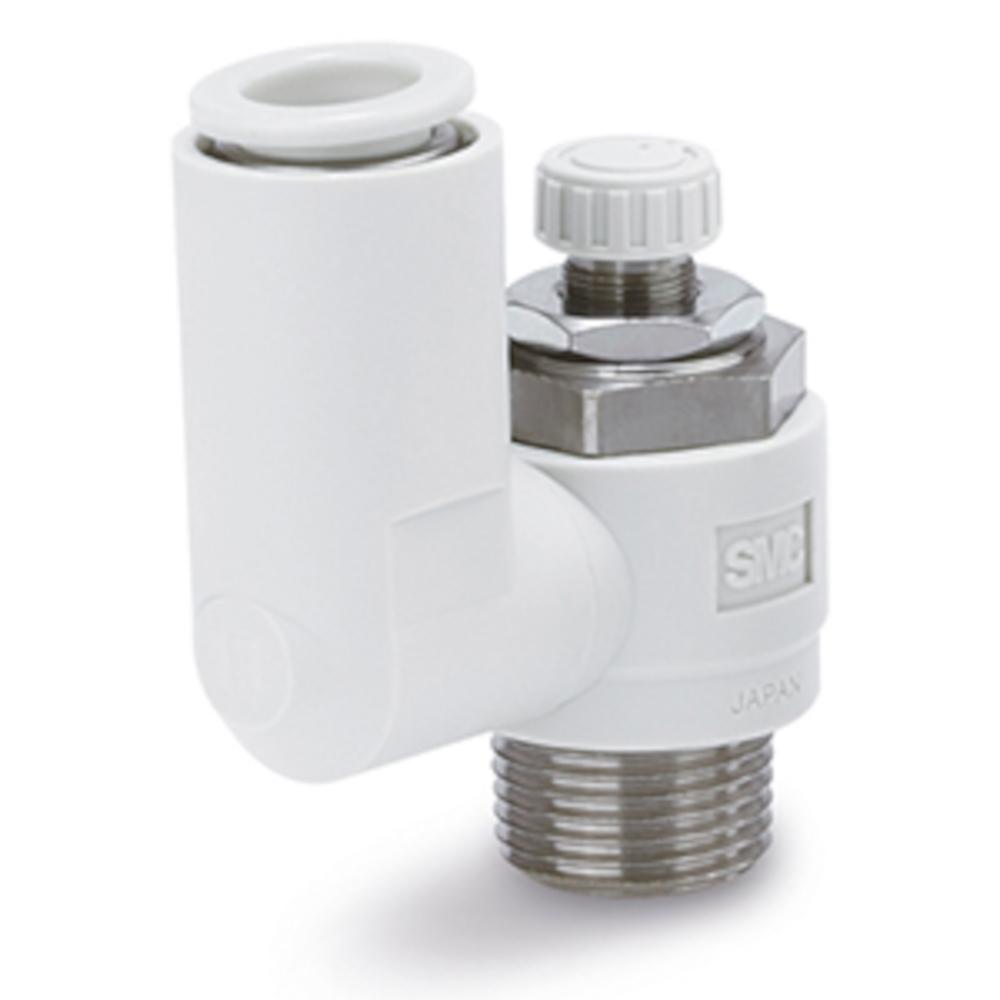

- The AS301F exhaust air-controlled throttle check valve is equipped with a space-saving angle connection and direct plug connection.
- It also features a lightweight and compact housing with a labelling field.
- The design with nickel-plated brass components and optimised needle ensures precise adjustment in a compact installation space.
- The integrated pressure lock prevents accidental adjustment during operation.
- Several throttle check valves can be easily grouped together and fastened together.
- Material of housing A and rotary knob – PBT
- Material Housing B, adjustment needle and needle guide – brass, chemically nickel-plated
- Seal material – HNBR, NBR, POM/stainless steel
- Medium - Compressed air
- Ambient and media temperature - -5 to 60°C (no freezing)
- Test pressure – 1.5 MPa
- max. operating pressure - 1.0 MPa
- max. operating pressure - 0.1 MPa
- Needle adjustment range – 10 turns (8 turns for M5 thread)
- Suitable hose materials – nylon, soft nylon, PUR
- Connection thread – M3, M5 or R 1/8" to 1/2"
- Hose outer diameter – 4 to 12 mm
- Suitable cylinder piston diameter – 2.5 to 100 mm
- Adjustable compressed air flow – 20 to 1710 l/min
- Height – 28.6 to 60.8 mm
- Width – 18.3 to 52 mm
- Depth - 7.2 to 28.6 mm
- Weight - 5 to 106 g
- Price per unit
Versions: (14)
| Article No. | Thread | Hose outer diameter | Cylinder piston Ø | Flow | Part no. | Type | Price incl. VAT | |||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
202800007009 | M3 | 4 mm | 2.5, 4, 6 mm | 20 l/min | 00007009 | AS1301F-M3-04 |
|
||||
|
||||||||||||
|
202800007010 | M5 | 4 mm | 6, 10, 16, 20 mm | 100 l/min | 00002214 | AS1301F-M5-04 |
|
||||
|
||||||||||||
|
202800007011 | M5 | 6 mm | 6, 10, 16, 20 mm | 100 l/min | 00002222 | AS1301F-M5-06 |
|
||||
|
||||||||||||
|
202800007012 | R 1/8" | 4 mm | 20, 25, 32 mm | 180 l/min | 00002605 | AS2301F-01-04 |
|
||||
|
||||||||||||
|
202800007013 | R 1/8" | 6 mm | 20, 25, 32 mm | 230 l/min | 00071892 | AS2301F-01-06 |
|
||||
|
||||||||||||
|
202800007014 | R 1/8" | 8 mm | 20, 25, 32 mm | 230 l/min | 00002613 | AS2301F-01-08 |
|
||||
|
||||||||||||
|
202800007015 | R 1/4" | 6 mm | 20, 25, 32, 40 mm | 390 l/min | 00143829 | AS2301F-02-06 |
|
||||
|
||||||||||||
|
202800007016 | R 1/4" | 8 mm | 20, 25, 32, 40 mm | 460 l/min | 00141171 | AS2301F-02-08 |
|
||||
|
||||||||||||
|
202800007017 | R 1/4" | 10 mm | 20, 25, 32, 40 mm | 460 l/min | 00260461 | AS2301F-02-10 |
|
||||
|
||||||||||||
|
202800007018 | R 3/8" | 8 mm | 40, 50, 63 mm | 790 l/min | 00146871 | AS3301F-03-08 |
|
||||
|
||||||||||||
|
202800007019 | R 3/8" | 10 mm | 40, 50, 63 mm | 920 l/min | 00412916 | AS3301F-03-10 |
|
||||
|
||||||||||||
|
202800007020 | R 3/8" | 12 mm | 40, 50, 63 mm | 920 l/min | 00259319 | AS3301F-03-12 |
|
||||
|
||||||||||||
|
202800007021 | R 1/2" | 10 mm | 63, 80, 100 mm | 1580 l/min | 00462830 | AS4301F-04-10 |
|
||||
|
||||||||||||
|
202800007022 | R 1/2" | 12 mm | 63, 80, 100 mm | 1710 l/min | 00094694 | AS4301F-04-12 |
|
||||
|
||||||||||||
