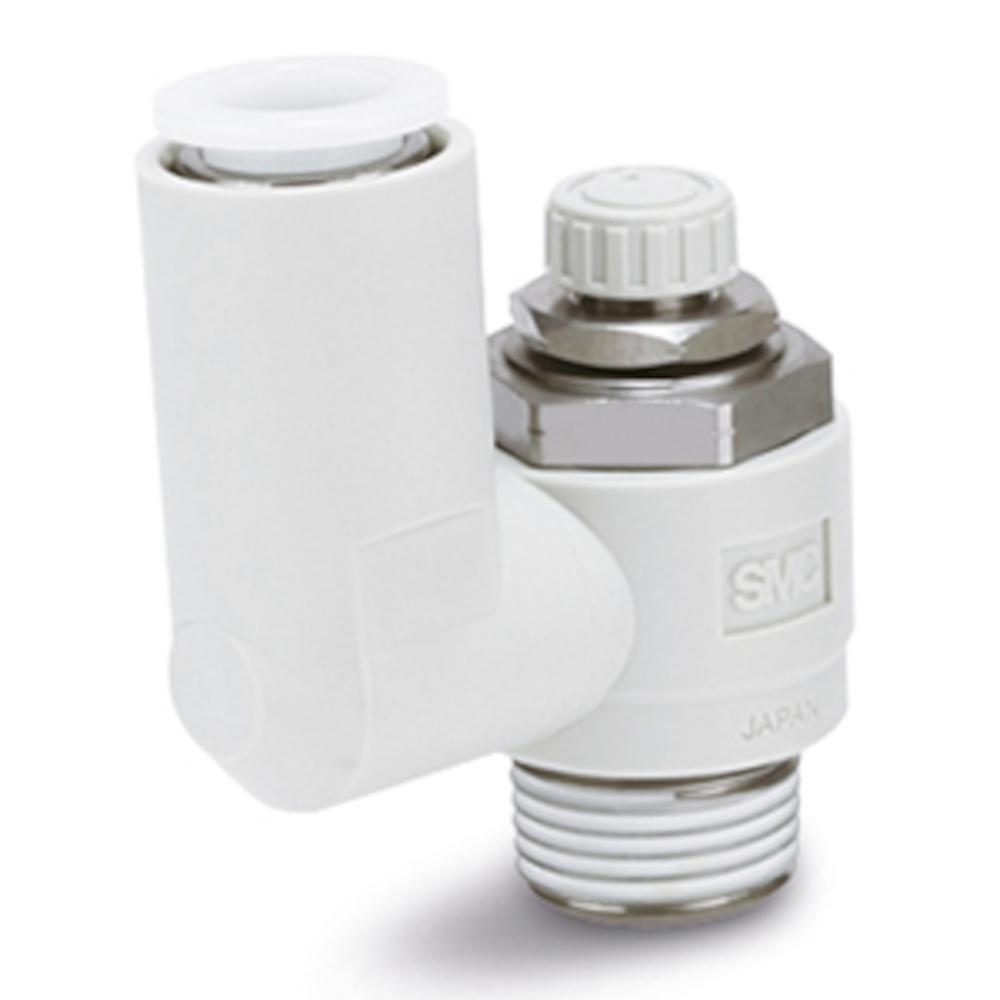

Throttle check valve AS301FG – stainless steel/PBT – max. 10 bar – hose outer diameter 4 to 12 mm – thread M5 or R 1/8" to 1/2" – price per piece
| From € 30,74 |
| Price incl. VAT |
| plus € 29,00 shipping costs |
Do you have any questions?
We would like to assist you!
We would like to assist you!
Product Description
- The AS301FG throttle check valve is used for precise control of compressed air flows in pneumatic systems, especially in automation and manufacturing technology.
- It is particularly suitable for industries with increased requirements for hygiene, corrosion resistance and low maintenance, such as the food industry, medical technology and chemical industry, as well as salt and water plants.
- Typical applications include regulating cylinder speeds and reliably retaining compressed air in safety-critical systems.
- The AS301FG throttle check valve is made of 303 stainless steel and PBT and is equipped with a plug connection.
- It offers a precisely adjustable needle throttle with up to 10 turns and is designed for demanding applications in aggressive environments.
- Multiple throttle check valves can be easily grouped together and fastened together.
- Housing material – PBT/stainless steel
- Material Push button - PBT
- Material pressure ring – POM/stainless steel
- Seal material – HNBR / NBR/SUS304 for M5 thread
- O-ring material – NBR
- Medium - Compressed air
- Test pressure – 1.5 MPa
- Max. operating pressure - 1 MPa
- Min. operating pressure - 0.1 MPa
- Needle adjustment range – 10 turns (8 turns for M5 thread)
- Ambient and media temperature - -5 to 60 °C (no freezing)
- Suitable hose materials – nylon, soft nylon, PUR, soft PUR
- Hose outer diameter – 4 to 12 mm
- Connection thread – M5 or R 1/8" to 1/2"
- Height – 28.7 to 63.4 mm
- Width - 20.3 to 48.3 mm
- Depth - 9.6 to 24 mm
- Weight - 7 to 62 g
- Price per unit
Versions: (13)
| Article No. | Connection thread | Hose outer diameter | Part no. | Type | Price incl. VAT | |||||
|---|---|---|---|---|---|---|---|---|---|---|
|
202800079993 | M5 | 4 mm | 00079993 | AS1301FG-M5-04 |
|
||||
|
||||||||||
|
202800079994 | M5 | 6 mm | 0085329 | AS1301FG-M5-06 |
|
||||
|
||||||||||
|
202800079995 | R 1/8" | 4 mm | 00007413 | AS2301FG-01-04 |
|
||||
|
||||||||||
|
202800079996 | R 1/8" | 6 mm | 00239120 | AS2301FG-01-06 |
|
||||
|
||||||||||
|
202800079997 | R 1/8" | 8 mm | 00315388 | AS2301FG-01-08 |
|
||||
|
||||||||||
|
202800079998 | R 1/4" | 6 mm | 00392932 | AS2301FG-02-06 |
|
||||
|
||||||||||
|
202800079999 | R 1/4" | 8 mm | 00392935 | AS2301FG-02-08 |
|
||||
|
||||||||||
|
202800080000 | R 1/4" | 10 mm | 00392938 | AS2301FG-02-10 |
|
||||
|
||||||||||
|
202800080001 | R 3/8" | 8 mm | 00392984 | AS3301FG-03-08 |
|
||||
|
||||||||||
|
202800080002 | R 3/8" | 10 mm | 00392988 | AS3301FG-03-10 |
|
||||
|
||||||||||
|
202800080003 | R 3/8" | 12 mm | 00392991 | AS3301FG-03-12 |
|
||||
|
||||||||||
|
202800080004 | R 1/2" | 10 mm | 00393007 | AS4301FG-04-10 |
|
||||
|
||||||||||
|
202800080005 | R 1/2" | 12 mm | 00393011 | AS4301FG-04-12 |
|
||||
|
||||||||||
