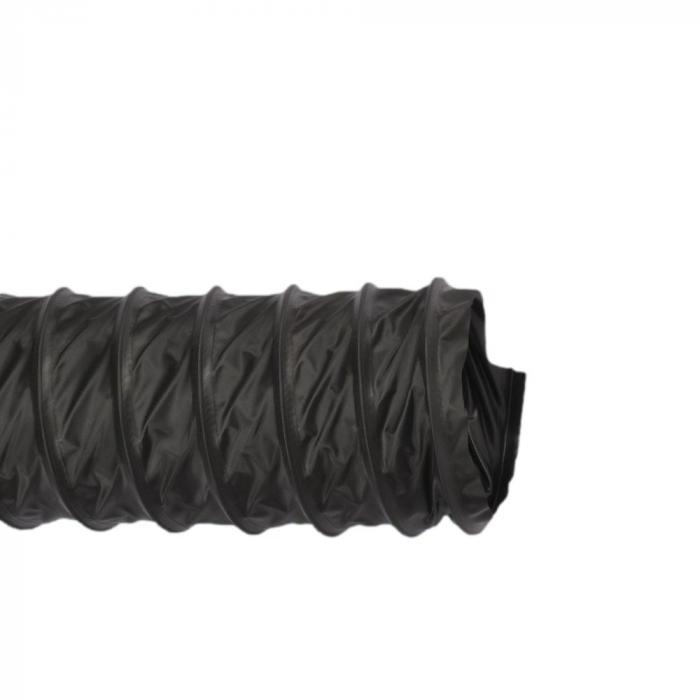

Ventilation hose - PROTAPE PVC 371 BLACK (XLD) - inner Ø 75 to 610 mm - length 5 to 10 m - price per roll
| From € 50,56 |
| Price incl. VAT |
Do you have any questions?
We would like to assist you!
We would like to assist you!
Product Description
- The PROTAPE PVC 371 BLACK (XLD) ventilation hose is ideal for transporting gases.
- The hose is used in ventilation systems, air conditioning systems or heating systems.
- The fabric-reinforced PVC ventilation hose in a super light design is highly flexible and compressible.
- The wall is flame retardant according to class 1 (Italy).
- Material - PROTAPE® film tube
- Pressure - max. 200 mm H₂O
- Air speed - max. 20 m/s
- Bend Radius - 0.6 x ID
- Inside Ø 75-76 to 610 mm
- Outside Ø - 77.6 to 614.2 mm
- Bending radius - 46 to 366 mm
- Compressible - 6:1
- Temperature range - 0°C to 75°C
- Length - 5 to 10 m
- Price per roll
Versions: (13)
Narrow down your selection
Inner Ø (inch/mm)
outer Ø
bend radius
length
| Article No. | Inner Ø (inch/mm) | outer Ø | bend radius | length | Price incl. VAT | |||||
|---|---|---|---|---|---|---|---|---|---|---|
|
709008208410 | / 82mm | 84.96mm | 49mm | 10 m |
|
||||
|
||||||||||
|
709010210510 | 4 / 100-102mm | 105mm | 61mm | 10 m |
|
||||
|
||||||||||
|
709012713010 | 5 / 125-127mm | 130mm | 76mm | 10 m |
|
||||
|
||||||||||
|
709015215510 | 6 / 150-152mm | 155.36mm | 91mm | 10 m |
|
||||
|
||||||||||
|
709018018310 | 7 / 178-180mm | 183.4mm | 108mm | 10 m |
|
||||
|
||||||||||
|
709020320610 | 8 / 200-203mm | 206.4mm | 122mm | 10 m |
|
||||
|
||||||||||
|
709030530510 | 12 / 305mm | 305.4mm | 183mm | 10 m |
|
||||
|
||||||||||
|
709031531810 | / 315mm | 318.4mm | 189mm | 10 m |
|
||||
|
||||||||||
|
709035635910 | 14 / 356mm | 359.4mm | 214mm | 10 m |
|
||||
|
||||||||||
|
709040640910 | 16 / 405-406mm | 409.4mm | 244mm | 10 m |
|
||||
|
||||||||||
|
709045746110 | 18 / 457mm | 461.16mm | 274mm | 10 m |
|
||||
|
||||||||||
|
709050851210 | 20 / 508mm | 512.2mm | 305mm | 10 m |
|
||||
|
||||||||||
|
709061061410 | 24 / 610mm | 614.2mm | 366mm | 10 m |
|
||||
|
||||||||||
