Wear-resistant polyurethane hose TUZ - Inner diameter 2.5 to 8 mm - Outer diameter 4 to 12 mm - Max. 0.8 MPa - Length 20 or 100 m - Price per roll
| From € 18,22 |
| Price incl. VAT |
| plus € 29,00 shipping costs |
Do you have any questions?
We would like to assist you!
We would like to assist you!
Product Description
- The TUZ polyurethane hose is particularly suitable for industrial applications with high mechanical stress, such as in automation, robotics, conveyor technology and assembly systems.
- Wherever cables are constantly moved or routed through protective hoses, TUZ offers reliable protection against abrasion and longer service life.
- Even in environments with tight bending radii, frequent contact or friction, the hose impresses with its durability and flexibility.
- Ideal for moving hose assemblies, machine guides and compressed air supply lines.
- The wear-resistant TUZ polyurethane hose was developed for applications with high mechanical stress.
- Made from a special polyurethane material, it offers significantly improved abrasion resistance compared to the conventional TU series, with a wear value of only 0.16 mm after 10 million cycles.
- Thanks to its flexibility, compact design and high load-bearing capacity, it is ideal for dynamic applications.
- Material - Polyurethane
- Colour - Black
- Media - Compressed air
- Ambient temperature - -20 to 60 °C
- Media temperature - -20 to 60 °C
- Operating pressure min. - -0.1 MPa
- Maximum operating pressure (at 20°C) - 0.8 MPa
- Hose outer diameter - 4 to 12 mm
- Hose inner diameter - 2.5 to 8 mm
- Roll length - 20 or 100 m
- Price per roll

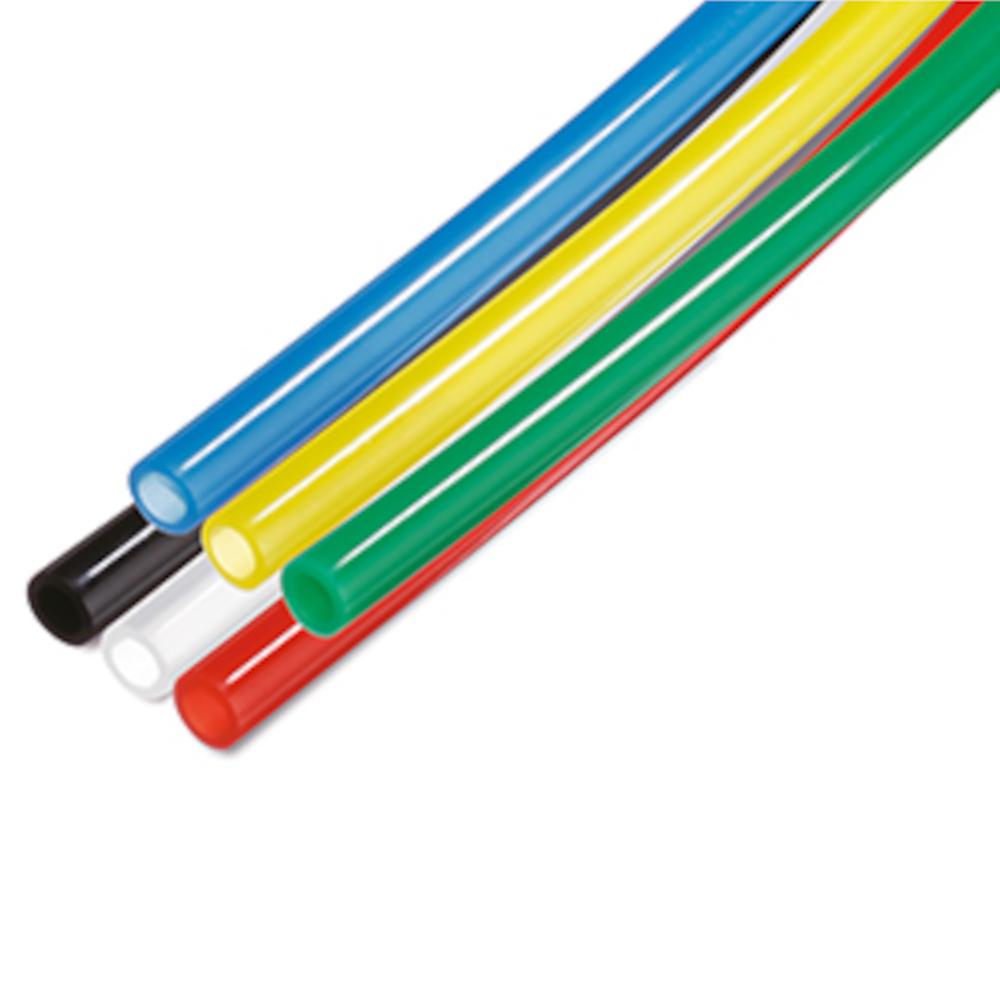

The image shows an example picture, which may differ from the original item.
Versions: (60)
Narrow down your selection
Inner diameter
Outer diameter
Bending radius
Colour
Length
| Article No. | Inner diameter | Outer diameter | Bending radius | Colour | Length | Price incl. VAT | |||||
|---|---|---|---|---|---|---|---|---|---|---|---|
|
703000525181 | 2.5 mm | 4 mm | 10 mm | black | 20 m |
|
||||
|
|||||||||||
|
703000550684 | 2.5 mm | 4 mm | 10 mm | black | 100 m |
|
||||
|
|||||||||||
|
703000535999 | 2.5 mm | 4 mm | 10 mm | white | 20 m |
|
||||
|
|||||||||||
|
703000695407 | 2.5 mm | 4 mm | 10 mm | white | 100 m |
|
||||
|
|||||||||||
|
703000652237 | 2.5 mm | 4 mm | 10 mm | red | 20 m |
|
||||
|
|||||||||||
|
703000695406 | 2.5 mm | 4 mm | 10 mm | red | 100 m |
|
||||
|
|||||||||||
|
703000525180 | 2.5 mm | 4 mm | 10 mm | blue | 20 m |
|
||||
|
|||||||||||
|
703000659085 | 2.5 mm | 4 mm | 10 mm | blue | 100 m |
|
||||
|
|||||||||||
|
703000567856 | 2.5 mm | 4 mm | 10 mm | yellow | 20 m |
|
||||
|
|||||||||||
|
703000695408 | 2.5 mm | 4 mm | 10 mm | yellow | 100 m |
|
||||
|
|||||||||||
|
703000659087 | 2.5 mm | 4 mm | 10 mm | green | 20 m |
|
||||
|
|||||||||||
|
703000659086 | 2.5 mm | 4 mm | 10 mm | green | 100 m |
|
||||
|
|||||||||||
|
703000525185 | 4 mm | 6 mm | 15 mm | black | 20 m |
|
||||
|
|||||||||||
|
703000550681 | 4 mm | 6 mm | 15 mm | black | 100 m |
|
||||
|
|||||||||||
|
703000536001 | 4 mm | 6 mm | 15 mm | white | 20 m |
|
||||
|
|||||||||||
|
703000695409 | 4 mm | 6 mm | 15 mm | white | 100 m |
|
||||
|
|||||||||||
|
703000652240 | 4 mm | 6 mm | 15 mm | red | 20 m |
|
||||
|
|||||||||||
|
703000576511 | 4 mm | 6 mm | 15 mm | red | 100 m |
|
||||
|
|||||||||||
|
703000527474 | 4 mm | 6 mm | 15 mm | blue | 20 m |
|
||||
|
|||||||||||
|
703000645447 | 4 mm | 6 mm | 15 mm | blue | 100 m |
|
||||
|
|||||||||||
|
703000567853 | 4 mm | 6 mm | 15 mm | yellow | 20 m |
|
||||
|
|||||||||||
|
703000678843 | 4 mm | 6 mm | 15 mm | yellow | 100 m |
|
||||
|
|||||||||||
|
703000644772 | 4 mm | 6 mm | 15 mm | green | 20 m |
|
||||
|
|||||||||||
|
703000541790 | 4 mm | 6 mm | 15 mm | green | 100 m |
|
||||
|
|||||||||||
|
703000527475 | 5 mm | 8 mm | 20 mm | black | 20 m |
|
||||
|
|||||||||||
|
703000535464 | 5 mm | 8 mm | 20 mm | black | 100 m |
|
||||
|
|||||||||||
|
703000535462 | 5 mm | 8 mm | 20 mm | white | 20 m |
|
||||
|
|||||||||||
|
703000535468 | 5 mm | 8 mm | 20 mm | white | 100 m |
|
||||
|
|||||||||||
|
703000535460 | 5 mm | 8 mm | 20 mm | red | 20 m |
|
||||
|
|||||||||||
|
703000535467 | 5 mm | 8 mm | 20 mm | red | 100 m |
|
||||
|
|||||||||||
|
703000527476 | 5 mm | 8 mm | 20 mm | blue | 20 m |
|
||||
|
|||||||||||
|
703000535465 | 5 mm | 8 mm | 20 mm | blue | 100 m |
|
||||
|
|||||||||||
|
703000535463 | 5 mm | 8 mm | 20 mm | yellow | 20 m |
|
||||
|
|||||||||||
|
703000535469 | 5 mm | 8 mm | 20 mm | yellow | 100 m |
|
||||
|
|||||||||||
|
703000535459 | 5 mm | 8 mm | 20 mm | green | 20 m |
|
||||
|
|||||||||||
|
703000535466 | 5 mm | 8 mm | 20 mm | green | 100 m |
|
||||
|
|||||||||||
|
703000527477 | 6.5 mm | 10 mm | 27 mm | black | 20 m |
|
||||
|
|||||||||||
|
703000535474 | 6.5 mm | 10 mm | 27 mm | black | 100 m |
|
||||
|
|||||||||||
|
703000535472 | 6.5 mm | 10 mm | 27 mm | white | 20 m |
|
||||
|
|||||||||||
|
703000535478 | 6.5 mm | 10 mm | 27 mm | white | 100 m |
|
||||
|
|||||||||||
|
703000535471 | 6.5 mm | 10 mm | 27 mm | red | 20 m |
|
||||
|
|||||||||||
|
703000535477 | 6.5 mm | 10 mm | 27 mm | red | 100 m |
|
||||
|
|||||||||||
|
703000527478 | 6.5 mm | 10 mm | 27 mm | blue | 20 m |
|
||||
|
|||||||||||
|
703000535475 | 6.5 mm | 10 mm | 27 mm | blue | 100 m |
|
||||
|
|||||||||||
|
703000535473 | 6.5 mm | 10 mm | 27 mm | yellow | 20 m |
|
||||
|
|||||||||||
|
703000535479 | 6.5 mm | 10 mm | 27 mm | yellow | 100 m |
|
||||
|
|||||||||||
|
703000535470 | 6.5 mm | 10 mm | 27 mm | green | 20 m |
|
||||
|
|||||||||||
|
703000535476 | 6.5 mm | 10 mm | 27 mm | green | 100 m |
|
||||
|
|||||||||||
|
703000535480 | 8 mm | 12 mm | 35 mm | black | 20 m |
|
||||
|
|||||||||||
|
703000535487 | 8 mm | 12 mm | 35 mm | black | 100 m |
|
||||
|
|||||||||||
|
703000535485 | 8 mm | 12 mm | 35 mm | white | 20 m |
|
||||
|
|||||||||||
|
703000535491 | 8 mm | 12 mm | 35 mm | white | 100 m |
|
||||
|
|||||||||||
|
703000535483 | 8 mm | 12 mm | 35 mm | red | 20 m |
|
||||
|
|||||||||||
|
703000535490 | 8 mm | 12 mm | 35 mm | red | 100 m |
|
||||
|
|||||||||||
|
703000535481 | 8 mm | 12 mm | 35 mm | blue | 20 m |
|
||||
|
|||||||||||
|
703000535488 | 8 mm | 12 mm | 35 mm | blue | 100 m |
|
||||
|
|||||||||||
|
703000535486 | 8 mm | 12 mm | 35 mm | yellow | 20 m |
|
||||
|
|||||||||||
|
703000535492 | 8 mm | 12 mm | 35 mm | yellow | 100 m |
|
||||
|
|||||||||||
|
703000535482 | 8 mm | 12 mm | 35 mm | green | 20 m |
|
||||
|
|||||||||||
|
703000535489 | 8 mm | 12 mm | 35 mm | green | 100 m |
|
||||
|
|||||||||||
