Item No.:
382000522671
Product Description

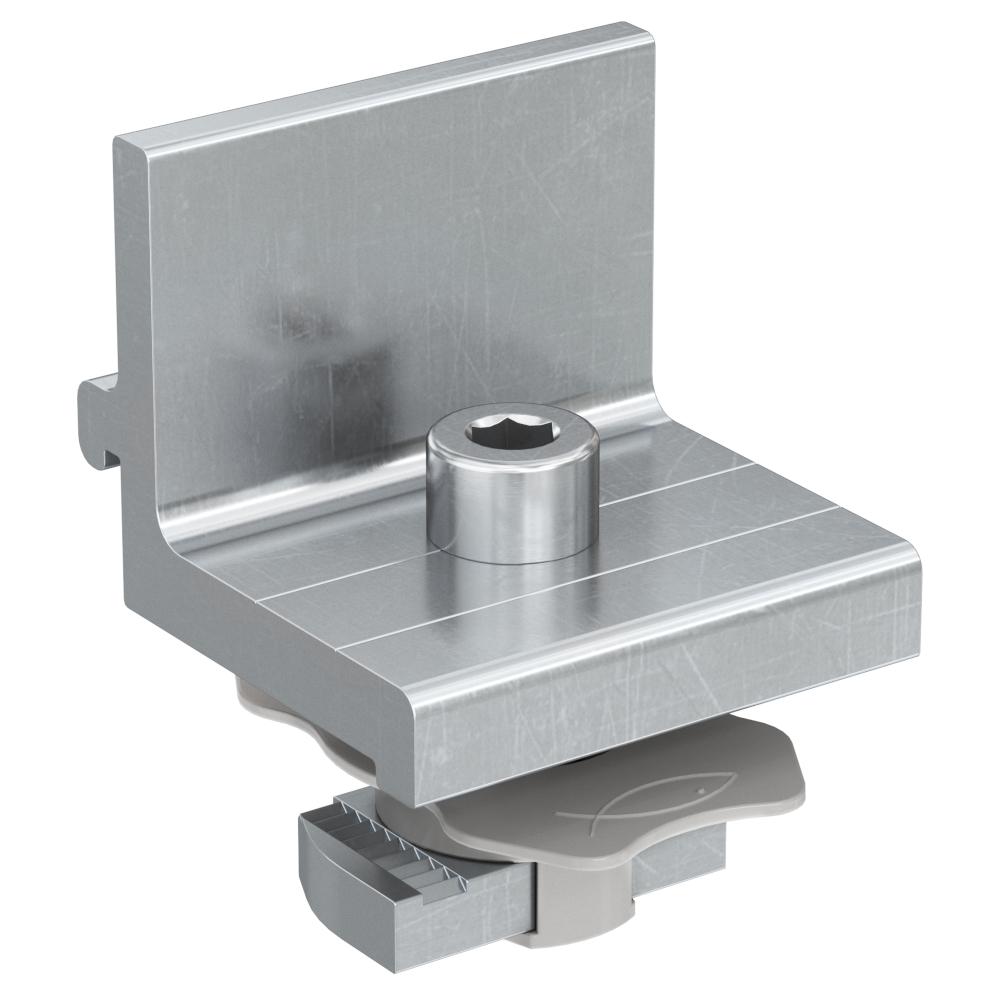

- The PXC side connector bracket is ideal for connecting two overlapping solar rails at a 90° angle to create a crossed substructure. It can be used for SolarFish and SolarMid rails.
- The PXC side connector bracket is made of AW6063 T6 aluminium alloy in accordance with EN 755-2:2013, the hammerhead nut is made of AW 6060 T66 aluminium alloy in accordance with EN 755-2:2013 and the hexagon bolt is made of A2-70 stainless steel in accordance with EN ISO. The connection within the lower profile is made using a hammerhead nut, and the connection to the upper profile is made using a joint in the side groove. The large contact surface of the PXC connection brackets increases the load-bearing capacity of the connection. As the PXC bracket is pre-assembled, no additional elements such as screws, washers or bolts are required for installation.
- Material connector – aluminium alloy AW6063 T6 in accordance with EN 755-2:2013
- Material Hexagon screw – stainless steel A2-70 in accordance with EN ISO 3506-1/2;2009
- Material of hammerhead nut – aluminium alloy AW 6060 T66 in accordance with EN 755-2:2013 and grey nylon PA 6
- Screw length - 20 mm
- Installation torque - 10 Nm
- Width - 46 mm
- Depth - 39 mm
- Height (connection holder only) – 38 mm
- Pack of 10
- Price per unit
