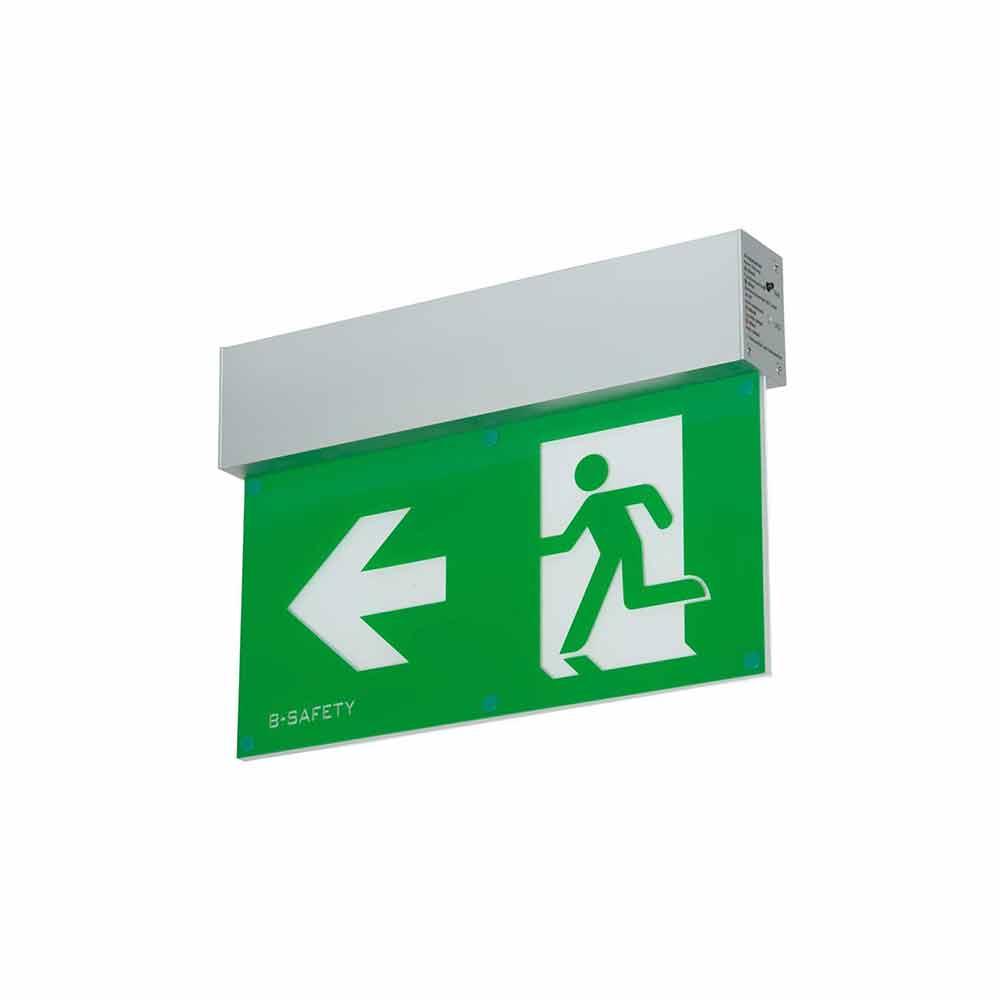

Escape sign luminaire L-LUX STANDARD - aluminum housing - single battery version or central supply - different versions
| € 4,61 |
| Price incl. VAT |
Ex stock within 4 days deliverable
Do you have any questions?
We would like to assist you!
We would like to assist you!
Item No.:
7678F558EISO
Type
| Test function | No |
| emergency light | No |
| battery pack | No |
| Area of application | Escape route sign down to the right, PVC film, TYPE E |
| Recognition distance | No |
| Mounting type | No |
| Dimensions | No |
Product Description
- The L-LUX STANDARD escape sign luminaire is ideal for use in office buildings, shops, banks, shopping centers, schools and hospitals.
- The 8 hours version is preferably suitable for use in hotels, lodging houses and homes according to DIN EN 60598-2-22, EN 1838, EN 62034, and DIN VDE 0108.
- Depending on the version, the escape sign luminaire has an automatic test function AUTOTEST, including test button, the signaling is done via a multicolor LED.
- The luminaire can be switched from continuous to standby mode.
- The scope of delivery includes a standard set of signs (emergency exit, escape route right, escape route left, escape route straight ahead) according to DIN EN ISO 7010.
- The mounting of pictograms on the plexiglass panel is done via push buttons (small adhesive foil).
- Pendulum sets are optionally available.
- The luminaire is suitable for wall mounting, ceiling mounting and pendant mounting.
- The escape sign luminaire is equipped with CE mark and ATEX test certificate.
- The manufacturer's warranty is two years.
- Material housing - aluminum
- Pictogram - plexiglass panel with one/two-sided pictogram
- Color - RAL 9006 (aluminum gray)
- Single battery version AUTOTEST function or central supply (see variant)
- for single battery version AUTOTEST
- Mains voltage - 230 V AC
- Mains power - 5.2 W
- Protection class - IP 40
- Protection class - I
- Emergency light - 1/2/3/8 hours
- Continuous/standby circuit, with switchable continuous light
- Illuminant - LED
- Detection distance - 27 m
- for central supply
- Mains voltage - 230 V AC/ 170 - 260 V DC
- Power - 2.6 W
- Protection class - IP 54
- Protection class - II
- Illuminant - LED
- Detection distance - 27 m
Including standard set of signs
Versions: (13)
Narrow down your selection
Test function
emergency light
battery pack
Area of application
Recognition distance
Mounting type
Dimensions
| Article No. | Test function | emergency light | battery pack | Area of application | Recognition distance | Mounting type | Dimensions | Price incl. VAT | |||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
|
7678BR558031 | AUTOTEST function | 1h/2h/3h/8h | LiFeo4 3.2 V/ 1.5 Ah | Single battery design | 27 m | Wall structure | 274 x 195 x 44 mm |
|
||||
|
|||||||||||||
|
|
7678BR559031 | AUTOTEST function | 1/2/3/8 hours | LiFeo4 3.2 V/1.5 Ah | Single battery design | 27 m | Ceiling structure | 274 x 213 x 40 mm |
|
||||
|
|||||||||||||
|
|
7678BR560031 | AUTOTEST function | 1/2/3/8 hours | LiFeO4 3.2 V / 1.5 Ah | Single battery design | 27 m | Pendulum mounting | 274 x 520 x 40 mm |
|
||||
|
|||||||||||||
|
|
7678BR554030 | AUTOTEST function | 1/2/3/8 hours | LiFeO4 3.2 V / 1.5 Ah | Single battery design | 27 m | Ceiling installation | 355 x 201 x 113 mm |
|
||||
|
|||||||||||||
|
|
7678BR558090 | No | No | No | central supply | 27 m | Wall construction | 274 x 195 x 44 mm |
|
||||
|
|||||||||||||
|
|
7678BR559090 | No | No | No | central supply | 27 m | Ceiling construction | 274 x 213 x 40 mm |
|
||||
|
|||||||||||||
|
|
7678BR560090 | No | No | No | central supply | 27 m | Pendant mounting | 274 x 520 x 40 mm |
|
||||
|
|||||||||||||
|
|
7678BR554090 | No | No | No | central supply | 27 m | Recessed ceiling | 355 x 201 x 113 mm |
|
||||
|
|||||||||||||
|
|
7678BR559100 | No | No | No | Wall bracket for attaching the luminaire to the wall | No | No | No |
|
||||
|
|||||||||||||
|
|
7678F558EISO | No | No | No | Escape route sign down to the right, PVC film, TYPE E | No | No | No |
|
||||
|
|||||||||||||
|
|
7678F558FISO | No | No | No | Escape route sign up left, PVC film, TYPE F | No | No | No |
|
||||
|
|||||||||||||
|
|
7678F558GISO | No | No | No | Escape route sign up to the right, PVC film, TYPE G | No | No | No |
|
||||
|
|||||||||||||
|
|
7678F558W000 | No | No | No | White pictogram film, PVC film, TYPE W | No | No | No |
|
||||
|
|||||||||||||
Ratings
No evaluation has been given
