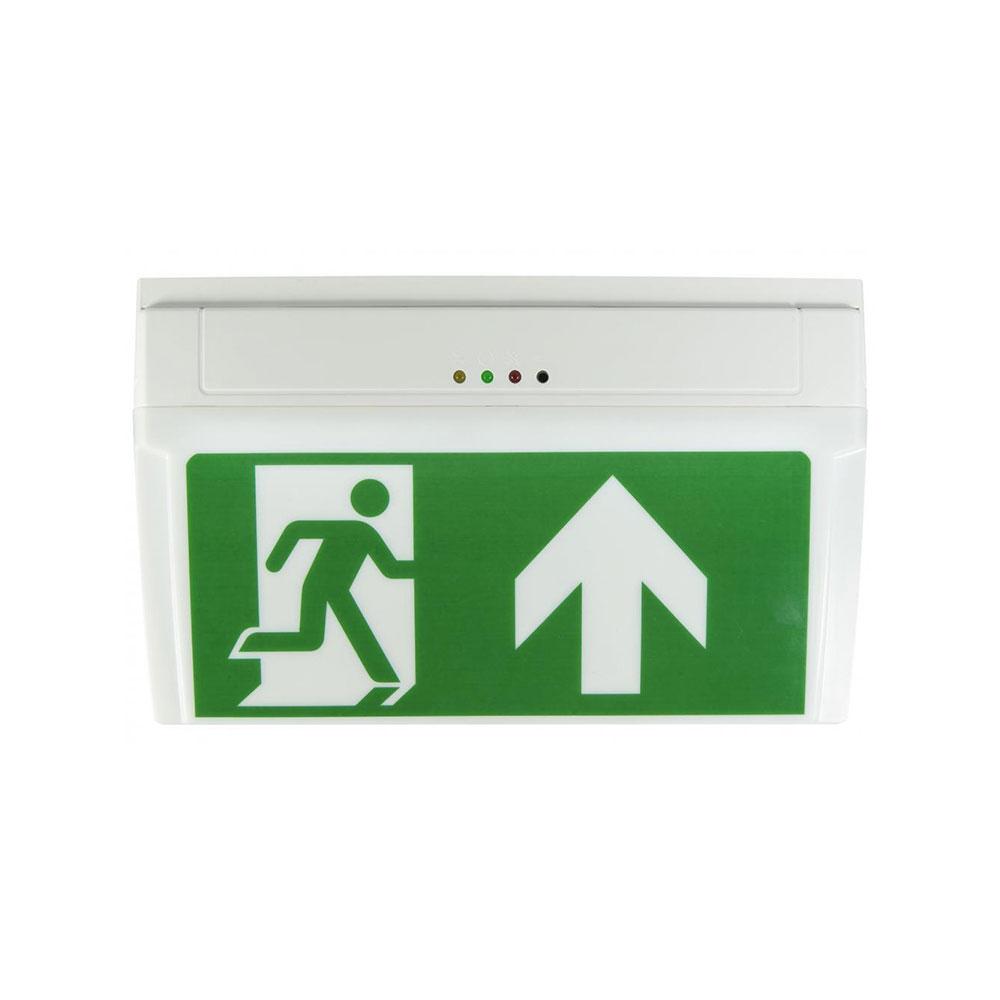

Exit sign luminaire E-LUX STANDARD - polycarbonate housing - automatic test function AUTOTEST - different versions

€ 4,61
Price incl. VAT
Ex stock within 4 days deliverable
In 6 more variations available

Do you have any questions?
We would like to assist you!
verkauf@esska.de

Item No.:
7678F530D000
Type
Area of applicationSigns for the escape route downwards to the left, PET film, TYPE D
In 6 more variations available
Product Description
  • The E-LUX STANDARD escape sign luminaire is ideal for use in meeting places, universities, office buildings, shops, banks, shopping centers, schools and hospitals in accordance with DIN EN 60598-2-22, EN 1838, EN 62034 and DIN VDE 0108.
Application
  • The luminaire has an automatic test function AUTOTEST, including a test button, signaling takes place via three colored LEDs.
  • The safety light has a permanent switch.
  • The luminaire is suitable for wall and ceiling construction.
  • The pictograms are installed on the polycarbonate cover (PET film, self-adhesive).
  • The "click mounting system" enables the luminaire to be installed quickly.
  • The tested LED service life is at least 50,000 hours (SMD LEDs).
  • The high-temperature NI-MH battery ensures a long service life.
  • The scope of delivery includes a standard set of signs (emergency exit, escape route on the right, escape route on the left, escape route straight ahead) in accordance with DIN EN ISO 7010.
  • The luminaire is equipped with the CE mark and ATEX test certificate.
  • The manufacturer's guarantee is five years (five years guarantee on the battery, seven years guarantee on the lamp).
Technical Data
  • Housing material - polycarbonate, impact-resistant, break-proof
  • Cover material - polycarbonate, opal, impact-resistant, break-proof
  • Material pictogram - PET film, self-adhesive
  • Mains voltage - 230 V AC
  • Mains power - 1.5 W.
  • Degree of protection - IP 20
  • Protection class - II
  • Emergency light - 3 hours
  • Battery - 4.8 V / 0.6 Ah
  • Single battery version
  • AUTOTEST function
  • Permanent switching
  • Light source - LED
  • Viewing distance - 22 m
  • Dimensions - 290 x 170 x 42 mm
  • Color - RAL 9003 (white)
show more...
show less...
Including standard set of signs
Versions: (7)
Narrow down your selection
Area of application
show all 7 implementations
Article No. Area of application Price incl. VAT
7678BR530030 Single battery version
€ 87,80
Price incl. VAT
7678BR530100 Installation frame for ceiling installation
€ 41,02
Price incl. VAT
7678BR530300 Pendant set 0.5 m, for pendant mounting
€ 61,53
Price incl. VAT
7678F530D000 Signs for the escape route downwards to the left, PET film, TYPE D
€ 4,61
Price incl. VAT
7678F530E000 Sign on the escape route down to the right, PET film, TYPE E
€ 4,61
Price incl. VAT
7678F530F000 Escape route sign up left, PET film, TYPE F
€ 4,61
Price incl. VAT
7678F530G000 Sign on the escape route upwards on the right, PET film, TYPE G
€ 4,61
Price incl. VAT
